Name: Inconel X750 wire N 0775024669 With Ability To Withstand Extreme Stres In Harsh Environments
Brand: Senphus
Price: 1 USD

Categories

Inconel Alloy

Brand Name:

Senphus

Model Number:

Inconel X-750/N 07750/2.4669

Certification:

ISO9001

Place of Origin:

China

MOQ:

TBD

Payment Terms:

T/T,D/P

Supply Ability:

30 Tons per day

Delivery Time:

7 days

Packaging Details:

Packed with waterproof paper or weave bag, into pallets or wooden case. Special packaging requirements can also be accommodated.

Place of Orig:

China

Name:

Inconel X-750 wire /N 07750/2.4669

Density:

8.25g/cm³

Melting range:

1395-1425℃

Tensile strength Rm:

910 N/mm²

Yield strengthRP 0.2:

550 N/mm²

Elongation A5:

25%

Brinell Hardness HB:

≤350

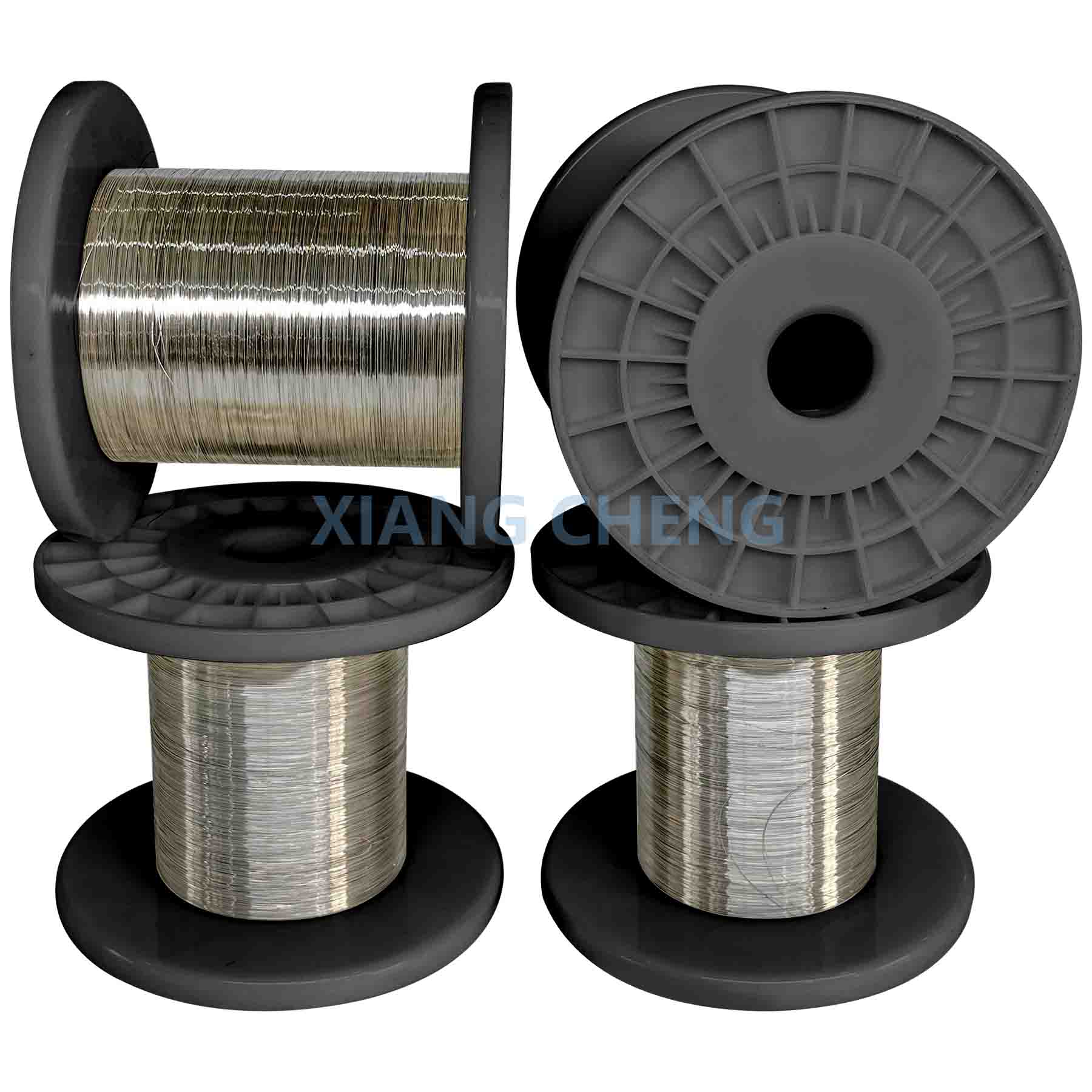

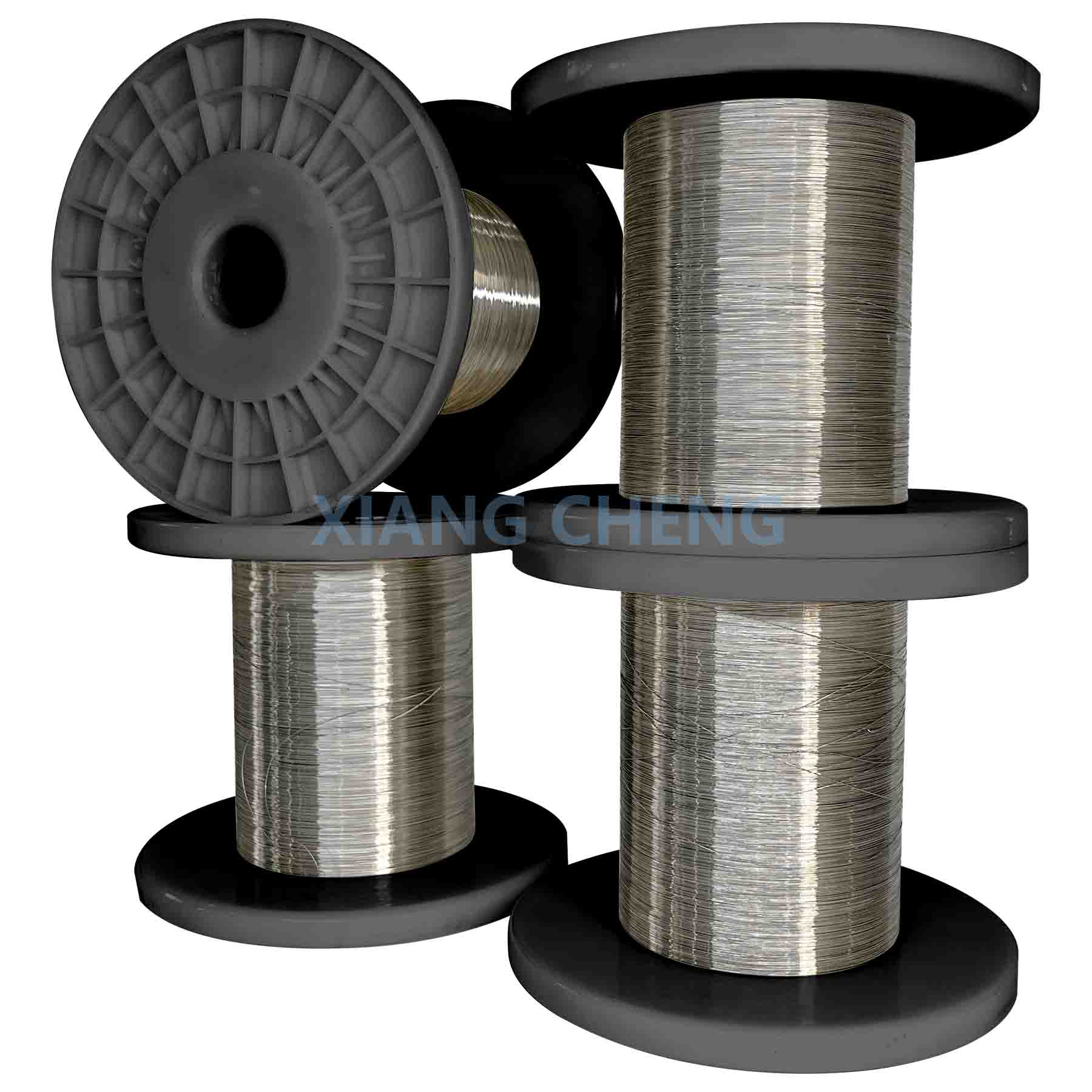

Inconel X-750 wire /N 07750/2.4669 With Ability To Withstand Extreme Stres In Harsh Environments

Inconel X-750 wire /N 07750/2.4669 With Ability To Withstand Extreme Stres In Harsh Environments

Inconel X-750 wire /N 07750/2.4669 is a high-strength, oxidation-resistant nickel-chromium alloy ideal for high-temperature, high-stress applications. With excellent resistance to creep, fatigue, and thermal cycling, it is extensively used in aerospace, power generation, and industrial applications. The alloy's resistance to oxidation and corrosion at elevated temperatures ensures its suitability for environments where mechanical strength and integrity are critical, such as in gas turbines, jet engines, and high-performance industrial furnaces.

Trade Code

CN		US		DER
GB	ISC	COMMERCIAL CODE	UNS	DIN EN/ EN	W-Nr.
NS 4102 GH 4145	H 07750	Hastelloy X750	N 07750	NiCr15Fe7TiAl	2.4669

Chemical Composition Wt.%	%	Ni	Cr	Fe	Nb+ta	Co	C	Mn	Si	S	P	Cu	Al	Ti
	Min	70	14	5	0.7								0.40	2.25
	Max		17	9	1.20	1.0	0.08	1.0	0.5	0.01	0.015	0.50	1.0	2.75

Physical Constants	Density(g/cm³)				8.25
	Melting Range(℃)				1395-1425

Minimum mechanical properties of alloy at room temperature	Typical mechanical properties		Tensile strength Rm N/mm²		Yield strength RP 0.2 N/mm²		Elongation A5 %		Brinell Hardness HB
	Solution treatment		910		550		25		≤350

Key Features:

High-Temperature Strength:

Inconel X-750 wire /N 07750/2.4669 maintains high tensile, creep, and rupture strength at elevated temperatures (up to ~980°C or 1800°F), making it suitable for long-term service in extreme conditions.

The alloy is commonly used in applications where high stress and thermal fatigue are present, such as in gas turbines, steam turbines, and industrial furnaces.

Oxidation and Corrosion Resistance:

Excellent resistance to oxidation at high temperatures, especially in environments containing sulfur or other corrosive gases.

Provides resistance to a wide range of corrosive environments, including those containing acids, alkalis, and seawater.

Creep Resistance:

One of the key properties of Inconel X-750 wire /N 07750/2.4669 is its ability to resist deformation under mechanical stress at high temperatures. This makes it ideal for turbine blades and other high-stress components that need to maintain their shape and integrity under thermal cycling.

Weldability and Fabricability:

Inconel X-750 wire /N 07750/2.4669 can be welded using most conventional welding techniques, including TIG, MIG, and gas welding. It is also suitable for brazing and forming.

It is highly weldable, with the proper techniques, and can be heat-treated for additional strength and stress relief.

Strengthening Mechanisms:

The alloy achieves its high-temperature strength through a combination of solid solution strengthening and precipitation hardening, which are achieved via the controlled addition of aluminum, titanium, and other elements.

Applications:

Inconel X-750 wire /N 07750/2.4669 is widely used in industries requiring high performance under extreme temperatures and mechanical stresses, including:

Aerospace: Components for gas turbines, jet engines, and other high-temperature rotating machinery.
Power Generation: Components like turbine blades, casings, and heat exchangers in both gas and steam turbines.
Chemical Processing: Components for high-temperature reactors, furnaces, and heat exchangers where resistance to oxidation and corrosion is critical.
Nuclear Power: Critical components for reactors and other high-stress applications.
Industrial Furnace: Parts exposed to high-temperature corrosive gases, such as muffles, combustion chambers, and radiant tubes.

Common Forms:

Inconel X-750 wire /N 07750/2.4669 is typically available in wire, rod, plate, sheet, and tube forms, as well as weld rods for joining. It is commonly used in turbine blades, heat exchangers, and other high-performance components.

Inconel® X750, a high-strength, corrosion-resistant nickel-based superalloy, is widely used in aerospace, nuclear reactors, and high-temperature industrial applications. Many buyers are actively seeking competitive Inconel X750 price information, especially when sourcing Inconel X750 wire for demanding environments requiring exceptional heat and oxidation resistance. Leading Inconel X750 suppliers offer a variety of product forms including bar, sheet, and Inconel X750 wire, with customized dimensions and surface finishes to meet specific application needs. Due to its excellent mechanical properties and long-term stability under extreme conditions, Inconel X750 wire remains a popular choice for springs, fasteners, and sealing components in high-temperature systems. For accurate Inconel X750 pricing and technical support, it is recommended to contact reputable Inconel X750 suppliers directly.
