Categories | Suspension Air Springs |
---|---|
Brand Name: | AIRSUSTECH |
Model Number: | 1B6910-3/4 |
Certification: | ISO/TS16949:2009 |
Place of Origin: | Guangzhou,China |
MOQ: | 5 |
Price: | Negotiable |
Payment Terms: | T/T, Western Union, Paypal or Others |
Supply Ability: | 1000PCS/Week |
Delivery Time: | 5-8 Working Days |
Packaging Details: | Strong Carton Box or as Customers Requirement |
Manufacturer: | AIRSUSTECH |
Item NO.: | 1B6910-3/4 |
Structure: | Single Convoluted |
Cross References: | Phoenix SP 1B 12 |
Air Hole: | G 3/4 |
Design Height: | 110 MM |
Sample: | Available |
Warranty Special: | 1 Year |
Company Info. |
Guangzhou Guomat Air Spring Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |
Performance Characteristics
Diameter of the Top Cover Plate: 160 mm Center-to-Center Distance of Screws on the Top Cover Plate: 89 mm Diameter of the Bottom Cover Plate: 160 mm Center-to-Center Distance of Screws on the Bottom Cover Plate: 89
mm Screw (Nut) Thread Count for the Top Cover Plate: 2×M8×1.25 Screw (Nut) Thread Count for the Bottom Cover Plate: 2×M8×1.25 Air Hole: G 3/4 Maximum Diameter of the Rubber Bellow: 220 mm Height [Min]: 60 mm Height [Max]: 140 mm Design Height: 110 mm |
Other OEM Number
Bosch | 822419004 |
Firestone | W01-M58-6374, W01M586374, W01 M58 6374 WO1-M58-6374, WO1M586374, WO1 M58 6374 |
Contitech | FS 200-10, FS200-10, FS20010 FS 20010, FS 200 10, FS200 10 |
Phoenix | SP 1B 12, SP 1B12, SP1B 12, SP1B12 |
Dunlop(FR) | 9''1/4x1 S09101, |
Festo | EB-250-85, EB25085, EB 250 85 |
Norgren | PM/31091(8 1/4x1), PM31091(8 1/4x1), PM 31091(8 1/4x1) |
AIRSUSTECH Air Suspension Key Features
We Have Contitech Single Convoluted Air Actuators
FS 40-6 CI | FS 310-12 CI |
FS 50-5 CI | FS 330-11 CI |
FS 70-7 CI | FS 330-14 CI |
FS 100-10 CI | FS 530-11 CI |
FS 120-10 CI | FS 530-14 CI |
FS 120-12 CI | FS 960-12 CI |
FS 200-10 CI | FS 1330-11 CI |

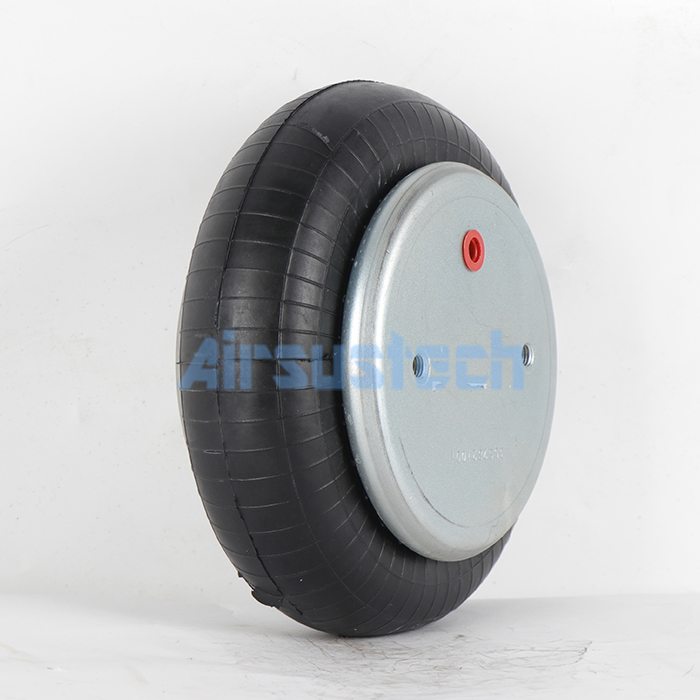

Comprehensive Photographs
![]() |
