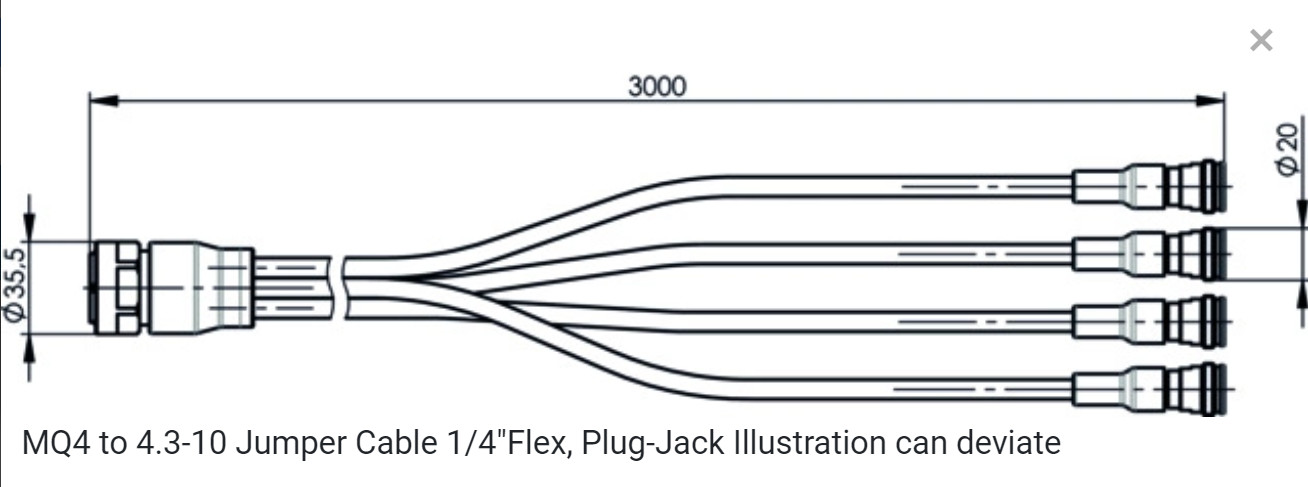

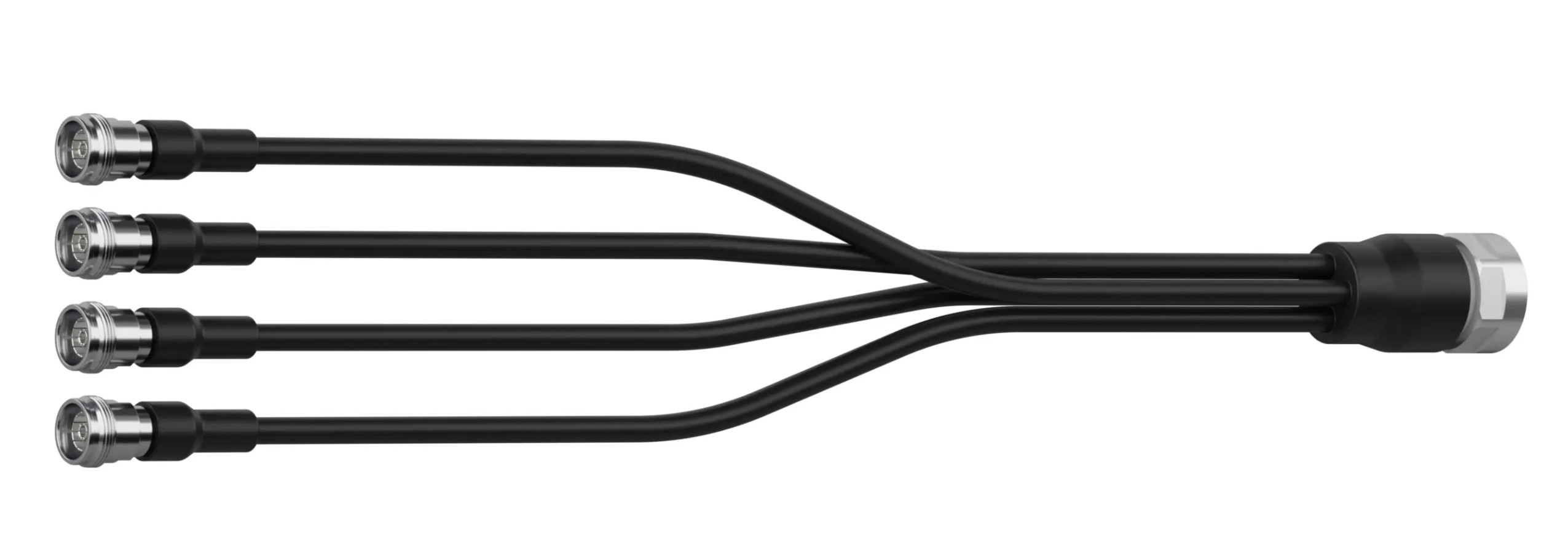

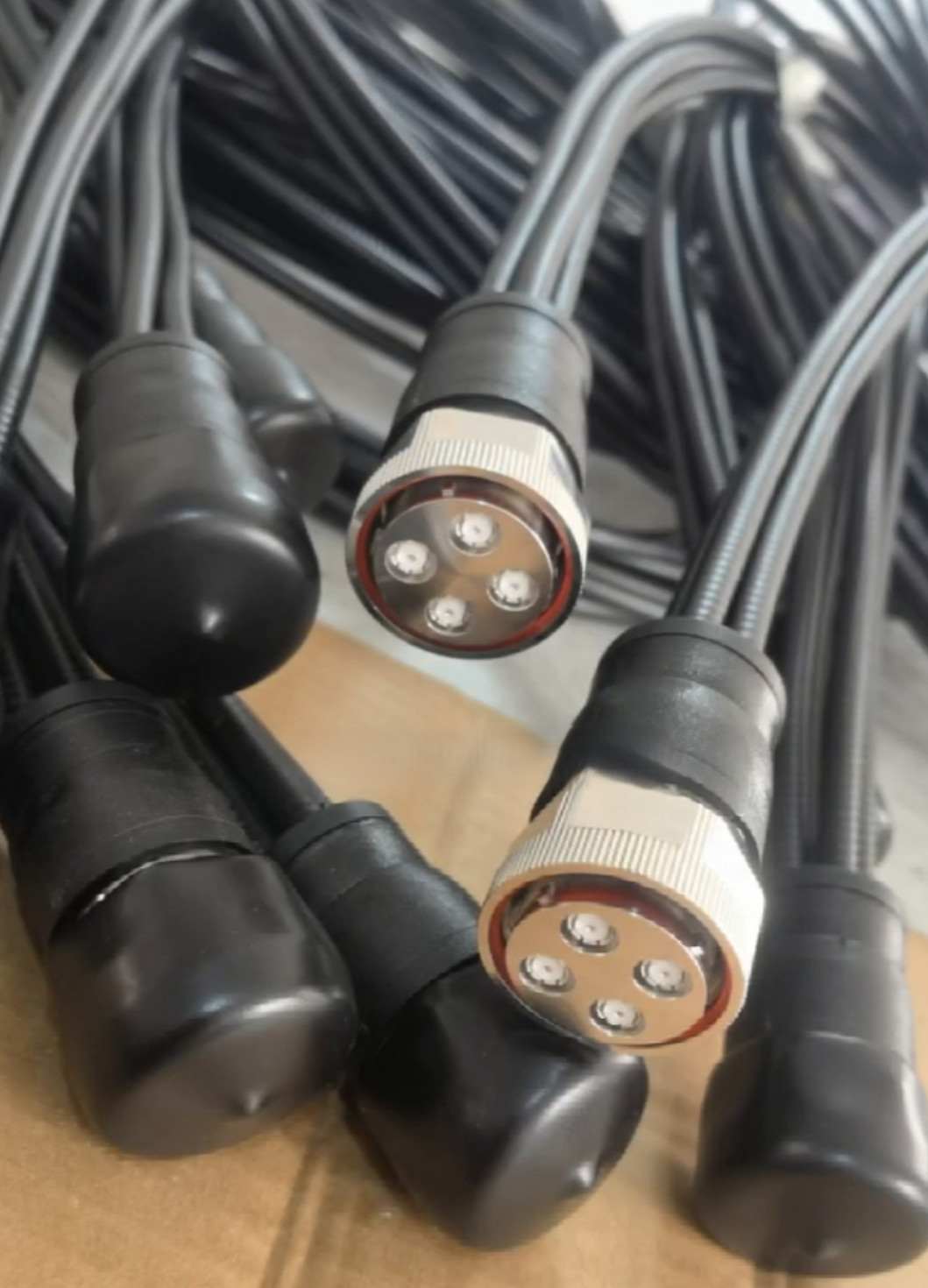

Signal Cable 1/4" MQ5 To 4.3-10 Flex Jumper Cable Assemblies

The MQ4 MQ5 Jumper, it is RF Cable Assemblies typically consist of a single cable with multiple connectors that can be attached to various types of antennas. The cable is usually made of high-quality materials to ensure durability and reliable performance.

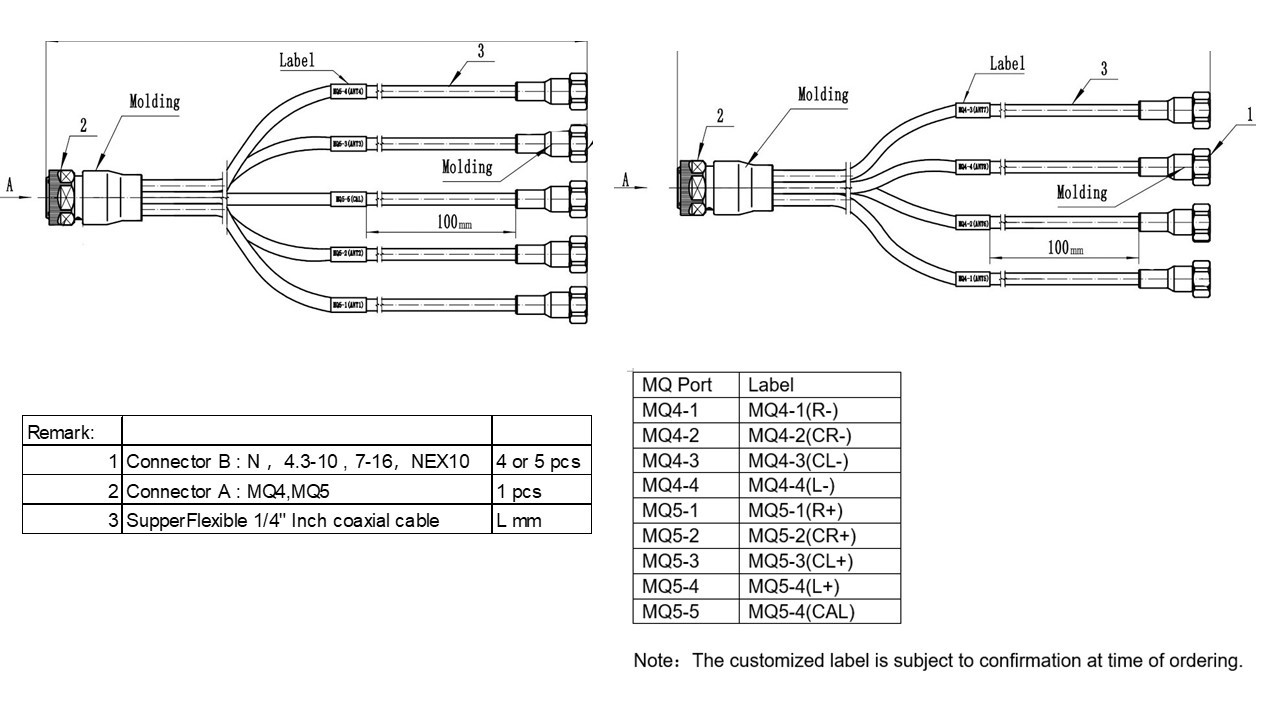

Jumper cable in this context would typically mean a coaxial cable assembly that has an MQ4 or MQ5 connector on one end and a NEX10 connector on the other end.

1. MQ4 Connector : This is a type of RF coaxial connector used in telecommunications. It has a threaded coupling mechanism and is designed to operate at higher frequencies.

2. MQ5 Connector : Similar to MQ4, MQ5 is also an RF coaxial connector with a threaded coupling mechanism. It is used in applications where higher frequency performance is required.

3. NEX10 Connector: NEX10 is a newer type of connector designed to meet the increasing performance demands of mobile networks, especially in 5G applications. It offers low PIM (Passive Intermodulation) performance and is known for its compact size and robust design.

For specific product details and purchasing options, you would typically need to check with suppliers or manufacturers of coaxial cables and connectors, as they can provide tailored solutions based on your requirements.

MQ4 MQ5 Jumper FEATURES / BENEFITS

• Ingenious Design facilitates fast installation and deployment
• Waterproof to IP 67 . No downtime risk, secures revenue.
• Stable Structure guarantees excellent consistency
• Stable VSWR, outstanding and consistent intermodulation performance
• Compliant to RoHS (EU) and CRoHS (China)

TEMPERATURE SPECIFICATIONS

• Installation Temperature °C (°F) -25 to 60 (-13 to 140 )
• Operation Temperature °C (°F) -40 to 70 (-40 to 158 )
• Storage Temperature °C (°F) -40 to 70 (-40 to 158 )

ELECTRICAL SPECIFICATIONS

• Intermodulation, 3rd Order dBc ≤ -155
• VSWR, Return Loss VSWR (dB) ≤ 1.100 (26.5) @ 30 - 2200 MHz
• ≤ 1.120 (25) @ 2200 - 2700 MHz
• ≤ 1.160 (22.6) @ 2700 - 3300 MHz
• ≤ 1.200 (21) @ 3300 - 4200 MHz
• ≤ 1.250 (19) @ 4200 - 5000 MHz
• ≤ 1.350 (16) @ 5000 - 6000 MHz

We are a high-tech enterprise focusing on the research, development and manufacturing of fibre optic patch cords, dedicated to providing high-quality fibre optic connectivity solutions for the global telecommunication infrastructure. Our core products are compatible with Ericsson, Nokia, Huawei, ZTE and other internationally renowned brands, and are widely used in the field of telecom network construction and maintenance.

As the preferred partner of telecom contractors, we not only provide high-quality fibre optic patch cord products, but also expand the design and manufacturing services of RF Jumper, grounding kits, AISG RET cable, power cords and other related products according to customers' needs. In addition, we can also provide customers with original accessories (such as connectors, panels, etc.) procurement support, to ensure that customers can obtain the required high-quality products and services in one-stop.

With excellent product performance, flexible customisation capabilities and efficient supply chain management, we have become a trusted long-term partner for many telecom contractors. In the future, we will continue to be driven by technological innovation to provide our customers with more efficient and reliable connectivity solutions to help the construction and development of global communications networks.

Core Advantages

Strong compatibility: products are fully compatible with Ericsson, Nokia, Huawei, ZTE and other mainstream equipment.

One-stop service: from fibre optic patch cords to related accessories, to meet the diversified needs of customers.

High-quality manufacturing: Strictly follow international standards to ensure product performance and reliability.

Customer-oriented: Provide customised solutions and technical support to help customers succeed.

Welcome to contact us, lets team together, create a new bright future.
