UL 1581 Vertical / Horizontal Wire Flame Test Apparatus Cables And Wires Flame Resistance Test

UL 1581 Vertical/Horizontal Wire Flame Test Apparatus Cables and Wires Flame Resistance Test

Product information:

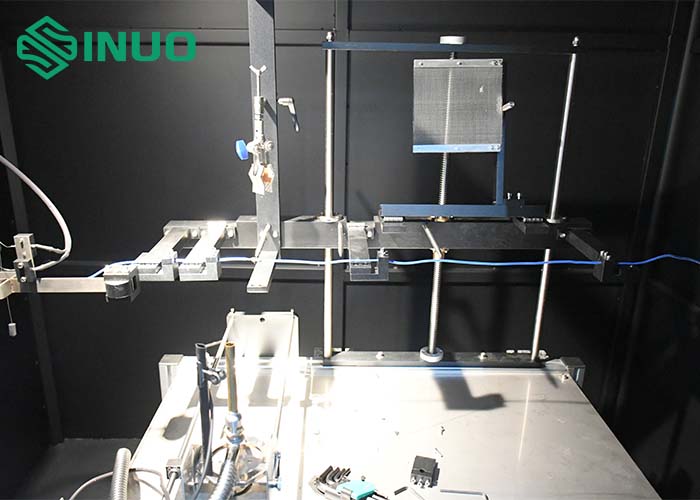

This flammability test chamber meets the requirements of UL1581 and UL94 flame test. The effects of flames in the early stages of fire on electrical and electronic products are used to assess the degree of fire hazard through simulation techniques. It is mainly used for 1080 VW-1 (vertical-specimen) flame test and 1100 horizontal-specimen/ FT2 flame test on finished wires and cables or cords, to evaluate the ability of wires, cables or flexible cords to spread flame to nearby flammable materials when it is on fire.

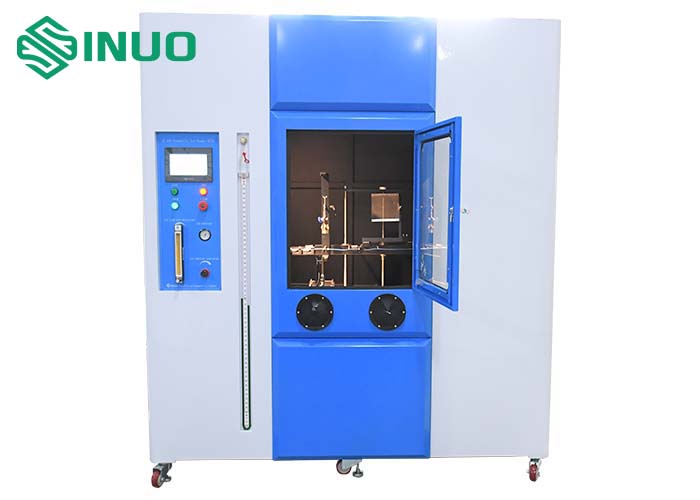

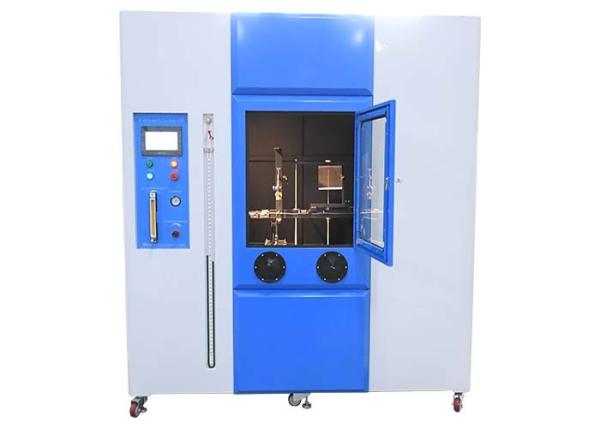

The equipment adopts PLC control system, touch screen humanized operation interface, black background, multi-function flame gauge; the chamber body is made of stainless steel, the observation window is large; the original imported flame control system to make the flame adjustment become simple; and it has stable performance and convenient operation.

Technical parameters:

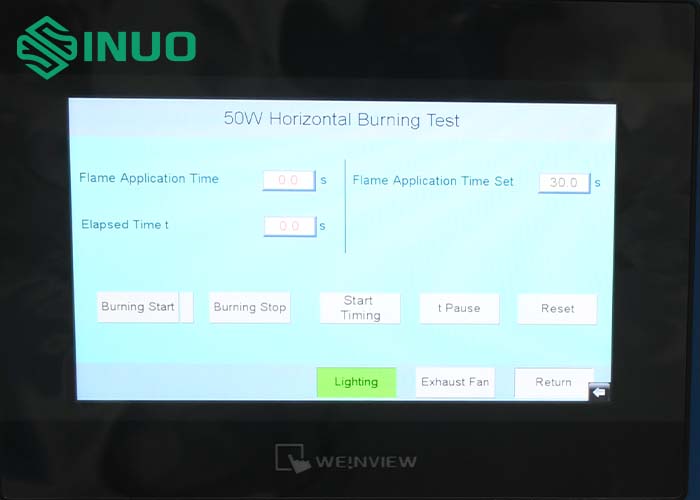

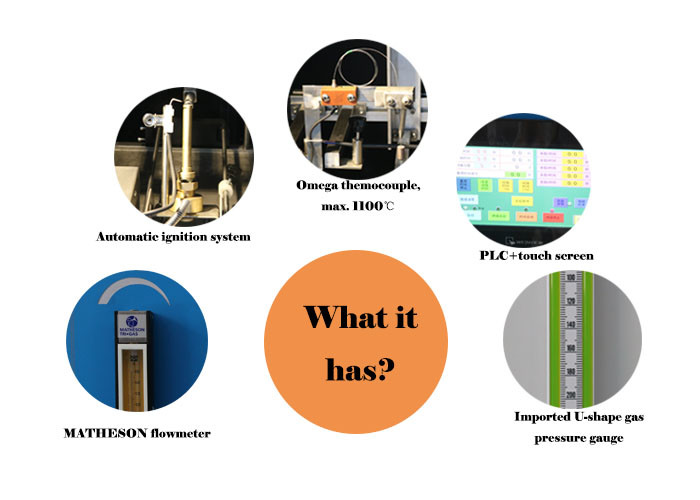

• Mitsubishi PLC control and VEINVIEW7” touch screen opetaion, ensure the operation is humanized
• Original imported flame control system to make the flame adjustment become simple
• Automatic ingition process to ensure the operator's safety
• Original imported flowmeter and Omega themocouple ensures the testing accuracy

Sinuo is an innovation manufacturing company, specializing in the research and development and sales of laboratory construction and testing equipment for electrical appliances (covering the construction of energy efficiency and performance laboratories, as well as supplementary waterproof testing laboratories, materials flame-retardant laboratories, basic general testing equipment, etc.), Sinuo aims to provide clients with complete laboratory construction, system integration, R&D, rectification and after-sales service, and strive to be the leader of one-stop service for laboratory construction in the field of electrical appliance testing.

Sinuo  products are composed of all kinds of testing equipments as per standards of IEC/ BS/ EN/VDE/UL/ ISO..., such as household appliances testing equipment, energy efficient testing laboratories and comprehensive performance test system for household appliances, battery testing equipment,  automotive testing equipment, luminaries testing equipment,IP code testing equipment, environmental test chamber, flammability test chambers, EMC testing equipment and etc.

Sinuo employees include a highly trained staff of engineers for sales and service, that are committed to offer satisfactory products and prompt service to all home and abroad customers.

Sinuo cooperate with many research institutions and schools to enable our techincal capacities. Sinuo has two own factories, one is in Guangzhou, the other is in Dongguan, and authorized agents and representative offices in Korea, South Africa, Egypt,Pakistan and Philippines.

Sinuo combines all the R/D and production advantages, contributes to provide perfect, high-end and systematic electrical appliance testing laboratory solutions, products and services for corporate customers, universities and third-party laboratories. Our clients include Bureau Veritas, CSA, Intertek, TUV Rehiland, TUV SUD, SGS, etc.
