W01-358-7008 Firestone Industrial Bellows Actuator 1/4NPTF Pneumatic Connection

Categories Firestone Air Bags
Brand Name: AIRSUSTECH
Model Number: 1B5330
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 5
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal or Others
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Supplier: AIRSUSTECH
Product NO.: 1B5330
Reference NO.: 1B12-300
Pneumatic Connection: 1/4NPTF
Quality: 100% Tested
Maximum OD.: 325 MM
Bellows Structure: Single Convoluted
Compatibility: Universal
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

W01-358-7008 Firestone Industrial Bellows Actuator 1/4NPTF Pneumatic Connection

W01-358-7008 Firestone Industrial Bellows Actuator 1/4NPTF Pneumatic Connection

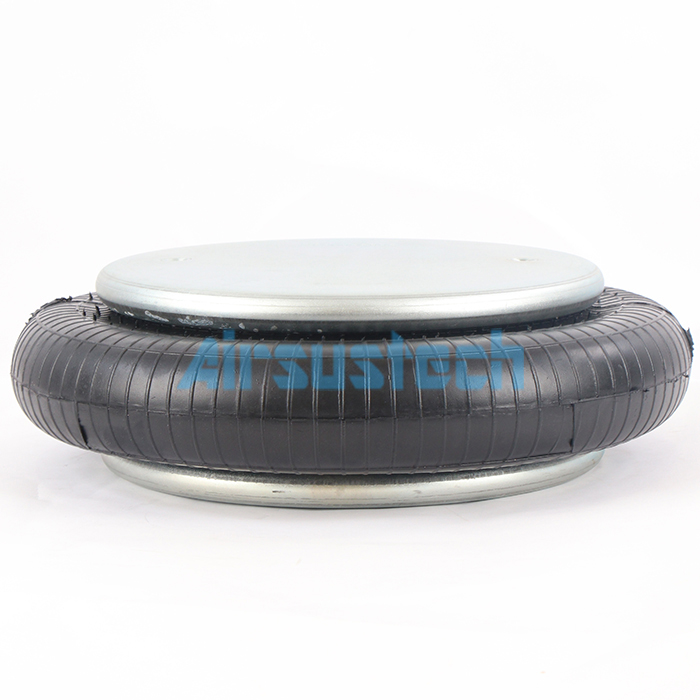

Product Introduction


Airsustech air spring Assembly Order Number is 1B5330. This part is capable of replacing Firestone W01-358-7008, Contitech FS 330-11 474, Goodyear 1B12-300/313, Triangle 6374/4474, Holland(Neway) 90557226.



Product Details


Air Spring TypeSingle Convoluted
ApplicationHolland (Neway) 90557226
Bellows19
Bottom MountFlat
Bottom Plate Diameter9 in. (231mm)
Bottom Plate Hole Stud Qty2
Compressed Lenght2-1/8 in. (55mm)
Design Height (in.)4-1/4 in @ 5 in. (108mm - 127mm)
Diameter12 in. (325mm)
Loading Capacity at 20 psig1300 lb-ft
Loading Capacity at 60 psig3900 lb-ft
Loading Capacity at 90 psig5850 lb-ft
Temperature-30℃...+70℃
Top MountFlat
Top Plate Diameter

9 in. (231mm)

Top Plate Hole/Stud3
Weight9.6 lb (5kg)


Refer Number


  • Firestone Bellows Number: 19
  • Goodyear Part Number: 1B12-300, 1B12300, 1B 12-300, 1B12-313, 1B 12-313, 1B12313
  • Goodyear Bellows Number: 578-91-3-301, 578 91 3 301, 578913301
  • Triangle Part Number: 4474
  • Triangle Bellows Number: 6374
  • ContiTech Number: 64596, FS330-11474, FS 330-11 474, FS330 11 474, FS 330 11 474
  • ContiTech Bellows Number: FS 330-11, FS330-11, FS33011
  • Holland (Neway) Number: 905-57-226, 905 57 226, 90557226
  • Watson & Chalin #: AS01491G, AS-0149-1G, AS 0149 1G
  • Manufacturers Part Number: W01-358-7008, W01 358 7008, W013587008
  • UPC: 767555003299
  • MPN: W013587008, W01-358-7008, W01 358 7008

FAQ


Q: If I live outside the EU, do I need to pay import duties?

A: Yes, we ship all our goods "DDU" (Delivered Duty Unpaid). This means that you are responsible for all costs of importing the goods. Therefore, import duties, taxes and charges are not included in the item price or shipping costs. We cannot calculate the import costs for you. We can only include a commercial invoice with your shipment.


Q: Can I get a proforma invoice?
A: Yes, we will send you a proforma invoice if you choose "Bank Transfer" as the payment method during the checkout process. You can pay by bank transfer, PayPal or credit card after receiving the proforma invoice. We will ship the goods immediately after receiving the payment.


Q: Do you test all goods before delivery?
A: Yes, 100% tested before delivery.
