| Categories | R Series Gearmotor |
|---|---|
| Brand Name: | HUATAO |
| Model Number: | HT |
| Certification: | CE, ISO, TUV |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiatable |
| Payment Terms: | T/T,L/C,Western Union |
| Supply Ability: | 5000PCS/Per Month |
| Delivery Time: | 25 days |
| Packaging Details: | Plywood Case |
| Product Name: | K Series Helical Gear Spiral Bevel Gearbox |
| Key Words: | K Series Gearmotor Reducer |
| Application: | Industrial Machinery |
| Color: | Basis on customer request |
| Customized: | Available |
| Package: | Plywood Case |
| HS Code: | 8483409000 |
| Production Capacity: | 5000PCS/Per Month |
| Company Info. |
| SHIJIAZHUANG HUATAO IMPORT AND EXPORT TRADE CO., LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |

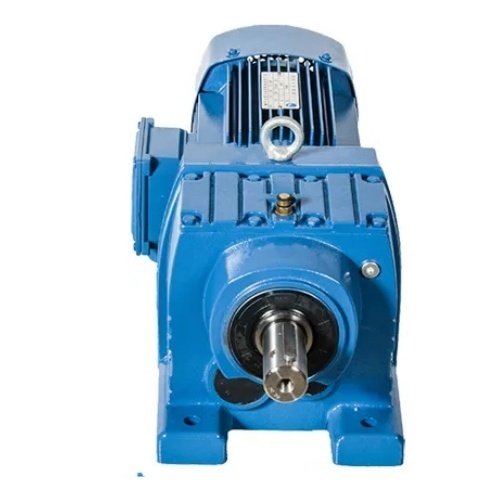

R97 Series High Load Helical Gearmotor Reducer with Foot Mounted
R Series High Torque Variator Gearbox Helical Reducer is widely used in metallurgical mining, petrochemical industry, building materials machinery, railway vehicles, port ships, textile printing and dyeing, food packaging, paper printing, lifting and conveying, logistics loading and unloading, agricultural, animal husbandry and fishery machinery, light industry leather and other light and heavy industrial machinery transmission fields.
Model of R Series High Torque Variator Gearbox Helical Reducer
| Solid shaft output type | RX37 reducer, RX57 reducer, RX67 reducer, RX77 reducer, RX87 reducer, RX97 reducer, RX107 reducer, RX127 reducer |
| Solid shaft with flange output type | RXF37 reducer, RXF57 reducer, RXF67 reducer, RXF77 reducer, RXF87 reducer, RXF97 reducer, RXF107 reducer, RXF127 reducer |
| Hollow shaft output type | R37 reducer, R47 reducer, R57 reducer, R67 reducer, R77 reducer, R87 reducer, R97 reducer, R107 reducer, R137 reducer, R147 reducer, R167 reducer |
| Hollow shaft with flange output type | RF37 reducer, RF47 reducer, RF57 reducer, RF67 reducer, RF77 reducer, RF87 reducer, RF97 reducer, RF107 reducer, RF137 reducer, RF147 reducer, RF167 reducer |
Material of R Series High Load Helical Gearmotor Reducer with Foot Mounted
1. Box body: HT250 high-strength cast iron, injection-shaped inner cavity, effectively reduces parts wear；
2 . Gear: 20CrMo alloy steel, carbon-nitrogen co-infiltration treatment (maintain tooth surface hardness HRC60 after fine grinding)；
3 . Flat key: 45 steel, surface hardness HRC50.
Technical parameters of R97 Series High Load Helical Gearmotor Reducer with Foot Mounted:
| Ratio | 3.41-289.74 |
| Input power | 0.12-160KW |
| Output torque | 61-23200N.m |
| Output speed | 5-415rpm |
| Mounting type | Foot mounted, flange mounted, foot and flange mounted, single-stage foot mounted, single stage flange mounted, Flange-mounted with extended bearing hub |
| Input Method | Flange input(AM), shaft input(AD), inline AC motor input, or AQA servo motor |
| Brake Release | HF-manual release(lock in the brake release position), HR-manual release(automatic braking position) |
| Thermistor | TF(Thermistor protection PTC thermistor) TH(Thermistor protection Bimetal switch) |
| Mounting Position | M1, M2, M3, M4, M5, M6 |
| Type | R17-R167 |
| Output shaft dis. | 20mm, 25mm, 30mm, 35mm, 40mm, 50mm, 60mm, 70mm, 90mm, 110mm, 120mm |
| Housing material | HT200 high-strength cast iron from R37,47,57,67,77,87 |
| Housing material | HT250 High strength cast iron from R97 107,137,147,157,167,187 |
| Heat treatment technology | carbonitriding and hardening treatment |
| Efficiency | 92%-97% |
| Lubricant | VG220 |
| Protection Class | IP55, F class |
Packaging:
FAQ:
1. Can you customize it according to our requirements?
We can design nonstandard products according to the customer's
drawing and sample.
2. What's your product range?
speed reducer, gearbox, gear motor, pump, crusher
3. What is the reason why we buy from you?
With over 20 years of production experience and credibility. With a
professional engineering team, advanced technology production, and
skilled workers.Specialized in the production of reducer. Map
sample processing business can be undertaken
|
