Large Capacity Used HOWO 7H Dump Trucks With Front Wheelbase 2022mm And Maximum Horsepower 380 Hp

Categories Used Vehicle
Brand Name: HOWO
Model Number: HOWO 7
Place of Origin: China
MOQ: 1 unit
Payment Terms: L/C, T/T
Supply Ability: 5000units per year
Delivery Time: 60 Working days
Packaging Details: Using Carton, ro-ro ship
Driving form: 6X4
wheelbase: 3825+1350mm
Engine: Sinotruck D10.38-50
Transmission: Sinotruck HW19712
Rear Axle Ratio: 5.45
Length: 8.545m
Width: 2.496m
Height: 3.45m
Front Wheelbase: 2022mm
Rear Wheelbase: 1830/1830mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Large Capacity Used HOWO 7H Dump Trucks With Front Wheelbase 2022mm And Maximum Horsepower 380 Hp

Used Heavy Duty Large Capacity Dump Trucks HOWO 7H Maximum Horsepower 380 hp


Core Advantages of HOWO-7 Dump Trucks:

Powerful and worry-free transportation
HOWO-7 dump trucks are equipped with Sinotruk's D10.38-50 high-performance engine, with maximum horsepower up to 380 hp and torque up to 1560 N.m. Whether it's heavy-duty climbing or complex road conditions, it can easily cope with them. Don't worry about the problem of insufficient power of the vehicle, and the transportation efficiency is greatly improved.


Efficient unloading, saving time and labor

HOWO-7 dump truck is equipped with advanced hydraulic lifting system, fast unloading speed and easy operation. In the sludge transportation, the automatic thatching top loading design not only meets the environmental protection requirements, but also effectively avoids spilling and reduces the manual cleaning cost.


Safe and reliable, worry-free protection

Safety is always our top priority, HOWO-7 dump truck is equipped with emergency braking system, anti-rollover system and high strength frame, which guarantee your driving safety in all aspects. In addition, the braking system of the vehicle has been optimized, with shorter braking distance and faster response, so that you can cope with the complicated road conditions with ease.


Comfortable ride, upgraded experience

The cab is newly designed with comfortable seats and multi-functional instrument panel for more convenient operation. The sealing and sound insulation of the cab is excellent, so you won't feel fatigue even after driving for a long time. In addition, the vehicle is equipped with air-conditioning and warm air system, providing you with a comfortable driving environment in both winter and summer.


Economic energy saving, cost reduction and efficiency

HOWO-7 dump truck adopts advanced fuel management system, with low fuel consumption and good economy. At the same time, the vehicle's maintenance cost is also low, with strong parts versatility and convenient maintenance, which can effectively reduce your operation cost.


HOWO 7 Parameters

Basic Information
Drive Type6X4
Wheelbase3825+1350mm
EngineSinotruck D10.38-50
TransmissionSinotruck HW19712
Rear Axle Ratio5.45
Length*Width*Height8.545m *2.496m *3.45m
Front/Rear Wheelbase2022mm/ 1830mm
Vehicle Weight12.19 tons
Rated load12.68 tons
Gross mass25 tons
Approach/Departure Angle19 degrees(°)/ 23 degrees(°)
Engine parameters
Engine typeIn-line six-cylinder, water-cooled, four-stroke, supercharged intercooled, high-pressure common rail
Fuel typeDiesel
Displacement9.726L
Maximum Horsepower380 hp
Maximum output power274kW
Maximum torque1560N.m
Transmission Parameters
Transmission ModelSinotruck HW19712
Forward gear12-speed
Reverse gear2-speed
Cargo compartment parameters
Cargo compartment length*width*height5.6m*2.3m*1.12m
Type of cargo compartmentRear-rotating tipper
Fuel tank
Fuel tank capacity300L
Chassis Parameters
Frame Size5.6 x 2.3 x (1.2 + 0.3) mm
Front axle descriptionHF9
Allowable front axle load7000kg
Rear axle descriptionAC16
Rear axle permissible load18000kg (twin axes)
Speed Ratio5.45
Number of spring plates10/12
Tires
Tire Specification12.00R20
Number of tires10pcs
Tire TypeSteel wire tires
Handling Configuration
ABSYes
Interior Configuration
Air conditioningManual

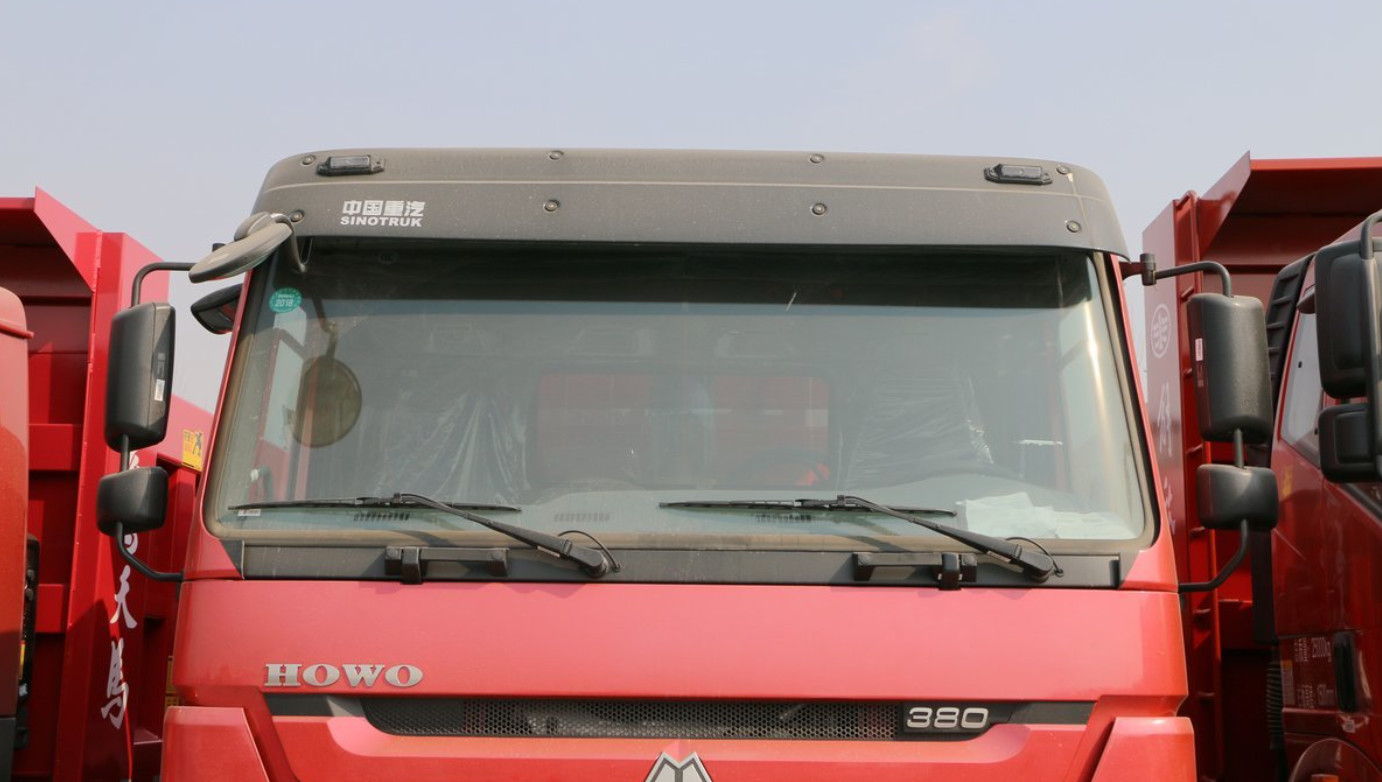

Product Pictures

Cheap Large Capacity Used HOWO 7H Dump Trucks With Front Wheelbase 2022mm And Maximum Horsepower 380 Hp for sale
