| Categories | Network Switch |
|---|---|
| Place of Origin: | Beijing, China |
| Packaging Details: | Original packaging box+Based on customer needs |
| MOQ: | 1 pieces |
| Price: | Contact us |
| Description: | 1U Chassis S5735-L48T4S-A1 Network Switch with 432Gbps/4.32Tbps Capacity and Customized Micro USB |
| Stock: | In Stock |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Shipping Method: | LCL, AIR, FCL, Express |
| Ports: | 48 10/100/1000BASE-T Ethernet ports, 4 Gigabit SFPs |
| Transmission Rate: | 87/166Mpps |
| Function: | VLAN Support |
| Communication Mode: | Full-Duplex & Half-Duplex |
| Switch Capacity: | 432Gbps/4.32Tb ps |
| Product Name: | Network Switch |
| Color: | Black |
| Chassis height: | 1U |
| Chassis size: | 442x220x43.6mm |
| Weight: | 3.74 kg |
| Maximum power consumption: | 50.4 W |
| Delivery Time: | 2-7 working days |
| Supply Ability: | /pieces >=1 pieces |
| Company Info. |
| Beijing Yuchuang Qiji Technology Development Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

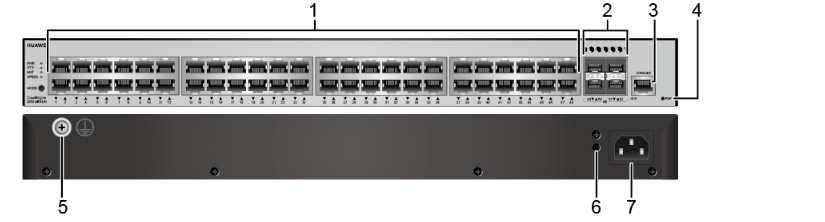

Huawei S5735-L48T4S-A1 switch with 48 10/100/1000BASE-T ports, 4 GE SFP ports, AC power fixed, which is one model of Huawei S5735-L series switch.
CloudEngine S5735-L series switches are ideal for scenarios such as enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and the Huawei Versatile Routing Platform (VRP), CloudEngine S5735-L switches stand out with compelling features such as intelligent stack (iStack), flexible Ethernet networking, and diversified security control. They support multiple Layer 3 routing protocols and provide high-performance and service processing capabilities.
48 x 10/100/1000Base-T ports
4 x GE SFP ports
AC power supply
Forwarding performance: 78 Mpps
Switching capacity: 104 Gbps/432 Gbps
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 2.76 kg (6.09 lb) |
| Weight with packaging [kg(lb)] | 3.74 kg (8.25 lb) |
| Typical power consumption [W] | 43.3 W |
| Typical heat dissipation [BTU/hour] | 147.74 BTU/hour |
| Maximum power consumption [W] | 50.4 W |
| Maximum heat dissipation [BTU/hour] | 171.97 BTU/hour |
| Static power consumption [W] | 20.3 W |
| MTBF [years] | 56.7 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 48 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 36.2 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 1 |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature [°C(°F)] | -5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.) |
Table 2 shows the recommended models.
| Model | Description |
| OMXD30000 | Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| OMXD30009 | Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
ESFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.5km, LC) |
Table 3 shows the comparison.
| Product Model | S5735S-L12T4S-A S5735S-L12P4S-A | S5735S-L24T4S-A S5735S-L24P4S-A | S5735S-L24T4X-A S5735S-L24P4X-A | S5735S-L48T4S-A | S5735S-L48T4X-A S5735S-L48P4X-A | S5735S-L32ST4X-A |
| Forwarding Performance | 24 Mpps | 42 Mpps | 96 Mpps | 78 Mpps | 132 Mpps | 108 Mpps |
| Switching Capacity2 | 32 Gbit/s/336 Gbit/s | 56 Gbit/s/336 Gbit/s | 128 Gbit/s/336 Gbit/s | 104 Gbit/s/432 Gbit/s | 176 Gbit/s/432 Gbit/s | 144 Gbit/s/432 Gbit/s |
| Fixed Ports | 12 x 10/100/1000Base-T ports, 4 x GE SFP ports | 24 x 10/100/1000Base-T ports, 4 x GE SFP ports | 24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports | 48 x 10/100/1000BASE-T ports, 4 x GE SFP ports | 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
| PoE+ | CloudEngine S5735S-L12P4S-A: Supported CloudEngine S5735S-L24P4S-A: Supported CloudEngine S5735S-L24P4X-A: Supported CloudEngine S5735S-L48P4X-A: Supported Other: Not supported | |||||
