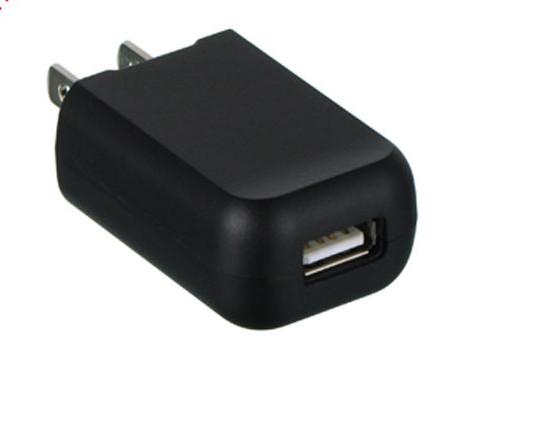

input 100~240v ac/dc 5v charger 50/60hz

Categories	USB Charger
Place of Origin:	China
Brand Name:	YQY
Certification:	CE,UL/CUL,FCC,ROHS,SAA,KC,CCC,GS
Model Number:	YQY-00500100
Type:	Travel
Socket Type:	For USA/Canada
MOQ:	500
Price:	1-5$
Packaging Details:	Standard packing
Delivery Time:	1-3weeks
Payment Terms:	T/T,L/C,Papay,Cash,Western union
Supply Ability:	3500000month

Contact Now

Add to Cart

Company Info.

BTB TECHNOLOGY CO.LTD

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Input	100 to 240V AC, 50/60Hz
Output power	5W10w15w20w
Output voltage	5VDC
Output current	1A/2A3A/4A
Color available	Purple ,red ,orange ,yello ,blue,silver etc
Outlet	single usb ,dual usb or with cable
Protection	Overload protection
	Output over voltage protection
	Short circuit protection
Certificate	CEC power supply standard
	CE approved (EMC, TVD)
	KC
	PSE
	ROHS
	FCC
Efficiency	Mini 75 %
Standard DC Connector	Micro USB & Mini USB & iPhone 30Pin & 2.00.7 & 2.50.75 & 3.51.35 & 4.01.7 &5.52.1 &5.52.5
No Load Power Consumption	≤0.3W at Rated Voltage
Ripple And Noise	Output voltage 1%
High-Voltage test	Primary to secondary: 3 kV 5 mA 60S
Leakage Current	0.5 mA(max) at input 240V AC
Operating Temperature Range	0--40°C
Storage Temperature Range	-20 --- 85°C
High Humidity Operation	+ 40 °C and 90 ~ 95% Humidity
Dimension	72.5mm48mm29mm
Net weight	USBAbout 65 gram per unit
MTBF	50,000 hours
Insulation Resistance:Primary to Secondary	50 Meg. Ohms min. 500VDC
Application	Mobile phone, Tablet PC, Bluetooth headset, MID,Water purifier, LED, Medical machine,CCTV camera, LCD, Set-top box, DVR, Router, Modem,etc.
Packing A	Qty: 100PCS/CTN
	MEA: L46.5W34H14.5cm
	Packing Material:PE bag+white box+carton
Packing B	Qty: 100PCS/CTN
	MEA: L47cmW38cmH25cm
	Packing Material:PE bag+Paper segment+carton
Packing c	Qty: 100PCS/CTN
	MEA: L43.5cmW35.6cmH27cm
	Packing Material:Blister+carton

LFS05UL-1
