Ptm600-S Portable Multi-Gas Analyzer for Emergency Response and Laboratory Use

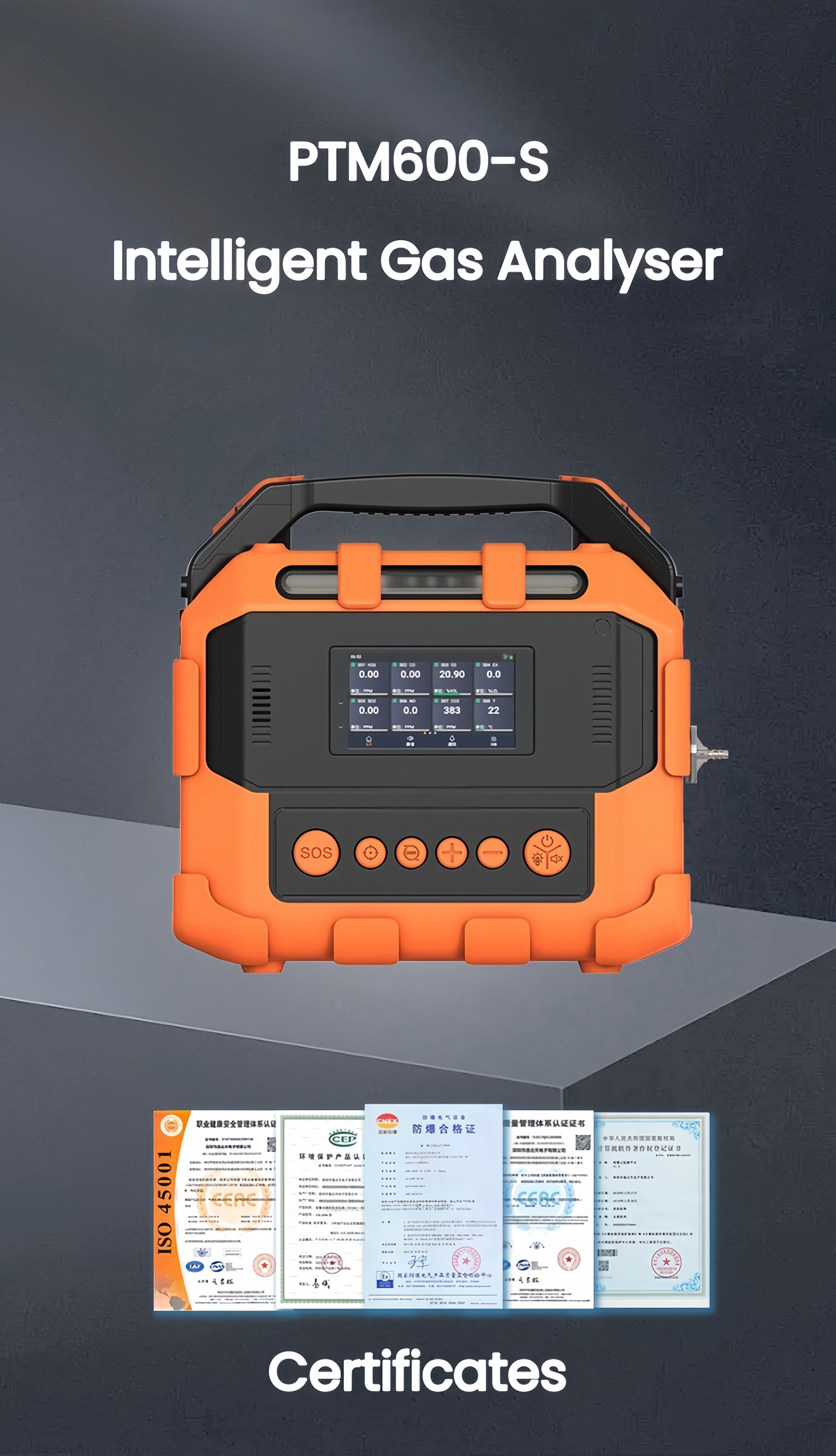

PTM600-S Portable Multi-Gas Analyzer for Emergency Response and Laboratory Use

PTM600S-AQI portable intelligent air quality monitor is used to accurately detect and analyze various gas concentrations and temperature and humidity, particulate matter, air pressure, wind speed, wind direction, radiation, etc. The monitor with 5-inch color screen for real-time display which is touchable. PTM600S-AQI is widely used in firefighting, emergency rescue, confined space, petroleum, chemical industry, metallurgy, refining, gas, warehousing, medicine, environmental protection, flue gas analysis, air treatment and other occasions. The instrument is powerful and supports various additional function customization. It can be regionally networked, interconnected, remote wireless transmission, MESH transmission (remote transmission of confined space data and video), data upload to the cloud platform, with phone APP for remote alarm reminding.

1. ISO,CE,FCC, ROHS, ATEX,CNEX,SIL3 Approved
2. Up to 30 gas pollutants with ppb accurancy
3. Simultaneously measures metrological parameters such as temperature and humidity, particulate matter (PM0.1, PM2.5, PM10 and TSP), air pressure, wind speed, wind direction, noise, rain, radiation, etc.
4. With smart separate module plugin design, support any gas changing and replace.
5. Unit switching, optional units: umol/mol, ppm, mg/m3, ppb, ug/m3, %Vol, %LEL.
6. Built-in pump, support 10 levels of flow adjustable.
7. 5-inch touchable color screen
8. Android operating system, support remote maintenance and OTA remote wireless upgrade.
9. 16G storage capacity, larger capacity optional, support multiple storage methods.
10. Multi type communication interface: TYPE-C, WIFI, Bluetooth
11. Optional wireless transmission options: LORA, MESH, 4G, NB-IOT, etc.
12. Standard functions: GPS/Beidou precise positioning, LED lighting, SOS one-key call function, human fall-down alarm, one-key positioning upload, display user information, real-time location, concentration information, longitude and latitude and custom address information, trajectory query, etc. on the map.
13. Optional functions: one-key photo taking (greater than 800W pixels), video recording, local video viewing, etc.;
14. Data statistical analysis function;
15. Factory parameters and stored data recovery function
16. Sound, light and vibration alarms (95 dB at 30 cm)
17. Alarm types: LOW, HIGH, TWA ,STEL
18. Auto misoperation identification function
19. Automatic zero point tracking
20. Multi-level calibration
21. IP68 Protection level

​

Detection parameters	CO, SO2, NO2,O3,PM2.5 &PM10, T&H, WS &WD CO:Electrochemical sensor, 0-25ppm, 0.01ppm resolution SO2:Electrochemical sensor, 0-10ppm, 0.01ppm resolution NO2:Electrochemical sensor, 0-1ppm, 0.001ppm resolution O3:Electrochemical sensor, 0-1ppm, 0.001ppm resolution PM2.5:laser sensor,0-1000ug/m3, 1ug/m3 resolution PM10:laser sensor, 0-1000ug/m3, 1ug/m3 resolution
Humidity	0-100%
Temperature	-40 ~120ºC
Wind speed	0-40m/s
Wind direction	0-360°
Accuracy	≤±2% (F.S)
Respond time	T90≤20S
Detection method	Pumped, flow rate could be adjusted, with pump-block reminder
Working power consumption	DC 3-5V
Battery	25000mAh rechargeable Li-battery
Protection level	IP68
Product Size	340x330x150mm(L*W*H)
Weight	4.5Kg (will be different according to the different parameters)
Protection grade	Exia II CT4 Ga /Ex ib I Mb
Working environment	-40ºC~+70ºC, ≤95%RH (non-condensing occasions)
Warranty time	1 year

​

All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
