| Categories | Head Mounted Temperature Transmitter |
|---|---|
| Brand Name: | SENSE |
| Model Number: | TMT192C |
| Certification: | HART |
| Place of Origin: | Shanghai China |
| MOQ: | 10PCS |
| Price: | Negotiate |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS / Month |
| Delivery Time: | 5-8 workdays |
| Packaging Details: | Carton packing |
| Power Supply: | 7.5 to 45V DC |
| Input: | Universal input |
| Output: | 4-20mA+HART |
| Isolation: | 2000V AC Galvanic isolation |
| Mounting: | Head mounted |
| Operating Temperature: | -40 to +100 °C |
| Storage Temperature: | -40 to +85 °C |
| Protection Rating: | IP00 |
| Weight: | 90 g |
| Housing Material: | Plastic |
| Dimensions: | 112.5 x 12.6 x 99 mm |
| Signal Transmission: | 2-wire |
| Response time: | ≤ 1s |
| Accuracy: | ±0.1% of span |
| Company Info. |
| SENSE Instruments Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

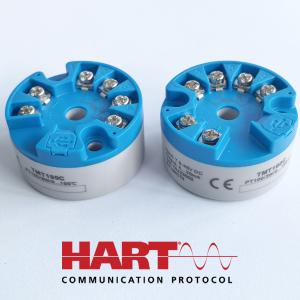

Pt100 HART Head Mounted Temperature Transmitter tMT192C Field communication
Overview:
The TMT192C is a versatile head-mounted temperature transmitter
designed for use with resistance thermometers (RTD), thermocouples
(TC), and both resistance and voltage transmitters. It is
configurable via the HART protocol, ensuring high performance and
reliability across various applications.
Key Features:
Performance Specifications:
Applications:
Ideal for various industrial applications that require accurate
temperature measurement and conversion.
| Input | Type | Measurement Ranges | Min.meas.ranges |
| Resistance thermonmeter(RTD) | PT100 | -200℃ to 850℃(-328℉ to 1562℉) | 10K |
| Resistance thermonmeter(RTD) | PT500 | ►-200℃ to 250℃(-328℉ to 482℉) | 10K |
| Resistance thermonmeter(RTD) | PT1000 | -200℃ to 250℃(-328℉ to 482℉) | 10K |
| Resistance thermonmeter(RTD) | Cu50 | ►-50℃ to 150℃(-58℉ to 302℉) | 10K |
| Resistance thermonmeter(RTD) | Cu100 | ►-50℃ to 150℃(-58℉ to 302℉) | 10K |
| Resistance thermonmeter(RTD) | Ni100 | ►-60℃ to 180℃(-76℉ to 356℉) | 10K |
| Resistance thermonmeter(RTD) | Ni500 | ►-60℃ to 180℃(-76℉ to 356℉) | 10K |
| Resistance thermonmeter(RTD) | Ni1000 | ►-60℃ to 150℃(-76℉ to 302℉) | 10K |
| Resistance thermonmeter(RTD) | Resistance(Ω) | 0Ω to 400Ω | 10Ω |
| Resistance thermonmeter(RTD) | Resistance(Ω) | 0Ω to 2000Ω | 20Ω |
| Connection type: 2-wire, 3wire, 4wire connection | |||
| Thermocouples (TC) | B(PtR30-PtRh6) | 0℃ to 180℃(-32℉ to 3308℉) | 500K |
| Thermocouples (TC) | E(NiCr-CuNi) | -270℃ to 1000℃(-454℉ to 1832℉) | 50K |
| Thermocouples (TC) | J(Fe-CuNi) | -210℃ to 1200℃(-346℉ to 2192℉) | 50K |
| Thermocouples (TC) | K(NiCr-Ni) | -270℃ to 1372℃(-454℉ to 2501℉) | 50K |
| Thermocouples (TC) | N(NiCrSi-NiSi) | -270℃ to 1300℃(-346℉ to 2372℉) | 50K |
| Thermocouples (TC) | R(PtRh13-Pt) | -50℃ to 1768℃(-58℉ to 3214.4℉) | 500K |
| Thermocouples (TC) | S(PtRh10-Pt) | -50℃ to 1768℃(-58℉ to 3214.4℉) | 500K |
| Thermocouples (TC) | T(Cu-CuNi) | -270℃ to 400℃(-454℉ to 752℉) | 50K |
| Voltage transmitters(mV) | Millivolt transmitter(mV) | -75mV to 75V | 5mV |
| Voltage transmitters(mV) | Millivolt transmitter(mV) | -700mV to 200V | 20mV |
| ► ON Request | |||
Ordering code
| Certification | |||||||
| A B | Version for non hazardous areas NEPSI Ex ia CT4 | ||||||
| Configuration transmitter connection | |||||||
| A 1 2 3 4 | Standard factory configuration 3-wire | ||||||
| Configuration Configuration Configuration Configuration | connection TC connection RTD(2-wire) connection RTD(3-wire) connection RTD(4-wire) | ||||||
| Configuration temperature sensor | |||||||
| A 1 2 3 4 5 6 7 8 B E J K N R S T | Standard factory configuration Pt100 Pt100-200℃ to 850℃(-328°Fto 1562°F) Pt500-200℃ to 250℃(-328°F to 482"F) Pt500-200℃ to 250℃(-328F to 482°F) Pt1000-200℃ to 250℃(-328°F to 482°F) Cu50 -50℃ to 150℃(-58°F to 302°F) Cu100-50℃ to 150℃(-58°F to 302°F) Ni100-60℃ to 180℃ (-76°Fto 356°F) Ni500-60℃ to 180℃(-76°Fto 356°F) Type B 0℃ to 1820℃(-32°F to 3308°F Type E -270℃ to 1000℃(-454F to 1832°F) Type J-210℃ to 1200℃(-346°Fto 2192°F) Type K-270℃ to 1372℃(-454°F to 2501F) Type N -270℃ to 1300℃(-454°F to 2372°F) Type R -50℃ to 1768℃(-58°F to 3214.4°F) Type S-50℃ to 1768℃(-58°Fto 3214.4°F) Type T -270℃ to 400℃(-454°F to 752°F) | ||||||
| Configuration | |||||||
| A B C D | Standard factory configuration(Pt100/3-wire/0 to 100℃) Customised measurement range Customised expanded configuration for TC Customised expanded configuration for RTD | ||||||
| TMT192C | Order code(complete) For example:TMT192CA-AAAA | ||||||
SENSE INSTRUMENTS has specialized in the development and production of temperature transmitters for three decades. Our seasoned research and development team offers extensive expertise, ensuring that all our products include PC-side debugging software. We excel in providing customized software solutions to meet our clients' specific requirements, with OEM customization as a core strength. Our HART temperature transmitters come equipped with DD files and support debugging via handheld communicators.

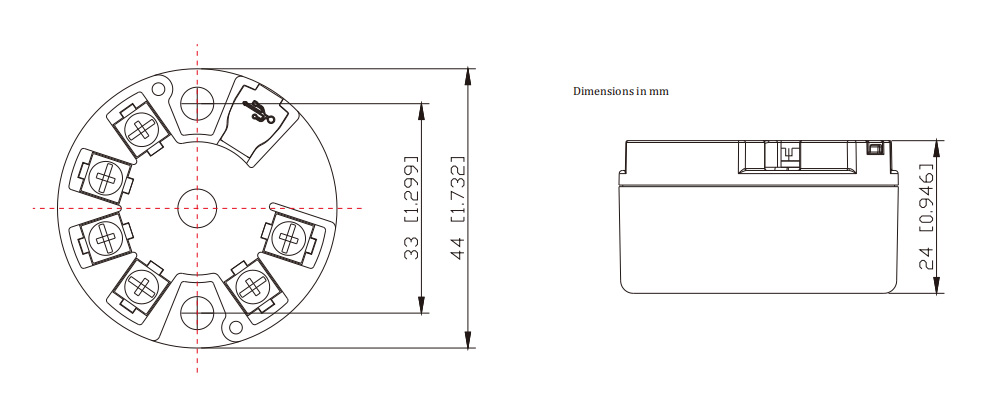

Dimensions

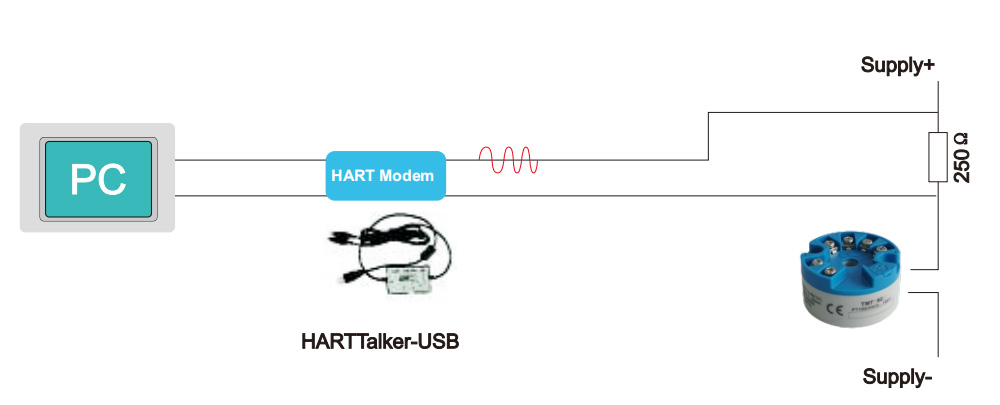

How to programme

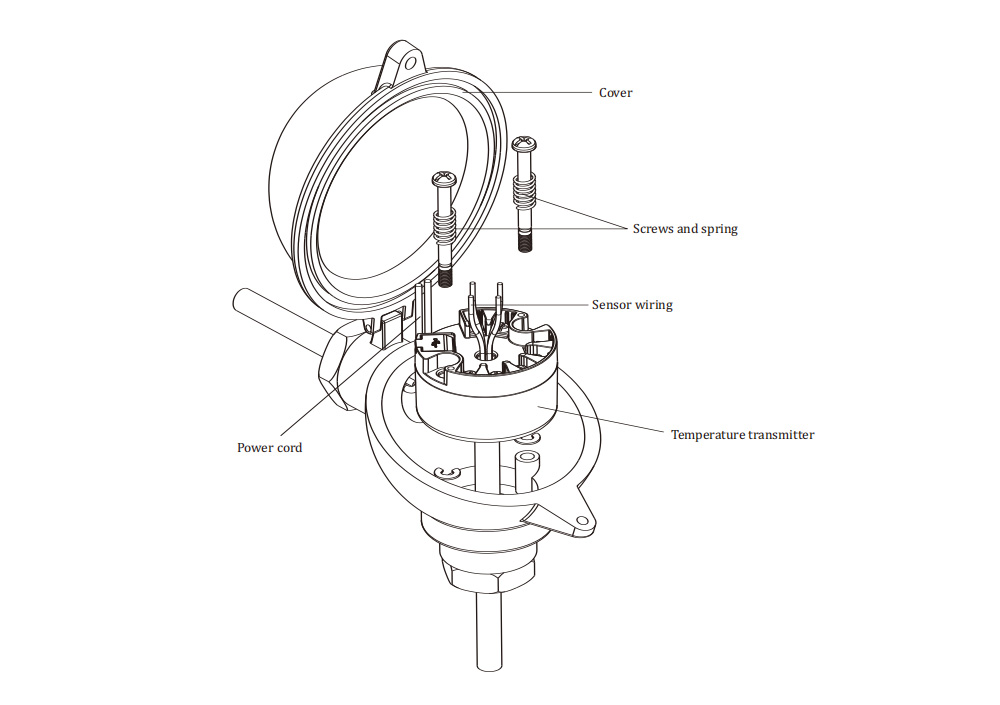

Install
|
