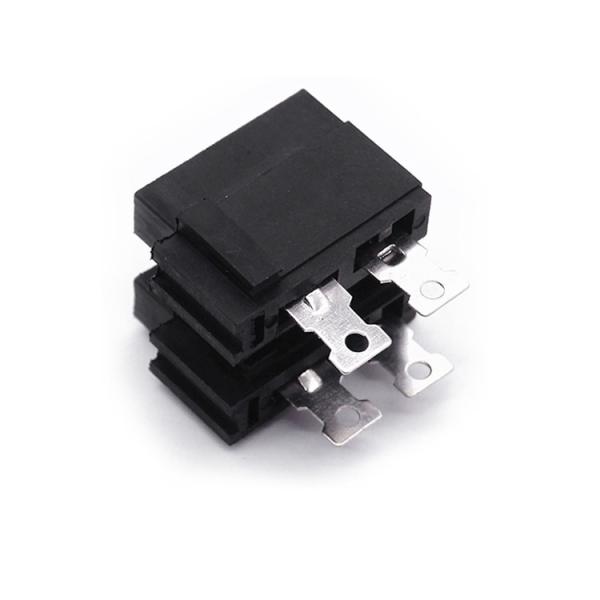

JEF-703E2A 32V 20A Panel Mount Fuse Holder for ATO ATC ATU Fuse

Categories Blade Fuse Holders
Model Number: JEF-703E2A
Place of Origin: China
MOQ: 1000
Price: USD $0.15~$0.3 per piece
Payment Terms: T/T
Supply Ability: 50K pieces per week
Delivery Time: 10 work days
Packaging Details: Carton
Item Name: Fuse Holder
Mount Type: Panel
P/N: JEF-703E2A
Voltage Rating: 32V
Current Rating: 20A
Applied to: ATO ATC ATU Standard Blade Fuses
RoHS Compliant: Yes
Body Material: PA66
Terminal Material: Tin plated Brass
Terminal Thickness: 0.4mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

JEF-703E2A 32V 20A Panel Mount Fuse Holder for ATO ATC ATU Fuse

JEF-703E2A 32V 20A Panel Mount Fuse Holder for ATO ATC ATU Fuse

Product Description

Item NameJEF-703E2A Fuse Holder
Suitable FuseATO ATC ATU Standard Blade Fuses
Mounting typePanel
Electrical Rating20A 32V
Body ColorBlack
Body materialPA66
Terminal materialnickel plated brass
Length24.2mm
Thickness6.3mm
Mounting hole dia2.5mm

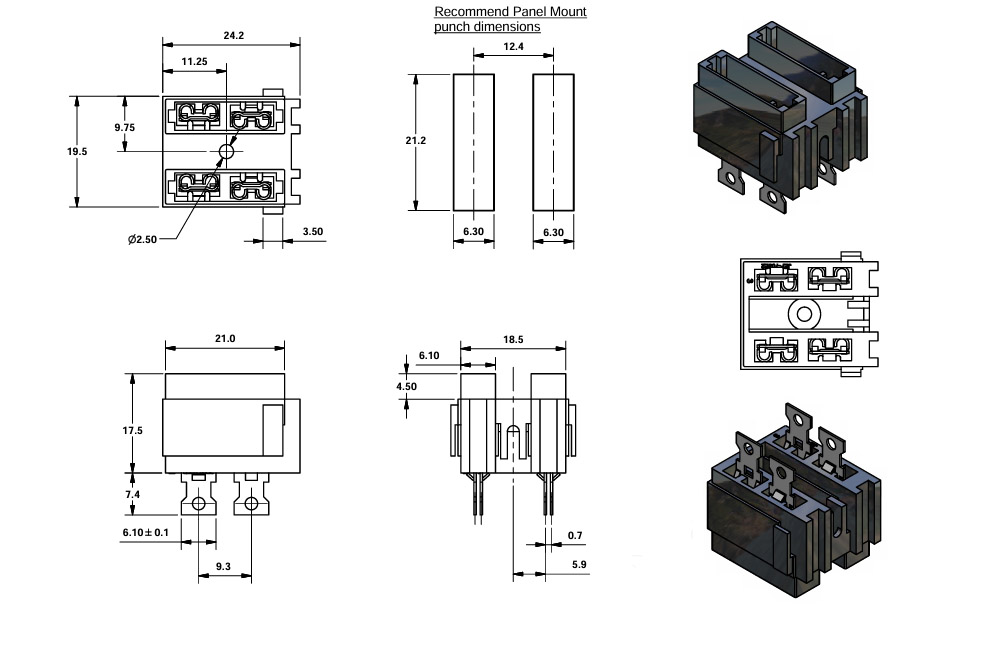

Drawing of JEF-703E2A Fuse Holder

JEF-703E2A 32V 20A Panel Mount Fuse Holder for ATO ATC ATU Fuse

Specification:
Electrial:Max. 20A 32V
Insulation Body:Nylon
Contac:0.4mm Brass Tin plated

Blade Type Fuse Sizes

Auto APM ATM Blade Fuse Mini Car Fuse 2A 3A 5A 7.5A 10A 15A 20A 25A 30A 35A 4

SizeCodeDimensions L × W × HCommon current
Micro2APT, ATR9.1 × 3.8 × 15.3 mm5A, 7.5A, 10A, 15A, 20A, 25A, 30A
Micro3ATL14.4 × 4.2 × 18.1 mm5A, 7.5A, 10A, 15A
LP-MiniAPS, ATT10.9 × 3.81 × 8.73 mm2A, 3A, 4A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A
MiniAPM, ATM10.9 × 3.6 × 16.3 mm2A, 3A, 4A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A, 35A
RegularAPR, ATC, ATO, ATU19.1 × 5.1 × 18.5 mm1A, 2A, 3A, 4A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A, 35A, 40A
MaxiAPX29.2 × 8.5 × 34.3 mm20A, 25A, 30A, 35A, 40A, 50A, 60A, 70A, 80A, 100A

Colors & Ratings

ColorCurrent rating
Black1 A
Grey2 A
Violet3 A
Pink4 A
Tan5 A
Brown7.5 A
Red10 A
Blue15 A
Yellow20 A
Transparent25 A
Green30 A
Blue-green35 A
Orange40 A
Red50 A
Blue60 A
Amber/tan70 A
Transparent80 A
Violet100 A

JEF-703E2A 32V 20A Panel Mount Fuse Holder for ATO ATC ATU Fuse

Applications

Car, Boat, Truck, SUV, Motorcycle, etc.


Shipping Term:

EXW, DDU, DDP, C&F, FOB


Shipping Methods:

Express, By Air, By Sea

Notice

1. Replace the fuse according to the rated current value indicated in the fuse box, and do not use a fuse with a higher rated current.

2. If the new fuse is blown immediately, this indicates that the circuit system may be faulty and should be repaired as soon as possible.

What are the different types of fuse holders?
Fuse holders can typically be grouped into four different categories:
  • Printed Circuit Board Fuse Holders
  • Panel Mount Fuse Holders
  • In-Line Fuse Holders
  • Stud Mount Fuse Holders
How do I choose a fuse holder?
The most important thing to remember for the fuse holder is that the voltage and current rating need to be higher than what will actually be present on the circuit.
If there is a 10 amp fuse, using a 20 amp fuse holder will be no problem; whereas using a 10 amp fuse holder with a 20 amp fuse will likely cause problems.
FAQ

Q: Are you trading company or manufacturer ?

A: We are a fuse product factory.

Q: How long is your delivery time?

A: Generally it is 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.

Q: Do you provide samples ? is it free?

A: Yes, we could offer samples for free charge but do not pay for the shipping.

Q: What is your terms of payment ?

A: 100% in advance, T/T.


Item NameJEF-703E2A Fuse Holder
Suitable FuseATO ATC ATU Standard Blade Fuses
Mounting typePanel
Electrical Rating20A 32V
Body ColorBlack
Body materialPA66
Terminal materialnickel plated brass
Length24.2mm
Thickness6.3mm
Mounting hole dia2.5mm
