12V XRNP1 XRNP2 XRNP3 XRNP6 0.2 0.3 0.5 1 2 3.15 4 5 6.3Amps 50kA H.R.C. High Voltage Fuses Link

Categories	Ceramic Tube Fuses
Model Number:	XRNP1 XRNP2 XRNP3 XRNP6
Place of Origin:	China
MOQ:	10
Price:	USD $5-10 per piece
Payment Terms:	T/T
Supply Ability:	10K pieces per month
Delivery Time:	20 days
Item Name:	XRNP HRC Fuse
Mounting Type:	cartridge
Tube material:	ceramic
Cap material:	nickel plated copper
Voltage Rating:	3.6KV 7.2KV 12KV 24KV 40.5KV
Current Rating:	0.2A 0.3A 0.5A 1A 2A 3.15A 4A 5A 6.3A
Interrupting Capacity:	31.5KA 50KA
Dia:	25mm 40mm 51mm
Length:	192mm 195mm 354mm 367mm 440mm 465mm

Contact Now

Add to Cart

Company Info.

Dongguan Reomax Electronics Technology Co., Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

12V XRNP1 XRNP2 XRNP3 XRNP6 0.2 0.3 0.5 1 2 3.15 4 5 6.3Amps 50kA H.R.C. High Voltage Fuses Link

XRNP1 XRNP2 XRNP3 XRNP6 12V 0.2 0.3 0.5 1 2 3.15 4 5 6.3Amps 50kA H.R.C. High Voltage Fuses Link

XRNP type high-voltage HRC current limiting fuse is mainly used for circuits with AC 50HZ, rated voltage of 3.6-40.5kV, and rated current up to 6.3A, which is used to protect transformers from overload and short circuit. Compliant with IEC282-1, BS and GB15166.2 standards.

The XRNP type high voltage HRC current limiting fuse is plug-in mounted. Easy to install and remove. The fuse body is made of high-resistance metal wire and low-resistance metal wire. They are sealed in fuse tubes filled with chemically treated high-purity quartz. The fuse tube is made of heat-resistant, high-strength ceramic or epoxy glass. When the circuit fails, the fuse blows and causes an arc, and the quartz sand immediately extinguishes the arc, sends a melting signal or automatically cuts off the circuit.

Customers can use the XRNP Model Current Limiting Fuse for transformer protection at an industry-leading price from us.

XRNP.pdf

Type	Rated Voltage (KV)	Rated Current (A)	Diameter (mm)	Length (mm)	Breaking Capacity
XRNP1	3.6KV	0.2A,0.3A,0.5A,1A,2A,3.5A,4A,5A,6.3A	25	195	31.5KA 50KA
XRNP1	7.2KV	0.2A,0.3A,0.5A,1A,2A,3.5A,4A,5A,6.3A	25	195	31.5KA 50KA
XRNP1	12KV	0.2A,0.3A,0.5A,1A,2A,3.5A,4A,5A,6.3A	25	195	31.5KA 50KA
XRNP1	24KV	0.2A,0.3A,0.5A,1A,2A,3.5A,4A,5A,6.3A	25	354	31.5KA 50KA
XRNP1	40.5KV	0.2A,0.3A,0.5A,1A,2A,3.5A,4A,5A,6.3A	25	465	31.5KA 50KA
XRNP2	3.6KV	0.5A,1A,2A,3.15A,4A,5A,6.3A,10A	51	192	31.5KA 50KA
XRNP2	7.2KV	0.5A,1A,2A,3.15A,4A,5A,6.3A,10A	51	192	31.5KA 50KA
XRNP2	12KV	0.5A,1A,2A,3.15A,4A,5A,6.3A,10A	51	192	31.5KA 50KA
XRNP2	24KV	0.5A,1A,2A,3.15A,4A,5A,6.3A	51	367	31.5KA 50KA
XRNP2	40.5KV	0.5A,1A,2A,3.15A,4A,5A,6.3A	51	442	31.5KA 50KA
XRNP3	40.5KV	0.5A,1A,2A,3.15A,4A,5A,6.3A	41	440	31.5KA 50KA
XRNP6	40.5KV	0.5A,1A,2A,3.15A,4A,5A,6.3A	40	440	31.5KA 50KA

Basic Parameters
Function: current limiting

Placement: indoors

Applicable objects: inductor, transformer

Rated voltage : 3.6KV, 7.2KV, 12KV, 24KV, 40.5KV

Rated current : 0.2A, 0.3A, 0.5A, 1A, 2A, 3.15A, 5A, 6.3A

Breaking Capacity: 31.5KA, 50KA

Length of fuse link: 192mm,195mm, 354mm, 367mm,440mm, 442mm, 465mm

Diameter of fuse link: Φ25mm, Φ40mm,Φ51mm

Customized length and diameter are available.

Features
High breaking capacity and good current limiting effect.

Low power consumption and low temperature rise.

The action characteristics are fast, and the ampere-second characteristic error is less than ±10%.

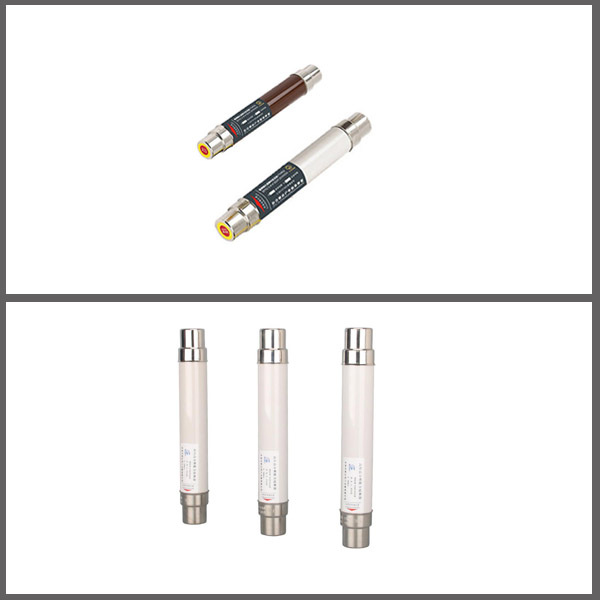

Pictures of XRNP HRC fuses
