| Categories | Stainless Steel Seamless Pipes |
|---|---|
| Brand Name: | YH |
| Model Number: | Seamless Pipes |
| Certification: | ISO PED CE TUV |
| Place of Origin: | CHINA |
| MOQ: | 100KGS |
| Price: | NEGOTIATION |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000TONS/PER MONTH |
| Delivery Time: | 15-40DAYS |
| Packaging Details: | PACKAGED IN SEA-WORTH BUNDLES,PACKAGED IN PLYWOOD CASES |
| Steel grade: | 304, 316, 321, 310S, Duplex |
| Corrosion Resistance: | High-Temperature Oxidation Resistance, Seawater Resistance |
| Standard: | AISI, ASTM, DIN, EN, GB |
| OD: | 1/8''-4'' |
| WT: | SCH 10S, SCH 40S, SCH 80S, SCH160 |
| Length: | 0.5M-15M OR AS REQUESTED |
| Applications: | Pharmaceutical Machinery, Aircraft and Aerospace, Automobile Industry, Heavy Industry |
| Performance Testing: | HT, RT, MT, PT, UT |
| Package: | PACKAGED IN SEA-WORTH BUNDLES OR PLYWOODE CASE OR AS REQUESTED |
| Company Info. |
| Zhejiang Yuhao Stainless Steel Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

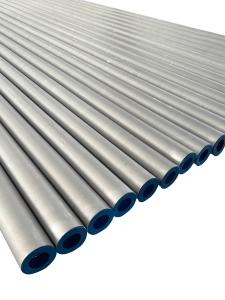

1/2"-8", 304, Schedule 10, ASTM A312 Economical Stainless Steel Seamless Pipe
►Products Information
Stainless steel and Ni-based alloy pipes and tubes are highly valued for their superior corrosion resistance, heat resistance, and low-temperature performance, making them essential for demanding applications in petroleum refining, petrochemicals, and energy sectors such as power and gas. Their exceptional durability and strength have also led to their widespread use in architectural projects, where their polished and refined finish adds to their visual appeal. Moreover, these materials are increasingly utilized in high-cleanliness industries, including semiconductor and liquid-crystal manufacturing equipment, where maintaining strict cleanliness standards is vital for achieving maximum operational efficiency.
►Product Size
| STAINLESS STEEL (ASTM/ANSI) | ||||||||||
| B | O.D | SCH 5S | SCH 10S | SCH 10 | SCH 20S | SCH 40S | SCH 40 | STD | SCH 80S | SCH 80 |
| 1/8" | 10.29 | - | 1.24 | 1.24 | - | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 |
| 1/4" | 13.72 | - | 1.65 | 1.65 | - | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 |
| 3/8" | 17.15 | - | 1.65 | 1.65 | - | 2.31 | 2.31 | 2.31 | 3.2 | 3.2 |
| 1/2" | 21.34 | 1.65 | 2.11 | 2.11 | - | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 |
| 3/4" | 26.67 | 1.65 | 2.11 | 2.11 | - | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 |
| 1" | 33.4 | 1.65 | 2.77 | 2.77 | - | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 |
| 1 1/4" | 42.16 | 1.65 | 2.77 | 2.77 | - | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 |
| 1 1/2" | 48.26 | 1.65 | 2.77 | 2.77 | - | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 |
| 2" | 60.33 | 1.65 | 2.77 | 2.77 | - | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 |
| 2 1/2" | 73.03 | 2.11 | 3.05 | 3.05 | - | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 |
| 3" | 88.9 | 2.11 | 3.05 | 3.05 | - | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 |
| 3 1/2" | 101.6 | 2.11 | 3.05 | 3.05 | - | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 |
| 4" | 114.3 | 2.11 | 3.05 | 3.05 | - | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 |
| 5" | 141.3 | 2.77 | 3.4 | 3.4 | - | 6.55 | 6.55 | 6.55 | 9.53 | 9.53 |
| 6" | 168.28 | 2.77 | 3.4 | 3.4 | - | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 |
| 8" | 219.08 | 2.77 | 3.76 | 3.76 | 6.35 | 8.18 | 8.18 | 8.18 | 12.7 | 12.7 |
| 10" | 273.05 | 3.4 | 4.19 | 4.19 | 6.35 | 9.27 | 9.27 | 9.27 | 12.7 | 15.09 |
| 12" | 323.85 | 3.96 | 4.57 | 4.57 | 6.35 | 9.52 | 10.31 | 9.52 | 12.7 | 17.48 |
| 14" | 355.6 | 3.96 | 4.78 | 6.35 | 7.92 | - | 11.13 | 9.52 | - | 19.05 |
| 16" | 406.4 | 4.19 | 4.78 | 6.35 | 7.92 | - | 12.7 | 9.52 | - | 21.44 |
| 18" | 457.2 | 4.19 | 4.78 | 6.35 | 7.92 | - | 14.27 | 9.52 | - | 23.83 |
| 20" | 508 | 4.78 | 5.54 | 6.35 | 9.52 | - | 15.09 | 9.52 | - | 26.19 |
| 22" | 558.8 | 4.78 | 5.54 | 6.35 | 9.52 | - | 15.09 | 9.52 | - | 28.58 |
| 24" | 609.6 | 5.54 | 6.35 | 6.35 | 9.52 | - | 17.48 | 9.52 | - | 30.96 |
| 26" | 660.4 | - | 7.92 | 12.7 | - | 17.48 | 9.52 | - | ||

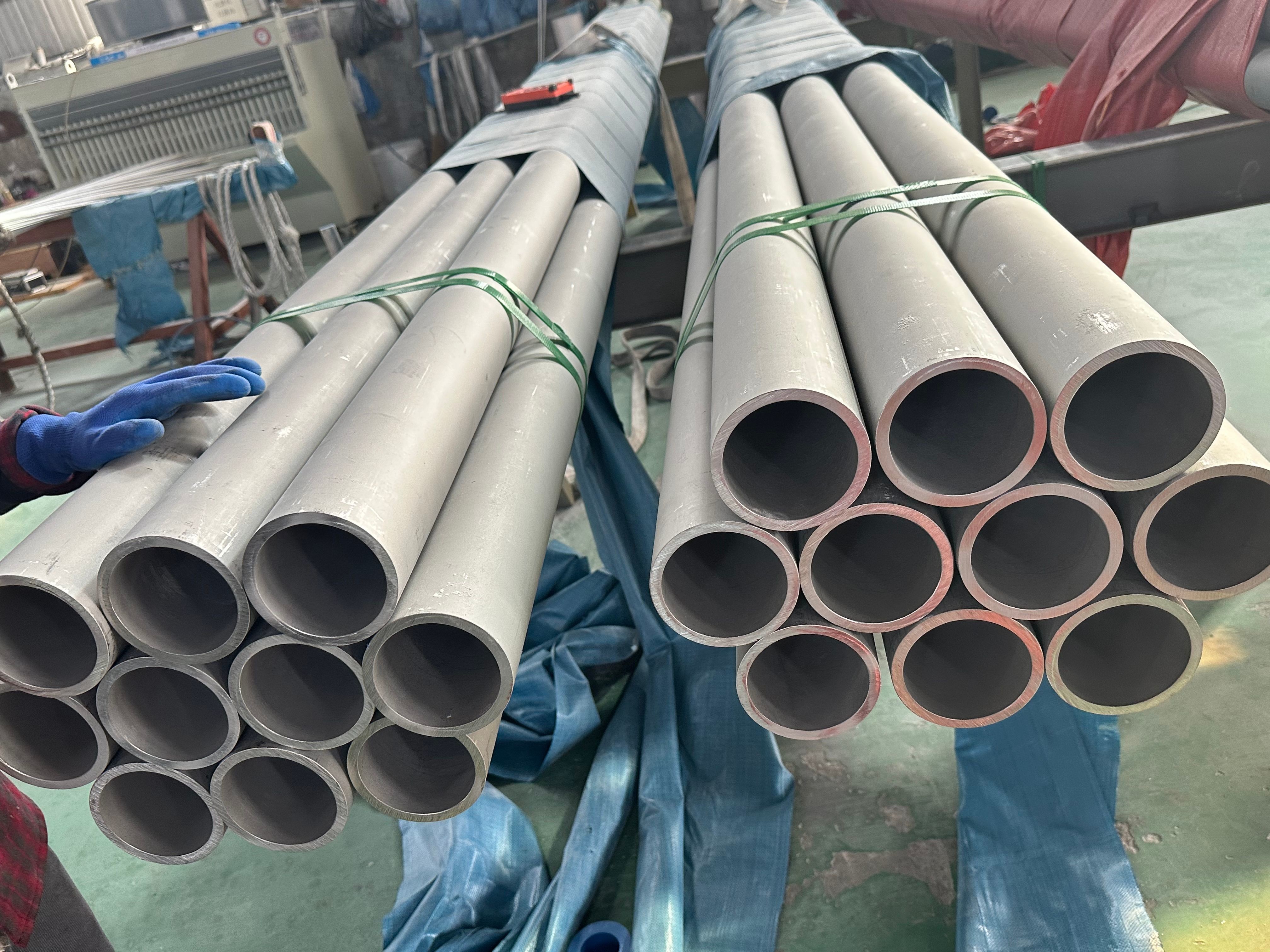

►Factory Shoot
►FAQ
Q1: Can you supply what's the service?
A: We can supply the kinds of matel raw materies and products,such as pipes,pipe fittings,flanges,coil,sheet,round bar and so on...
Q2: Are you manufacturer or trading company?
A: We are not only manufacturer but also a trading company,we have more than 12years export experience.
Q3: Can I customize products?
A: Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.
Q4: What is your minimum order quantity?
A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.
Q5: Can you provide the free samples?
A: We can supply the free samples but the sample express freight need paid by yourside.
|
