| Categories | Stainless Steel Seamless Pipes |
|---|---|
| Brand Name: | YH |
| Model Number: | Seamless Pipes |
| Certification: | ISO PED CE TUV |
| Place of Origin: | CHINA |
| MOQ: | 100KGS |
| Price: | NEGOTIATION |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000TONS/PER MONTH |
| Delivery Time: | 15-40DAYS |
| Packaging Details: | PACKAGED IN SEA-WORTH BUNDLES,PACKAGED IN PLYWOOD CASES |
| Steel grade: | 304, 316, 321, 310S, Duplex |
| Corrosion Resistance: | High-Temperature Oxidation Resistance, Seawater Resistance |
| Standard: | AISI, ASTM, DIN, EN, GB |
| OD: | 1/8''-4'' |
| WT: | SCH 10S, SCH 40S, SCH 80S, SCH160, SCH XXS. |
| Length: | 0.5M-15M OR AS REQUESTED |
| Applications: | Heat Exchanger, Pressure Vessel, Condenser, Water Conservancy, Electric Power |
| Surface: | Bright Annealed, Pickled, Polished, Sandblasted |
| Package: | PACKAGED IN SEA-WORTH BUNDLES OR PLYWOODE CASE OR AS REQUESTED |
| Company Info. |
| Zhejiang Yuhao Stainless Steel Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
ISO9001 Stainless Steel Seamless Pipe ASME SB677 ASTM B677 TP904L UNS N08904
►Products Information
Stainless steel and Ni-based alloy pipes and tubes are prized for their outstanding corrosion resistance, heat resistance, and low-temperature capabilities, making them indispensable in harsh environments such as petroleum refining, petrochemicals, and energy industries, including power and gas. Their exceptional durability and strength have also made them a preferred choice in architectural applications, where their sleek and polished appearance enhances aesthetic value. Additionally, these materials are increasingly employed in high-cleanliness sectors, particularly in semiconductor and liquid-crystal manufacturing equipment, where adhering to strict cleanliness standards is crucial for ensuring optimal operational efficiency.
►Product Size
| STAINLESS STEEL (ASTM/ANSI) | ||||||||||
| B | O.D | SCH 5S | SCH 10S | SCH 10 | SCH 20S | SCH 40S | SCH 40 | STD | SCH 80S | SCH 80 |
| 1/8" | 10.29 | - | 1.24 | 1.24 | - | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 |
| 1/4" | 13.72 | - | 1.65 | 1.65 | - | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 |
| 3/8" | 17.15 | - | 1.65 | 1.65 | - | 2.31 | 2.31 | 2.31 | 3.2 | 3.2 |
| 1/2" | 21.34 | 1.65 | 2.11 | 2.11 | - | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 |
| 3/4" | 26.67 | 1.65 | 2.11 | 2.11 | - | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 |
| 1" | 33.4 | 1.65 | 2.77 | 2.77 | - | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 |
| 1 1/4" | 42.16 | 1.65 | 2.77 | 2.77 | - | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 |
| 1 1/2" | 48.26 | 1.65 | 2.77 | 2.77 | - | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 |
| 2" | 60.33 | 1.65 | 2.77 | 2.77 | - | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 |
| 2 1/2" | 73.03 | 2.11 | 3.05 | 3.05 | - | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 |
| 3" | 88.9 | 2.11 | 3.05 | 3.05 | - | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 |
| 3 1/2" | 101.6 | 2.11 | 3.05 | 3.05 | - | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 |
| 4" | 114.3 | 2.11 | 3.05 | 3.05 | - | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 |
| 5" | 141.3 | 2.77 | 3.4 | 3.4 | - | 6.55 | 6.55 | 6.55 | 9.53 | 9.53 |
| 6" | 168.28 | 2.77 | 3.4 | 3.4 | - | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 |
| 8" | 219.08 | 2.77 | 3.76 | 3.76 | 6.35 | 8.18 | 8.18 | 8.18 | 12.7 | 12.7 |
| 10" | 273.05 | 3.4 | 4.19 | 4.19 | 6.35 | 9.27 | 9.27 | 9.27 | 12.7 | 15.09 |
| 12" | 323.85 | 3.96 | 4.57 | 4.57 | 6.35 | 9.52 | 10.31 | 9.52 | 12.7 | 17.48 |
| 14" | 355.6 | 3.96 | 4.78 | 6.35 | 7.92 | - | 11.13 | 9.52 | - | 19.05 |
| 16" | 406.4 | 4.19 | 4.78 | 6.35 | 7.92 | - | 12.7 | 9.52 | - | 21.44 |
| 18" | 457.2 | 4.19 | 4.78 | 6.35 | 7.92 | - | 14.27 | 9.52 | - | 23.83 |
| 20" | 508 | 4.78 | 5.54 | 6.35 | 9.52 | - | 15.09 | 9.52 | - | 26.19 |
| 22" | 558.8 | 4.78 | 5.54 | 6.35 | 9.52 | - | 15.09 | 9.52 | - | 28.58 |
| 24" | 609.6 | 5.54 | 6.35 | 6.35 | 9.52 | - | 17.48 | 9.52 | - | 30.96 |
| 26" | 660.4 | - | 7.92 | 12.7 | - | 17.48 | 9.52 | - | ||

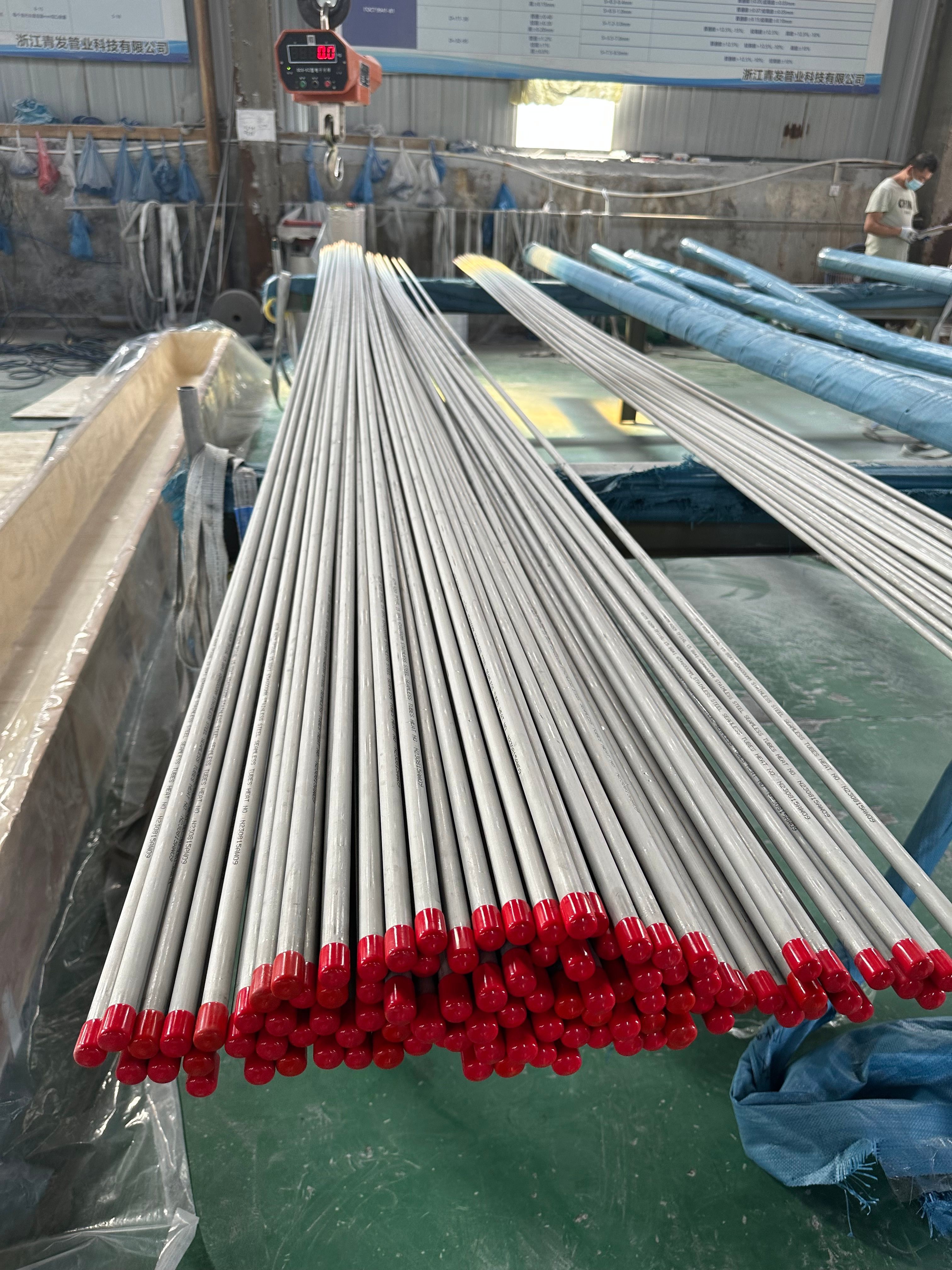

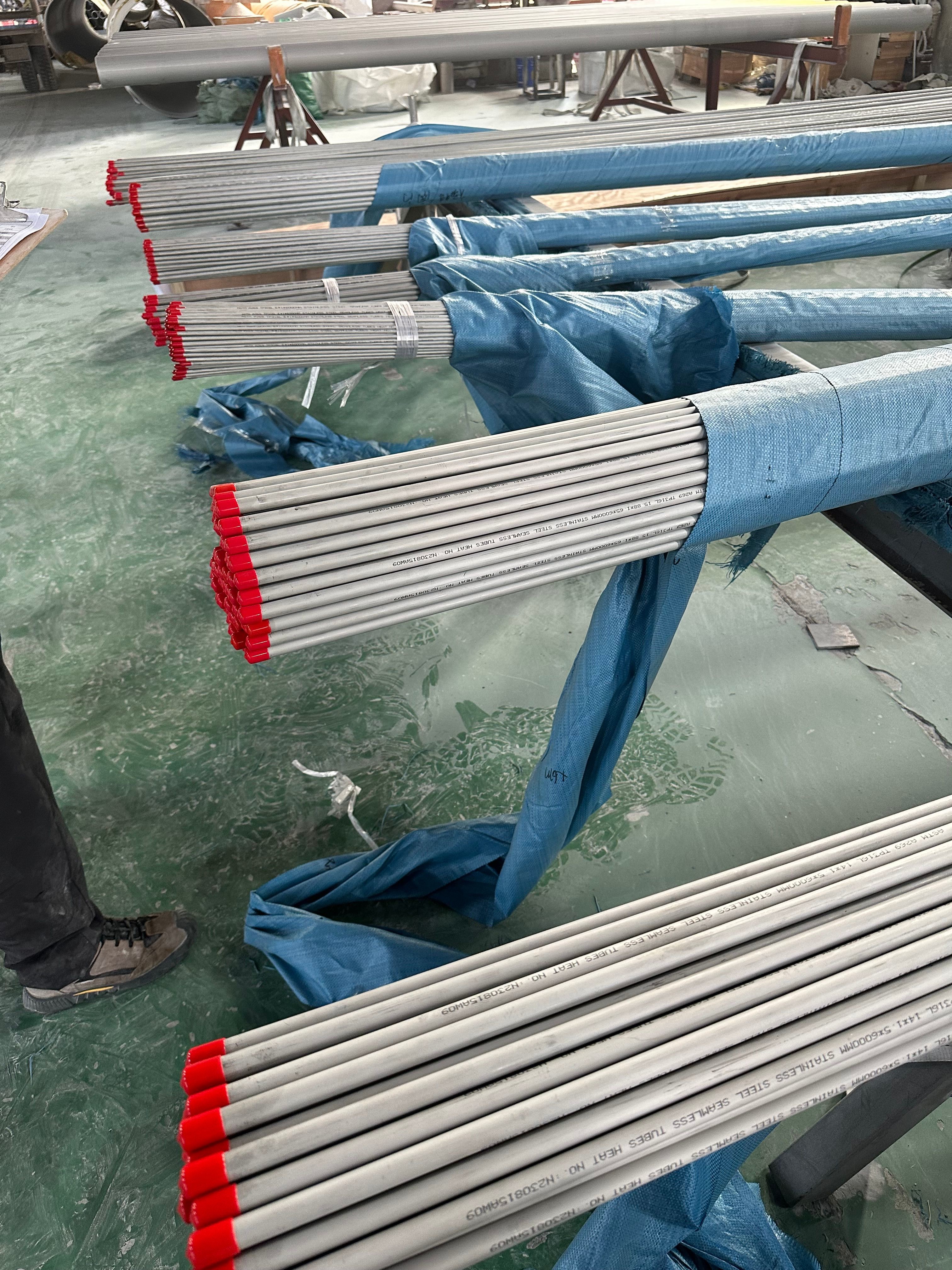

►Factory Shoot
►FAQ
Q1: Can you supply what's the service?
A: We can supply the kinds of matel raw materies and products,such as pipes,pipe fittings,flanges,coil,sheet,round bar and so on...
Q2: Can you provide the free samples?
A: We can supply the free samples but the sample express freight need paid by yourside.
Q3: Can I customize products?
A: Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.
Q4: How do you ensure product quality?
A: We have a dedicated team of experts who rigorously inspect each stage of the production process. Every product undergoes quality testing at our factory before it is shipped.
Q5: Where is your factory located?
A: Our factory is located in wenzhou City, zhejiang Province,China.
|
