| Categories | Copper Alloy Sheet |
|---|---|
| Brand Name: | CHINA STEEL UNION |
| Model Number: | thickness 0.1mm-200mm |
| Certification: | ISO9001,SGS, ASTM, ASME |
| Place of Origin: | Copper Alloy Sheet |
| MOQ: | 10Kilogram |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 1metric tons per month |
| Delivery Time: | 5-7Days |
| Packaging Details: | Steel strip + kraft paper + fumigated wooden box export exquisite packaging |
| Length: | Cusmorized |
| Price Term: | FOB, Ex-work, CIF, CFR, etc. |
| Trading Termtrading Term: | CIF CFR FOB EXW |
| Standard: | ASTM B127 |
| Form: | Plate |
| Application: | Industrial or Decorative |
| Stock: | In Stock |
| Type: | Plate |
| Edge: | Mill Edge Slit Edge |
| Sample: | Free Provide |
| Payment Term: | T/T L/C Western Union |
| Trade Terms: | FOB,CIF,CRF,EXW |
| Lead Time: | 7-10Days |
| Thickness: | 2.5mm-800mm |
| Alloy Or Not: | Alloy |
| Company Info. |
| JIANGSU CHINA STEEL UNION INDUSTRIAL CO.,LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |

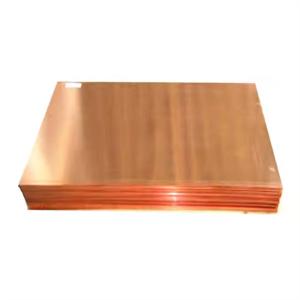

Corrosion-Resistant Copper Alloy Sheets 1000x2000mm - Marine Engineering Applications
Marine-Grade Copper Alloy Sheets are designed for harsh saltwater environments, offering unmatched corrosion resistance, high strength, and longevity. Available in 1000x2000mm dimensions and compliant with ASTM B171, EN 1652, and DNV-GL standards, these sheets are ideal for shipbuilding, offshore platforms, and desalination plants. Made from C61400 aluminum bronze alloy (CuAl9Fe3), they resist biofouling, pitting, and erosion while maintaining structural integrity under extreme marine conditions.
Key Advantages:
| Parameter | Details |
|---|---|
| Material | C61400 Aluminum Bronze (Cu: 86–89%, Al: 8–10%, Fe: 2–4%, Ni: ≤1.5%) |
| Thickness Range | 1.5–25mm (±0.1mm for ≤6mm, ±0.5% for >6mm) |
| Sheet Dimensions | 1000x2000mm (±2mm) + custom sizes up to 2500x6000mm |
| Mechanical Properties | Tensile Strength: 600–750 MPa, Hardness: 170–220 HB, Elongation: 15–25% |
| Corrosion Resistance | 1,000-hour salt spray (ASTM B117) + 20-year seawater exposure testing |
| Surface Finish | Mill finish (Ra ≤3.2µm), polished (Ra ≤0.8µm), or epoxy-coated |
| Certifications | ASTM B171, DNV-GL, NORSOK M-630, REACH, Lloyd’s Register Type Approval |
| Key Applications | Ship hulls, offshore rig components, desalination plant heat exchangers |
Competitive Benefits:
| Application | Use Cases |
|---|---|
| Shipbuilding | Hull plating, propeller shafts, and ballast water system components. |
| Offshore Oil & Gas | Platform splash zone cladding, subsea pipeline connectors. |
| Desalination Plants | Heat exchanger plates, brine heater tubes, and reverse osmosis housings. |
| Marine Renewable Energy | Tidal turbine blades, offshore wind tower flanges, and wave energy buoys. |
| Aquaculture | Fish farm cage frames, seawater intake grilles, and feeding system parts. |
| Port Infrastructure | Dock fender panels, lock gate hinges, and navigation aid mounts. |
| Naval Defense | Submarine pressure hulls, sonar dome covers, and shipboard weapon mounts. |
FAQ
1. Who are we?
Our headquarters is located in Jiangsu, China. Since 2010, we have
sold to the domestic market (30.00%), North America (10.00%), South
America (10.00%), Southeast Asia (10.00%), South Asia (10.00%), and
Africa (5.00%) , Middle East (5.00%), Central America (5.00%),
Northern Europe (5.00%), Oceania (3.00%), Western Europe (3.00%),
Southern Europe (2.00%), Eastern Europe (00.00%), East Asia
(00.00%) . There are approximately 11-50 people in our office in
total.
2. How do we ensure quality?
There are always pre-production samples before mass production;
Always conduct final inspection before shipment;
3. What can you buy from us?
Copper Alloy Sheet,Copper Round Rod, stainless steel pipe,
stainless steel coil, stainless steel strip, wear-resistant plate,
galvanized steel plate
4. Why should you buy from us instead of other suppliers?
The company introduces advanced technology and equipment, and its
products are exported to Western countries such as the United
Kingdom and the United States. It has strong technical force and
experienced technical and management personnel.
5. What services can we provide?
Accepted delivery terms: FOB, CFR, CIF, EXW;
Accepted payment currencies: USD;
Accepted payment methods: T/T, L/C, cash;
Languages spoken: English, Chinese
|
