Round Sanitary Stainless Steel Pipe 2B Finish 3-A 72-03 316L Stainless Steel Tubing

Categories	Stainless Steel High Pressure Pipe
Brand Name:	Baosteel,TISCO，WISCO，CHINA STEEL UNION
Model Number:	DN10-DN800
Certification:	ISO9001,SGS, ASTM, ASME
Place of Origin:	CHINA
MOQ:	1000Kilogram
Price:	Negotiable
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	800000KG/15Days
Delivery Time:	5-7Days
Packaging Details:	Steel strip + kraft paper + fumigated wooden box export exquisite packaging
Material:	Sanitary Stainless Steel Pipe
Shape:	Round
Durability:	High
Pressure Rating:	High Pressure
Temperature Resistance:	High
Installation Method:	Welding
Finish:	Polished
Corrosion Resistance:	High
Application:	Oil and Gas Industry
Usage:	Industrial
Weight:	Light

Contact Now

Add to Cart

Company Info.

JIANGSU CHINA STEEL UNION INDUSTRIAL CO.,LTD.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

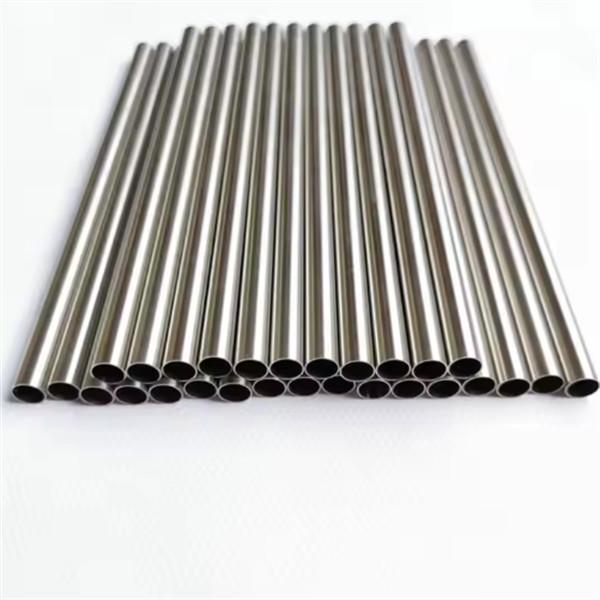

Round Sanitary Stainless Steel Pipe 2B Finish 3-A 72-03 316L Stainless Steel Tubing

Sanitary Stainless Steel High Pressure Pipe 2B Finish, 3-A 72-03, Pharma-Grade, CIP Systems

Sanitary Stainless Steel High-Pressure Pipes (2B Finish) by Jiangsu China Steel Union Industrial Co., Ltd are precision-engineered for ultra-hygienic applications in pharmaceutical, biotech, and food-grade CIP (Clean-in-Place) systems. Compliant with 3-A 72-03 standards, these electropolished 316L stainless steel pipes feature a smooth 2B surface finish (Ra ≤0.5µm) to eliminate microbial harborage and ensure compliance with FDA, EU GMP, and WHO Annex 1 requirements. Designed for pressures up to 100 bar, the seamless construction and orbital welding compatibility guarantee leak-free performance in high-purity water, sterile media transfer, and aggressive CIP/SIP (Steam-in-Place) cycles. Ideal for aseptic processing, these pipes resist corrosion from acidic/alkaline detergents, alcohols, and high-temperature steam (up to 130°C).

2. Detailed Specifications

Parameter	Details
Material	316L Stainless Steel (UNS S31603 / 3-A 72-03)
Element Composition	Cr: 16–18%, Ni: 10–14%, Mo: 2–3%, C: ≤0.03%, Mn: ≤2%, Si: ≤1%, P: ≤0.045%, S: ≤0.03%, Fe: Balance
Dimensions	OD: 1/2"–4" (12.7–101.6mm), Wall Thickness: 1.65–4.78mm (Sch10S–40S), Length: 1–6m
Certifications	3-A 72-03, FDA CFR 21, EHEDG, ISO 13485 (Medical Devices), ASME BPE, EC1935/2004 (Food Contact)
Mechanical Properties	Tensile Strength: ≥485 MPa Yield Strength: ≥170 MPa Elongation: ≥40% Hardness: ≤90 HRB
Pressure Rating	100 bar at 20°C (Hydrostatic Test: 150 bar)
Surface Finish	2B Cold-Rolled Finish, Electropolished (Ra ≤0.5µm), Passivated per ASTM A967
Applications	Bioreactor piping, WFI (Water for Injection) distribution, vaccine production lines, CIP spray balls

3. Advantages of Importing Our Product

Pharma-Grade Compliance: Full 3-A 72-03 and ASME BPE documentation for FDA/EU audits.
Cost Efficiency: 30% lower pricing than U.S./EU suppliers with Jiangsu’s in-house electropolishing and automated orbital welding lines.
Fast Delivery: 10,000-ton annual capacity; 7-day lead time for 3-A certified orders from Shanghai or Frankfurt hubs.
Zero Contamination: 100% PMI testing, internal visual inspection (IVP), and endotoxin-free certification (<0.25 EU/mL).
Custom Solutions: Sanitary clamps (Tri-Clamp/DIN 11851), sterile-packaged tubes, and validated cleanroom assembly.

4. Key Applications

Biopharma Processing: High-purity media transfer lines, buffer preparation, and chromatography skids.
CIP/SIP Systems: High-velocity caustic/acid circulation loops for tank and pipeline sanitation.
Vaccine Production: Sterile filling lines, viral vector bioreactors, and lyophilization systems.
Dairy & Beverage: Aseptic milk processing, juice blending, and carbonated drink filling.
Cosmetic Liquids: High-purity transfer of fragrances, emulsions, and preservative-free formulations.

Jiangsu China Steel Union Industrial Co., Ltd delivers 3-A 72-03-certified sanitary stainless steel pipes that redefine hygiene, durability, and compliance for global pharmaceutical, food, and cosmetic industries requiring uncompromised cleanability and operational safety.

FAQ

Q1. Where is your factory ?
A1: Our company's processing center is located in Wuxi, Jiangsu, China.
Which is well equipped with kinds of machines, such as laser cutting machine,mirror polishing machine and so on.We can provide a wide range of personalized services according to the customers' needs.
Q2. What are your company's main products ?
A2: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q3. How do you control quality ?
A3: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q4. What are the advantages of your company ?
A4: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q5. How many coutries you already exported ?
A5: Exported to more than 50 countries mainly from America, , UK, Kuwait, Egypt, , Turkey, Jordan,
India, etc.
Q6. Can you provide sample ?
A6: Small samples in store and can provide the samples for free.
Customized samples will take about 5-7days.
