Big Size Semiconductor Cvd Diamond Synthetic Lab Grown Diamond For Dressing Tools

big size Semiconductor Cvd Diamond Wafer Growing Mpcvd Reactor Synthetic lab grown Polycrystalline cvd Diamond Wafer

Description of CVD diamond:

Product	Dimensions	Application
CVD diamond round	3030mm thickness: 0.21.5mm
CVD diamond dresser bar	ThicknessWidthLength 0.6mm0.6mm3-8mm 0.8mm0.8mm3-8mm 1mm1mm3-8mm 1.5mm2mm3-8mm 2mm2mm3-8mm	Dressing tools
CVD diamond Wafers	Diameter: up to 120mm Avaliable polish: single side or double side
CVD diamond Heat Spreaders 10*10mm²	Thickness: 0.2*0.8 mm² Avaliable polish: single side or double side	Cooling of High-Power Electronic Devices. e.g: Laser Diodes
CVD diamond Cubes/Block	ThicknessWidthLength 0.8mm0.8mm0.8mm	dressing tools
CVD diamond Die Blanks	Shape: Hexagon Inscribed circle DimensionThickness( mm² ) 1.50.7, 1.50.8, 2.00.8, 2.0*1.0	Drawing die
CVD diamond / WC piece	Triangle, Thickness: 1.6mm diamond layer thickness: 0.3mm-0.7mm AngleSide Length: 90º4.5mm, 80º4.5mm, 70º4.5mm, 35º*4.5mm	Machining non-ferrous,plastics, and composite materials

1). CVD dress bar

With excellent thermal properties, CVD diamond dresser is supplied as small durable "bars" , which integrate well into traditional dresser manufacturing techniques.

Its polycrystalline nature means there is no requirement for special orentations to be set.

Since dressing ability is unaffected by the diamond orientation in the dressing tool

CVD(Chemical vapor diamond) dress bar

2). CVD diamond Cubes

Widely used in making wheel dresser

3). CVD compound

Adopts the high qulity fine size CVD diamond, welded them hard with WC to make high precision machine tools.

It is close to crystal diamond in luminance and life time of cutting tools.

4). CVD Diamond Wafer

The thick film-supported CVD diamond material can be used in machine cutters, diamond dressers,

diamondwire drawing die blanks, electronic components heat spreaders and other fields.

5). CVD diamond Heat Spreaders

Product Descrption:

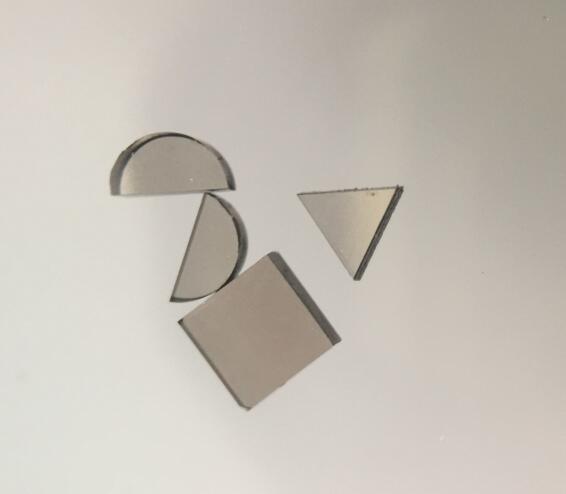

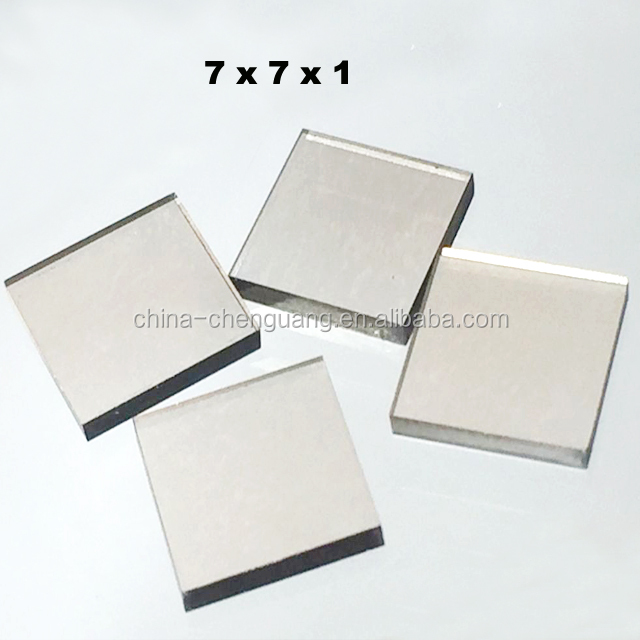

MONO/SINGLE CRYSTALLINE CVD diamond

Size:- 1X 1 mm to 20 X 20 mm,

Thickness:- 0.3mm to 3mm

Grade and application

Electronic (for Quantum optics, radiation detector, etc.)
Optical(for precision tools, window, anvil, sensor, etc.)
Thermal/Mechanical (for conventional tools)

Surface

As Grown or Laser Cut
Polished (Ra< 5nm, Flatness < 1 fringes @ 633nm)
Lapped (Ra< 200nm, Flatness < 1 fringes @ 633nm)

Type/Orientation

Top (100), Customized for Scalpels (based on 2 and 4 point configuration)
Customized shapes (based on given designs)

Edges

Laser cut or polished

Advantages

1.Large size
2.Hardness and high mechanical stability
3. Scratch proof and wear resistance.
4.Wide spectral transparency UV to THz
5.High Strength and Great Thermal Stability
6.White Color (from brown to colorless)
7.Other quality index could reach the international standard.

Detailed Images

hpht or cvd diamond for Record cutting stylus and Stylus Tip 4*0.7*0.7 4*0.2*0.2
