API DIN JIS Forged Steel Flange Gate Valves For Manufacturing

Categories Gate Valve
Brand Name: SND FOUNDRY
Model Number: Gate valve
Certification: ISO / CE
Place of Origin: Zhejiang, China
MOQ: 1 pcs
Payment Terms: L/C, T/T
Supply Ability: 100,000 pcs.
Delivery Time: 20 days
Packaging Details: Wood Box
Price: Negotiable
Product Name: API DIN JIS Forged Steel Flange Gate Valves For Manufacturing
Key Words: Gate Valves
Power: Hydraulic, Solenoid, Pneumatic, Manual, Electric power+manual
Media: Oil, Water, Gas, Air, Liquid
Temperature of media: Medium Temperature, Normal Temperature, High Temperature, Low Temperature, -10-200℃
Body Material: Forged Steel
Standard: API/DIN/JIS OR nonstandard
Pressure: High Pressure, Medium Pressure, Low Pressure
connection: Flanged
Warranty: 18 months
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

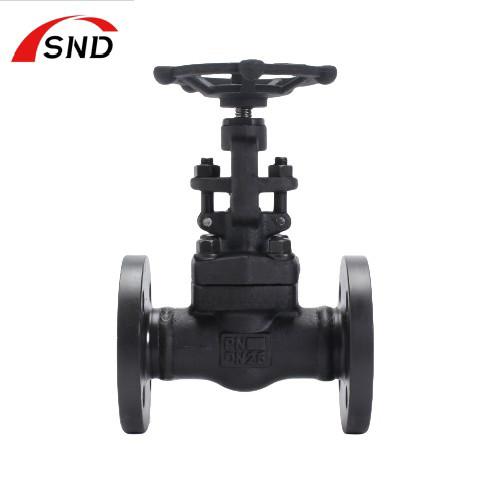

API DIN JIS Forged Steel Flange Gate Valves For Manufacturing

API DIN JIS Forged Steel Flange Gate Valves For Manufacturing


Introduction to gate valves


A gate valve is a gate that opens and closes. The gate moves in a direction perpendicular to the direction of the fluid. The gate valve can only be fully opened or fully closed, and cannot be adjusted or throttled. The gate valve is sealed by contact between the valve seat and the gate. Usually, the sealing surface is welded with metal materials to increase wear resistance, such as 1Cr13, STL6, stainless steel, etc. The gate has rigid gates and elastic gates. Depending on the gate, the gate valve is rigid gate valve or elastic gate valve.


Gate valve Size Information


Size: 1/2” -2” (DN15~DN50)
Pressure level: 150LB-600LB/PN16~PN100/10K~60K)
Material: A105, FL2, F11, F22, F5, F304, F316, F51/F53, F321, C3, C5, C95800
Applicable temperature: -29℃~429℃.
Applicable media: water, steam, oil, natural gas, etc.


Feature


Pressure Level1.0—42MPa
caliberDN10~50,NPS 1/2~2
ConnectionFlange, butt welding, thread, etc.
Applicable temperature-196℃~700℃
Body MaterialWCB,ZG1Cr18Ni9Ti,ZG1Cr18Ni12M
o2Ti,CF8(304),CF3(304L),CF8M(316),CF3M(316L),Ti
Drive modeManual, bevel gear drive, pneu
matic, electric, hydraulic, gas-hydraulic, electro-hydraulic
standard(GB),(ANSI,ASME),(JIS),(DIN)

Who we are


SND has been producing and selling metal goods for about 20 years.By using manufacturing techniques including sand casting, lost wax casting, lost foam casting, and precision machining, the company has been supplying goods made of materials like cast iron, steel, stainless steel, aluminum, etc. Additionally offered are surface finishing and assembly services.

Our company has successfully created products in a variety of industries, including automotive, rail transportation, agricultural machinery, chemical, energy, electricity, water, air compressor, and construction, thanks to our consistent efforts over the past few years.

Our factories' ISO9001-accredited quality control systems guarantee a consistent and dependable quality for each and every component.
Spectrometer, ultrasonic, magnetic, permeability, elongation, tensile/yield strength, and other inspections are carried out as part of routine production procedures.
