Single Air Rubber Bellow Air Lift 58218 Goodyear 1B5-500 for Material Transfer

Single Air Rubber Bellow Air Lift 58218 Goodyear 1B5-500 for Material Transfer

The Introduction of Air Springs

Air bellows are an excellent solution for short stroke and high thrust single-acting actuator needs. Constructed with fabric-reinforced synthetic rubber and available in one, two, or three convolutions based on the stroke and model, they excel in performance. Unlike conventional pneumatic cylinders, they lack reciprocating metal parts, delivering virtually frictionless operation and superior efficiency.

1K130070 Air Springs Specifications and Technical Datas

Design Height: 70 mm

Compressed Height: 50 mm

Max. Expanded Height: 100 mm

Cover Plate Diameter: 85 mm

Center to Center Distance: 44.5 mm

Rubber Bellow Max. Diameter: 150 mm

Air Connection: G1/4

Screw Type: M8

Other OEM Numbers

Air Lift: 58218

Goodyear: 1B5-500, 1B 5-500, 1B 5500
Goodyear Rubber Bellows NO.: 579-913-500, 579 913 500, 579913500
Airkraft Style 1B120
ContiTech Order No.: 61388
Enidine: YI 1B5 500, YI1B5500, YI-1B5-500
Enidine: YI-FS50-5-000, YI FS50 5 000, YIFS505000
Firestone No.: W02-358-5000, W023585000, W02 358 5000
Firestone: W01-358-7609, W01 358 7609, W013587609
Firestone Bellows No.: 16-ST, 16ST, 16 ST
Firestone No.: W01-358-7001, W013587001, W01 358-7001, W013587001
Firestone Bellows No.: 16
Firestone New Bellows No.: 16B
Numatics: ASNS1111, ASNS 1111

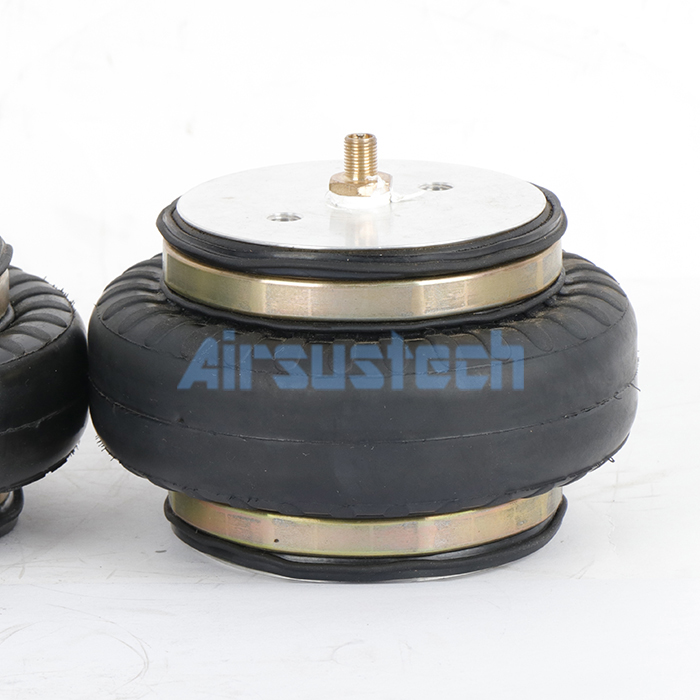

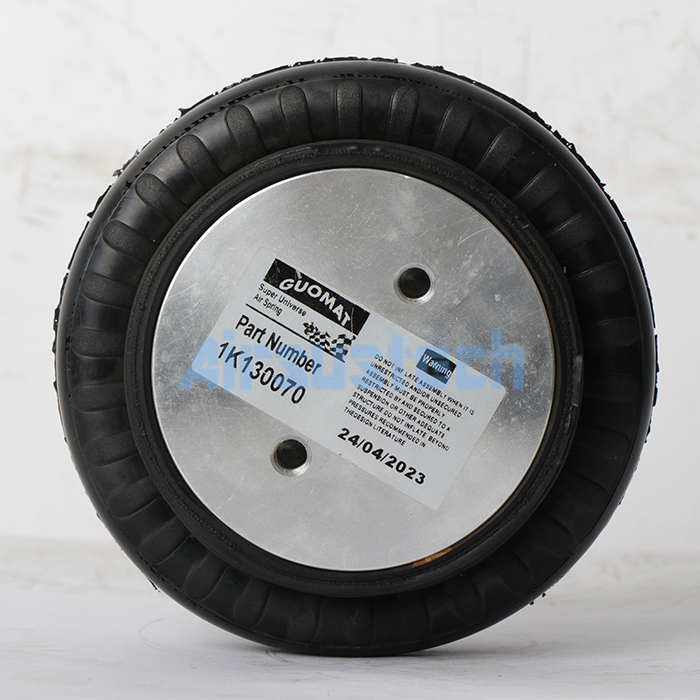

The Detailed Pictures

Company Profile

Guangzhou Guomate Air Spring Co., Ltd. is located in Guangzhou, China's first open port, just a fifteen-minute drive from Guangzhou Baiyun International Airport. The company boasts a modern building with an area of ​​approximately 20,000 square meters and state-of-the-art production facilities for rubber air springs. It is currently the largest air spring production base in China. The company's products are primarily used in commercial vehicles, rail vehicles, and industrial machinery and equipment. The main products are: rubber air springs, bus airbags, truck airbags, air springs for the paper machine industry, airbags for large washing machines, and rubber air springs for automobiles. We currently offer hundreds of models and designs and can also design and produce according to customer requirements or existing product specifications. New and existing customers are welcome to contact us for a consultation. Our company utilizes state-of-the-art domestic air spring processing facilities and integrates foreign air spring production technologies. Thanks to our unique production process, we produce according to international standards and thus create world-class products.
