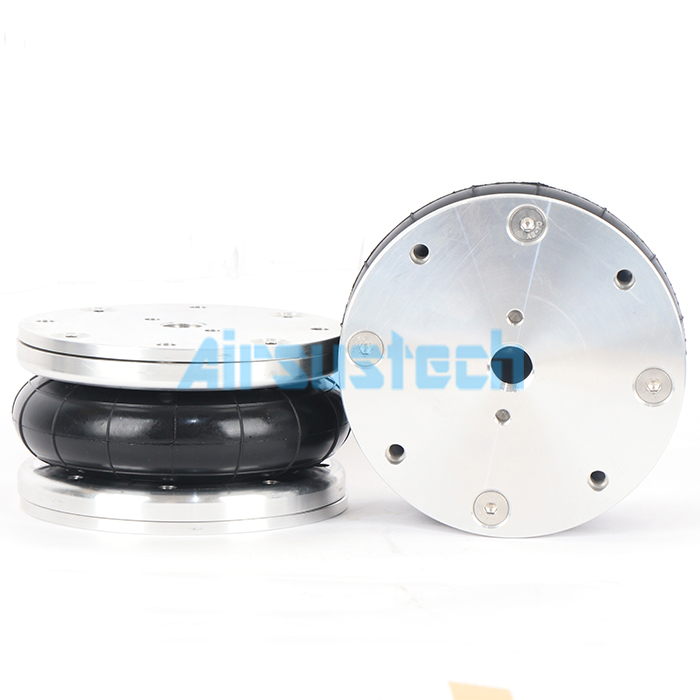

Parker 9109004A Convoluted Air Spring Dunlop 6'' Diameter Air Suspension Spring

Categories Convoluted Air Spring
Brand Name: AIRSUSTECH
Model Number: 1B6×1P
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 1
Price: Negotiable
Payment Terms: T/T,Western Union,Paypal or Others
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Brand: AIRSUSTECH
Firestone: W01-R58-4078
Contitech: FS 76-7 DI
Bellows Type: Single Convoluted
Total Stroke: 55 MM
Warranty: One Year
Production Process: Vulcanization
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Parker 9109004A Convoluted Air Spring Dunlop 6'' Diameter Air Suspension Spring

Parker 9109004A Convoluted Air Spring Dunlop 6'' Diameter Air Suspension Spring


Product Technical Datas


TypeMax. DiameterMinimum Height (mm)Maximum Height (mm)Total StrokeStatic Height (mm)C to C DiameterSpace Required
41/2×11254590456593140
6×1168581085080127180
8×1230471207390156240
10×1280501358595181295
12×1330501459595232345
141/2×139547165118105283410

1B6×1P Replaces These Air Bellows


Parker 9109004A

Firestone W01-R58-4078

Firestone W01 R58 4078

Firestone W01R584078
Dunlop Pneuride 6''×1

Dunlop Pneuride 6'×1

Dunlop Pneuride 6×1
Dunlop Springride SP2913

Dunlop Springride SP 2913

Dunlop Springride SP 29 13
Contitech FS 76-7 DI

Contitech FS76-7 DI

Contitech FS767 DI
Norgren PM/31061

Norgren PM31061

Norgren PM 31061


Product Applications


  • Scissor Lift
  • Hopper Vibration and Damping
  • Mechanical Handling Stop
  • Quick Lock Device
  • Reel Tensioning
  • Machine Isolation
  • Direct Force
  • Impact Absorbtion
  • Roller Tensioning
  • Platform Lift
  • Short Stroke Mechanical Linkage
  • Hot Foll Stamping Press
  • Automation Technology
  • Conveyor Systems
  • Agricultural Machinery

Precautions When Installing Air Springs


  1. Air springs must not be pressurized unless restrained by an external frame or appropriate load.
  2. Travel must be directly limited by shock absorbers or external stops. When stacking air springs, special care must be taken to ensure that the air springs are guided and secured.
  3. The air spring is a single-acting air cylinder and must not be used below atmospheric pressure.
  4. If it compresses quickly, check for overpressure.

The Detailed Pictures
