Hurricane Proof High Strength Steel Structural Prefabricated Metal Building

Categories Steel Structure Building
Brand Name: KXD-S0004
Model Number: S0004
Certification: CE, ISO, SGS
Place of Origin: Qingdao, China
MOQ: 500 square meters
Price: US$50-80 per square meter
Payment Terms: L/C,T/T
Supply Ability: 3000 tons per month
Delivery Time: 30 days
Packaging Details: steel pallet
Steel Frame Surface: Alkyd painting; Epoxy zinc painting; Hot dipping galvanized
Window: Aluminum alloy window
Raw Steel Material: GB/Anis/BS/DIN/Uni
Parapet Wall: on option
Zinc Coating: 275g/m2
Profile: Hot rolled steel
Connection: Bolted
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

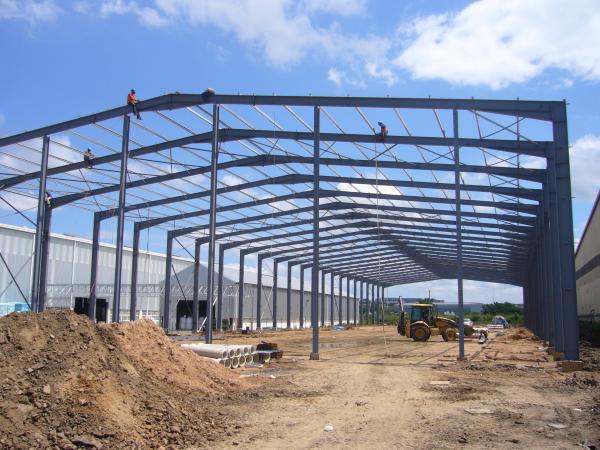

Hurricane Proof High Strength Steel Structural Prefabricated Metal Building

Product Description:

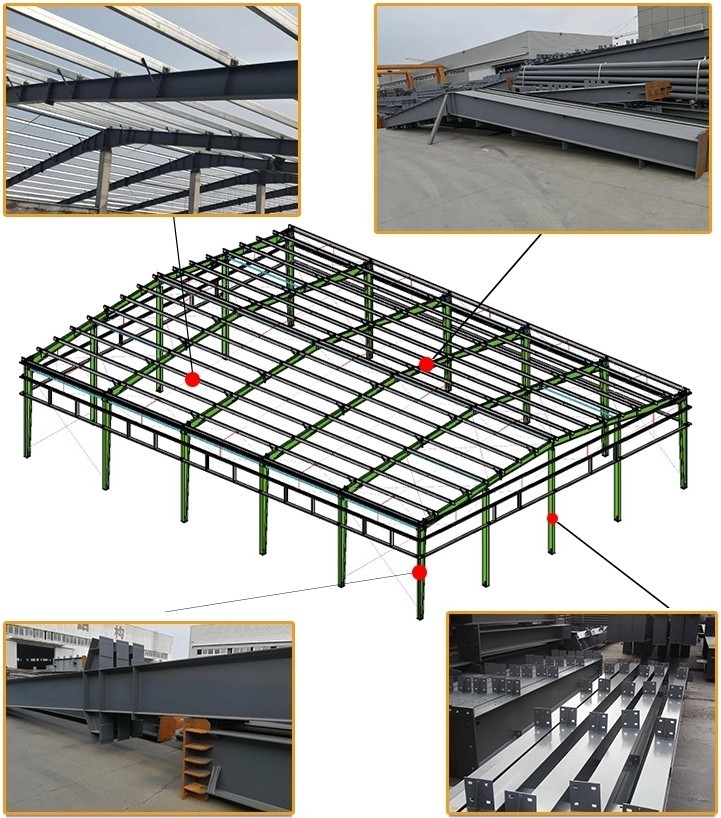

Steel Structure Fame

High strength steel structure

Roof & Wall Cladding system

Steel sheet; Insulated sandwich panel

Sandwich panel thickness

50, 75, 80, 100, 150, 200mm on options with different insulation materials

Door Material

Sandwich panel door; Security man door; Stainless steel door; Steel Gate

Window Material

Plastic steel window; Aluminum alloy window; Thermal insulated window



Technical Parameters:

Ability

1. Support to supply all kinds of steel structures, steel building, metal building, modular house, steel frames for houses, steel beams, other riveting and welding structure components

2. Support to design by demands and to produce by the exact drawings

Details

1. Size (Length* Width* Eave height, roof slope) : MOQ as 300sqm

2. Type: Single slope, Double slope, Multi slope

Single span, Double span, Multi span

Single floor, Double floors

3. Base: Cement and Steel foundation bolts

4. Column & Beam: Q345(S355JR) or Q235(S235JR) steel, all bolts connection!

Straight cross-section or Variable cross-section!

5. Bracing: X-type or V-type or other type bracing made from angle, round pipe, etc

6. C or Z purlin: Size from C120~C320, Z100~Z200

7. Roof and wall panel:

Single steel sheet: thickness 0.326~0.8mm

Sandwich panel: thickness 50mm~100mm

8. Accessories: Semi-transparent skylight belts, Ventilators, down pipe, galvanized gutter, etc

9. Surface treatment of steel:

2 layer epoxy zinc rich primer and 2 layer anti-rust paint

10. Normally by 40'OT/ 40'HQ

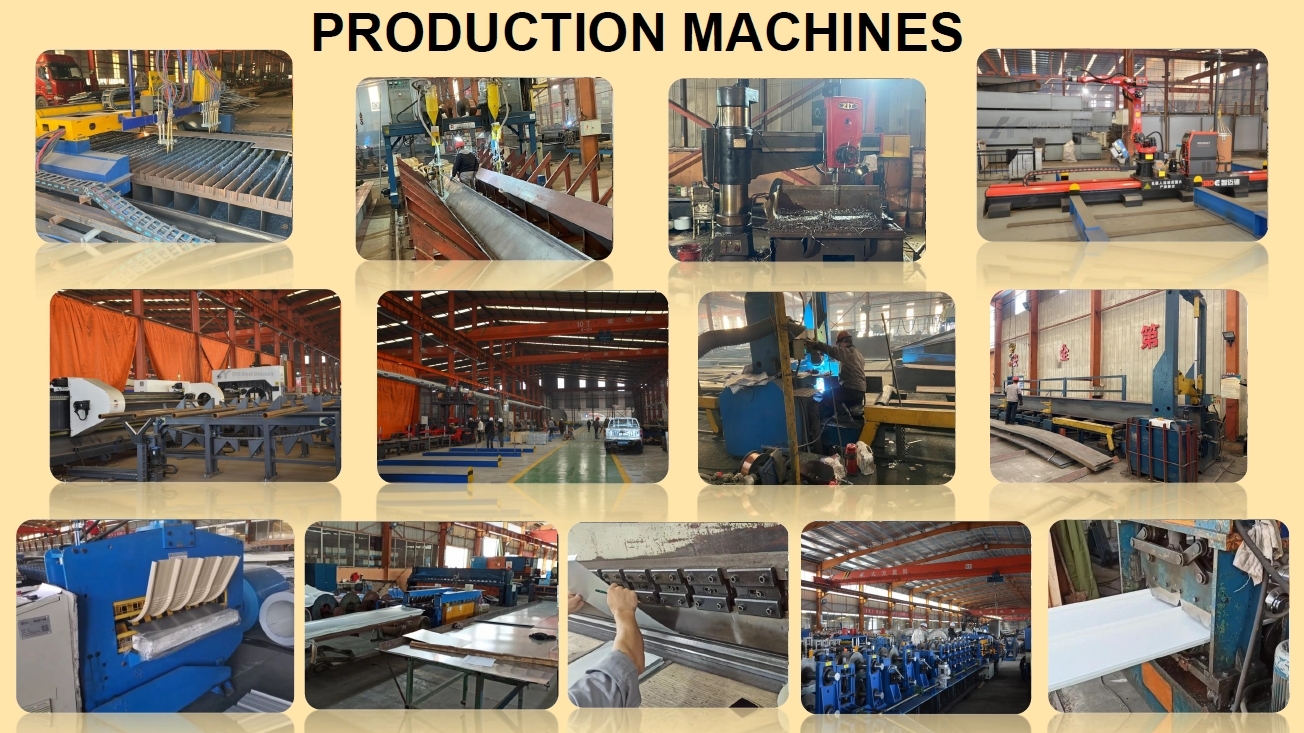

Production Showing:

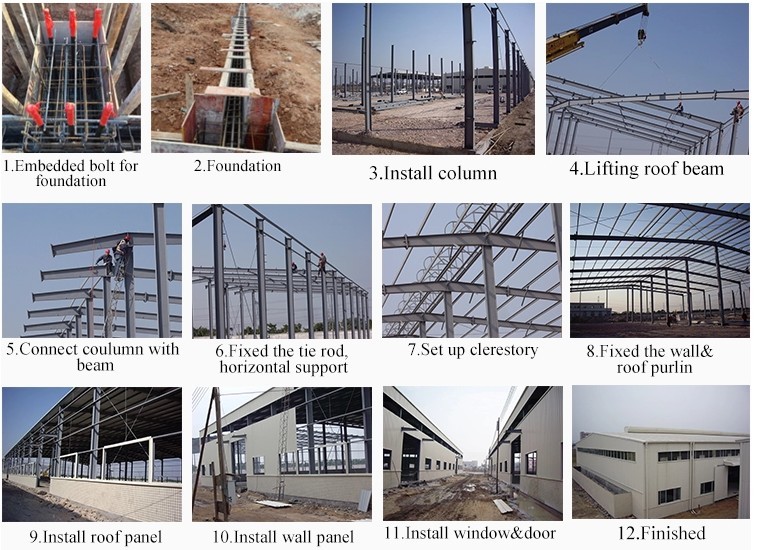

Installation Steps:
