| Categories | BALL VALVE |
|---|---|
| Brand Name: | PVPT |
| Place of Origin: | China |
| MOQ: | 1 PC |
| Price: | EXW FOB CFR CIF |
| Payment Terms: | L/C, T/T, Western Union |
| Delivery Time: | 30 days after receiving down payment |
| Packaging Details: | wooden cases, pallets or as per customer request |
| Size: | DN40 |
| Pressure: | PN16 |
| Body material: | GG25 |

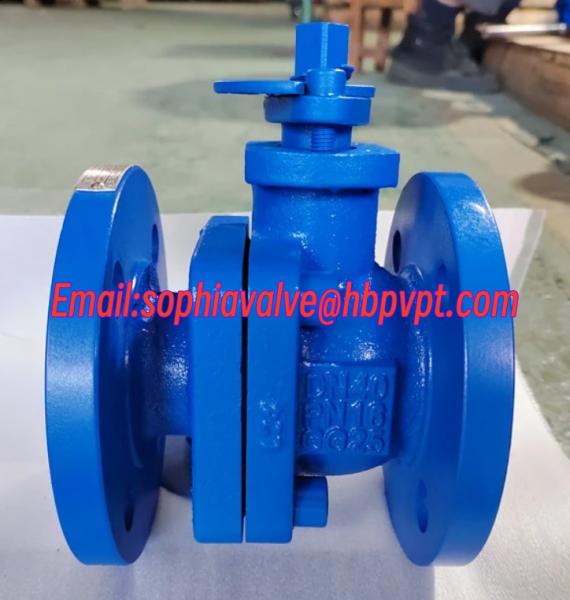

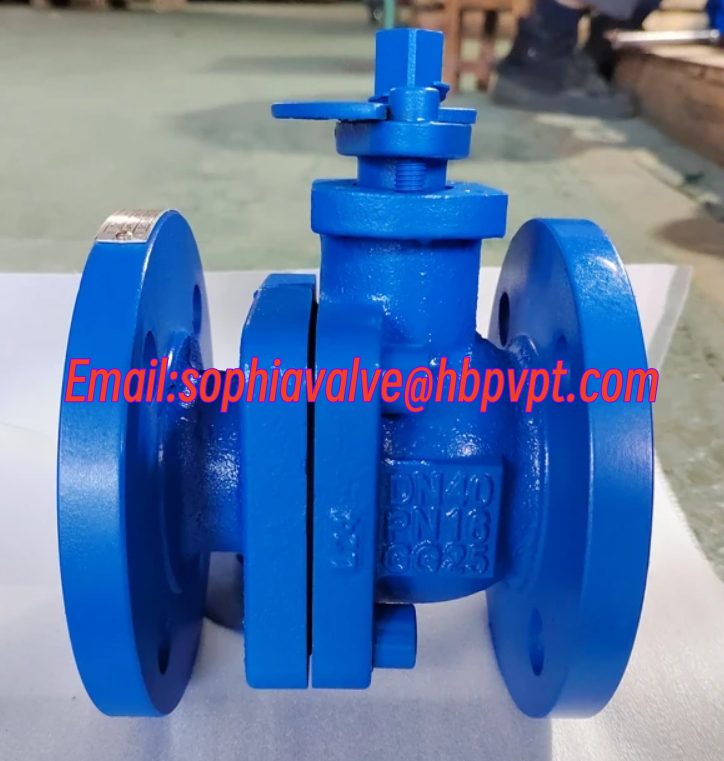

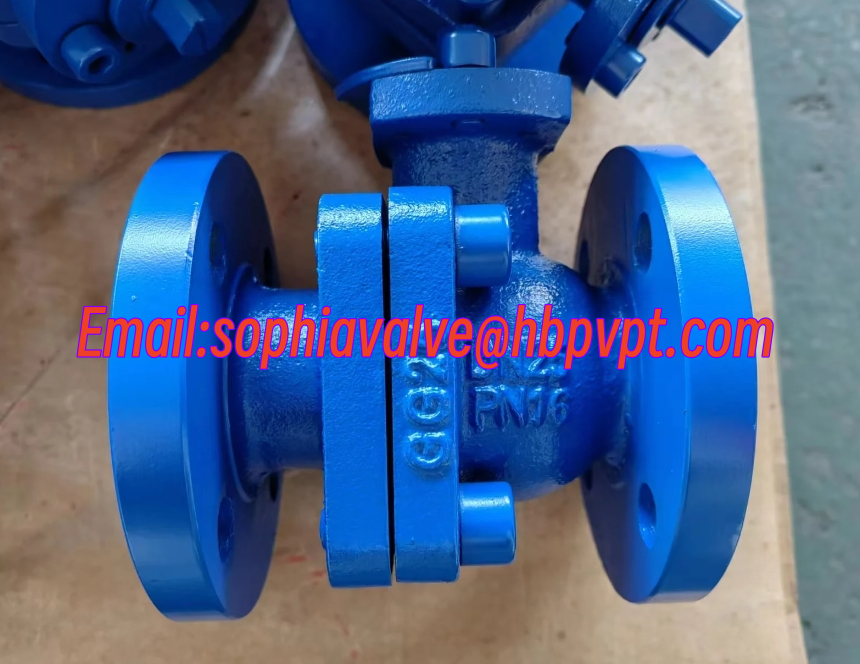

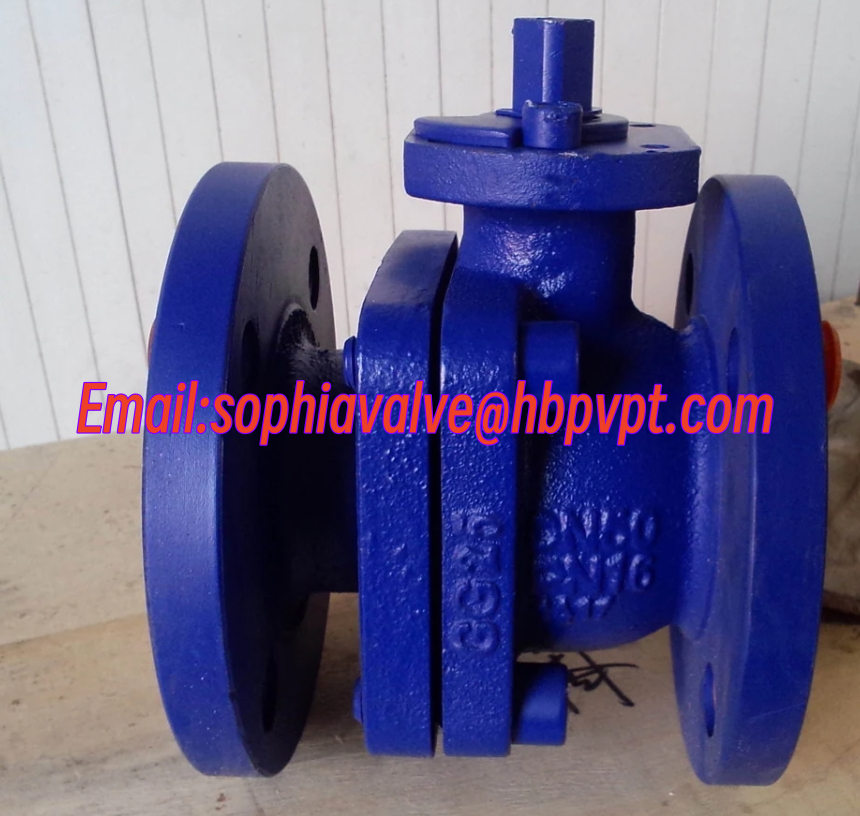

DN40 PN16 GG25 cast iron ball valve maufacturer
cast iron ball valve range:
1.Production Size:DN40
2.Pressure:PN16
cast iron ball valve standard
1.Design Standard:DIN 3357,EN12516
2.Face to Face:DIN 3202,EN558-1,DN15-DN150(F4),DN200(F5)
3.Flange Standard:DIN2533,EN1092-2
4.Testing Standard:EN12266,DIN3230,ISO5208
cast iron ball valve main material of parts:
1.Body:GG25
2.Bonnet:GG25
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Ball:SS304,SS316
5.Gasket:PTFE
6.Seat:PTFE,RPTFE
7.Stem Packing:PTFE
8.Handle:ASTM A536 65-45-12

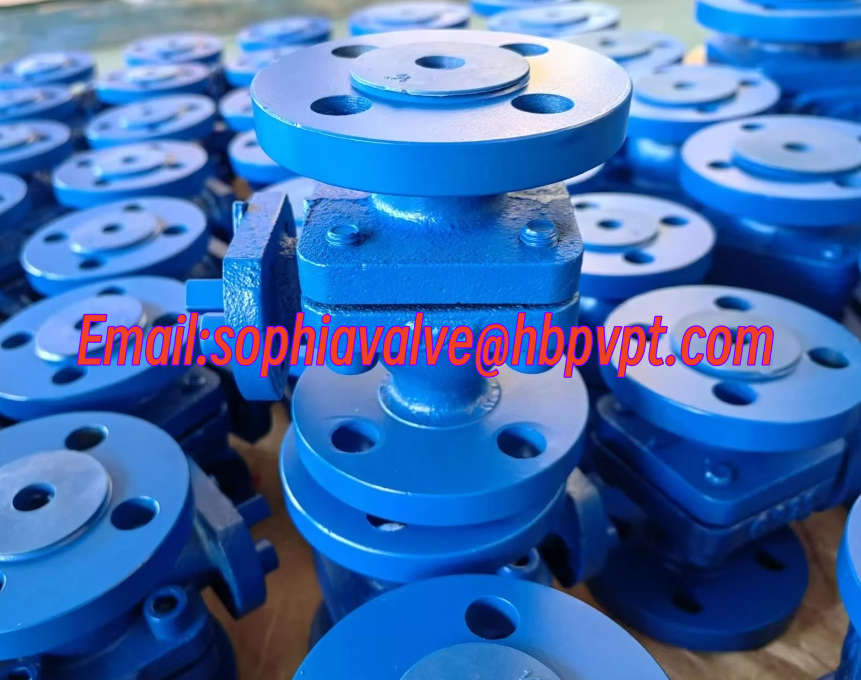

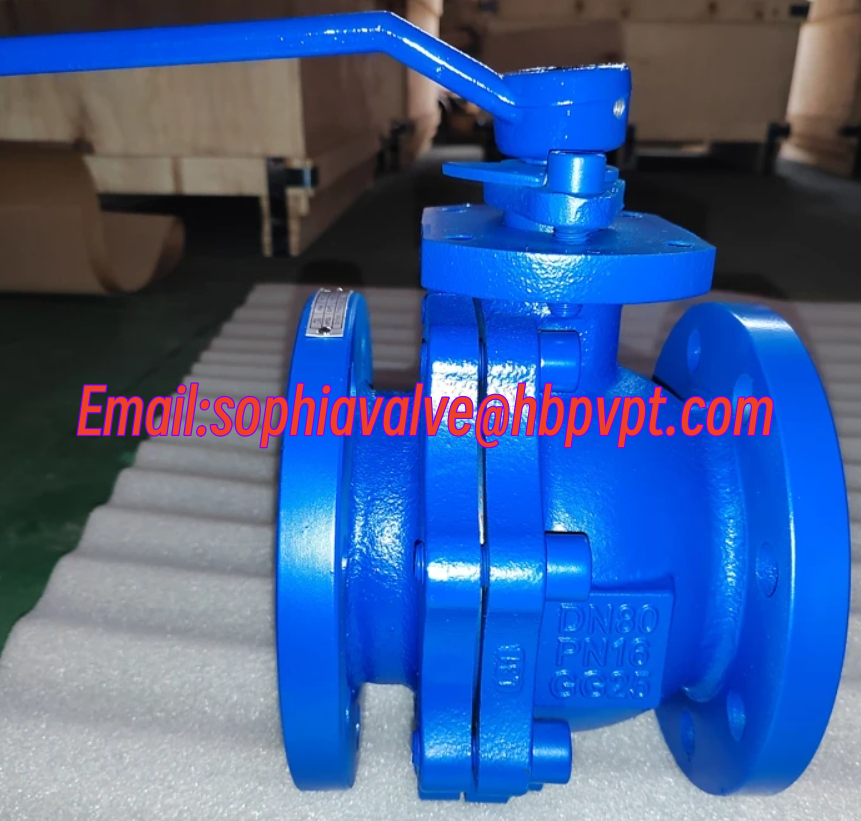

Product show
|
