Brand Name: | QZ RIDGE |
Model Number: | RS-066 |
Certification: | CE,SGS,ISO |
Place of Origin: | Fujian,China |
MOQ: | 200 square meters |
Price: | USD40~55 square meters |
Payment Terms: | Western Union, MoneyGram, L/C, T/T |
Packaging Details: | naked |
name: | steel structure building material prefab shed |
Life Span: | Designed for 50 Years |
Usage: | Warehouse, Workshop, Apartment, Office Building |
Main Structure: | Light Steel & Heavy Steel, Both Ok |
Type of Steel for Building Structure: | Q235 Q355 Hot Rolled High Strength H Section Steel |
Project Solution Capability: | graphic design, 3D model design, total solution for projects, Cross Categories Consolidation |
Transport Package: | Shipping Container |
Insulation: | Polyurethane, Rockwool, Glasswool, EPS |
Connection Form: | Bolt Connection |
Company Info. |
Quanzhou Ridge Steel Structure Co.,Ltd. |
Verified Supplier |
View Contact Details |
Product List |

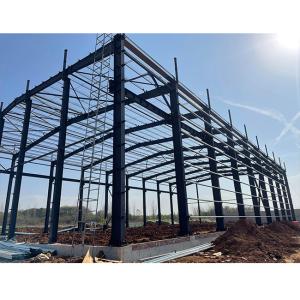

Steel structure building mainly refers to the main load-bearing
components are composed of steel.
Including steel columns, steel beams, steel structure foundation,
steel roof truss (of course, the span of the factory is relatively
large, basically now are steel structure roof truss), steel roof,
pay attention to the wall of steel structure can also use brick
wall enclosure.
Steel structure building can also be divided into light and heavy
steel structure building.
Steel Frame | ||
No. | Category | Description |
1 | Main Structure | Q355 grade Welded or Hot-rolled H section Steel |
2 | Secondary Structure | Q235 grade steel |
Roof & Wall System | ||
No. | Category | Description |
1 | Roof cladding | Corrugated steel sheet/ EPS/ Rock wool/ Glass wool/ PU sandwich panel |
2 | Wall cladding | Corrugated steel sheet/ EPS/ Rock wool/ Glass wool/ PU sandwich panel |
3 | Door | Sliding door / electrical roller shutter door / fire door |
4 | Window | Aluminium alloy window / PVC window / Louver |
Fastener & Other Fittings | ||
No. | Category | Description |
1 | Bolt & Screw | Foundation bolt / Intensive bolt/ Ordinary bolt |
2 | Trim & Flashing | made by steel sheet |
3 | Ventilation | Natural turbo vent / Ridge vent |
4 | Skylight | 1.2mm FRP material / 6mm Hollow sunshine board |
5 | Drainage | Stainless Steel Gutter & Downspout (PVC) |
![]() |
