| Categories | Soil Investigation Drilling Rig |
|---|---|
| Brand Name: | Aoxing |
| Model Number: | 30Type |
| Certification: | ISO9001 |
| Place of Origin: | Hebei,China |
| MOQ: | 1 Set |
| Supply Ability: | 50 Sets/Month |
| Packaging Details: | in Plywood Case |
| Model NO.: | XY-30 |
| Condition: | New |
| Drill Hole Diameter: | 45-110mm |
| Drill Hole Depth: | 30m |
| Bit Type: | Diamond Bit |
| Drilling Way: | Rotary |
| Type: | Portable |
| Drill Tower Height: | 3.2m |
| Length of Drill Pipe: | 1m |
| After-Sales Service Provided: | Video Technical Support |
| Company Info. |
| Hengshui Aoxing Geological Equipment Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

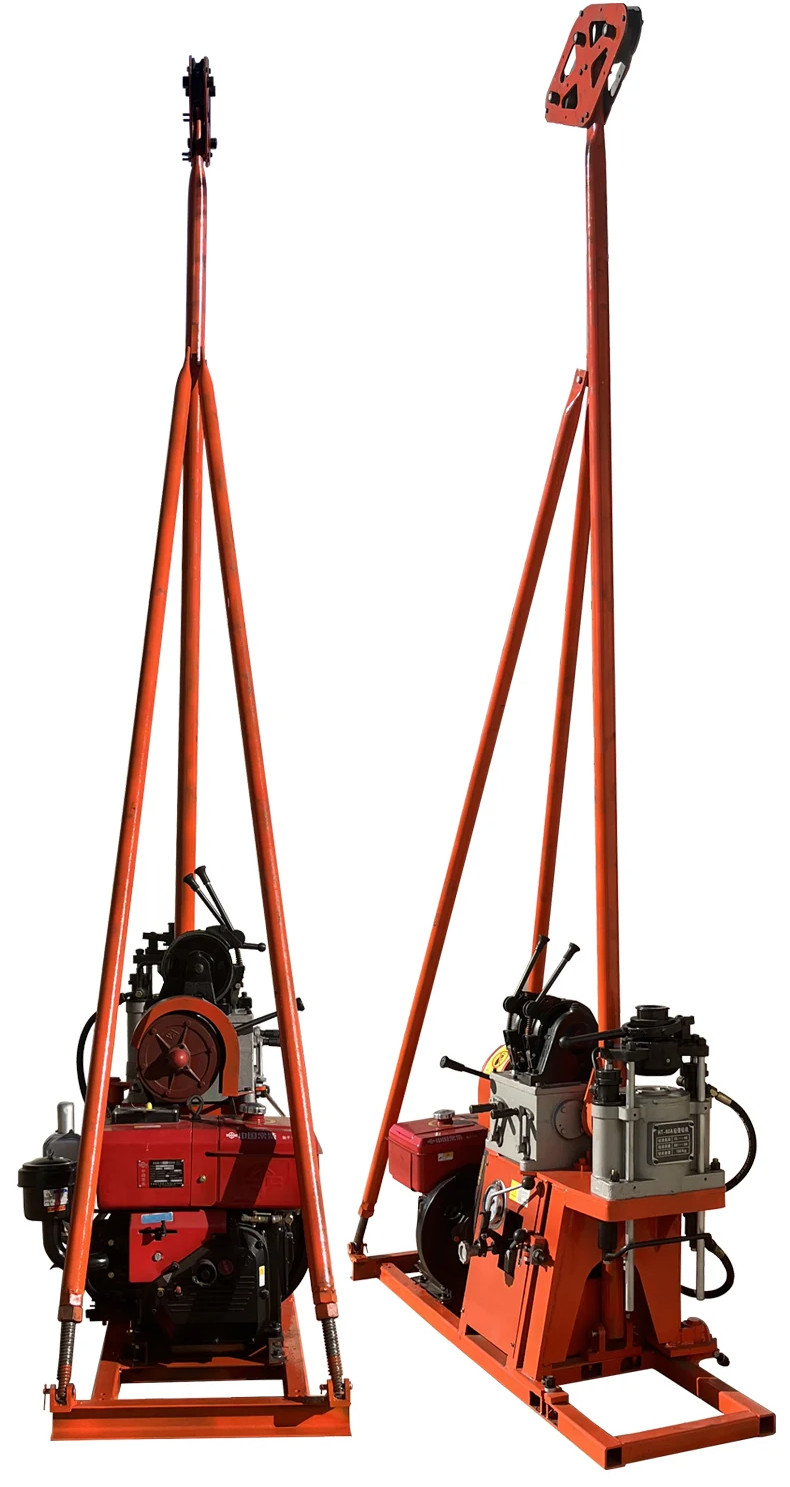

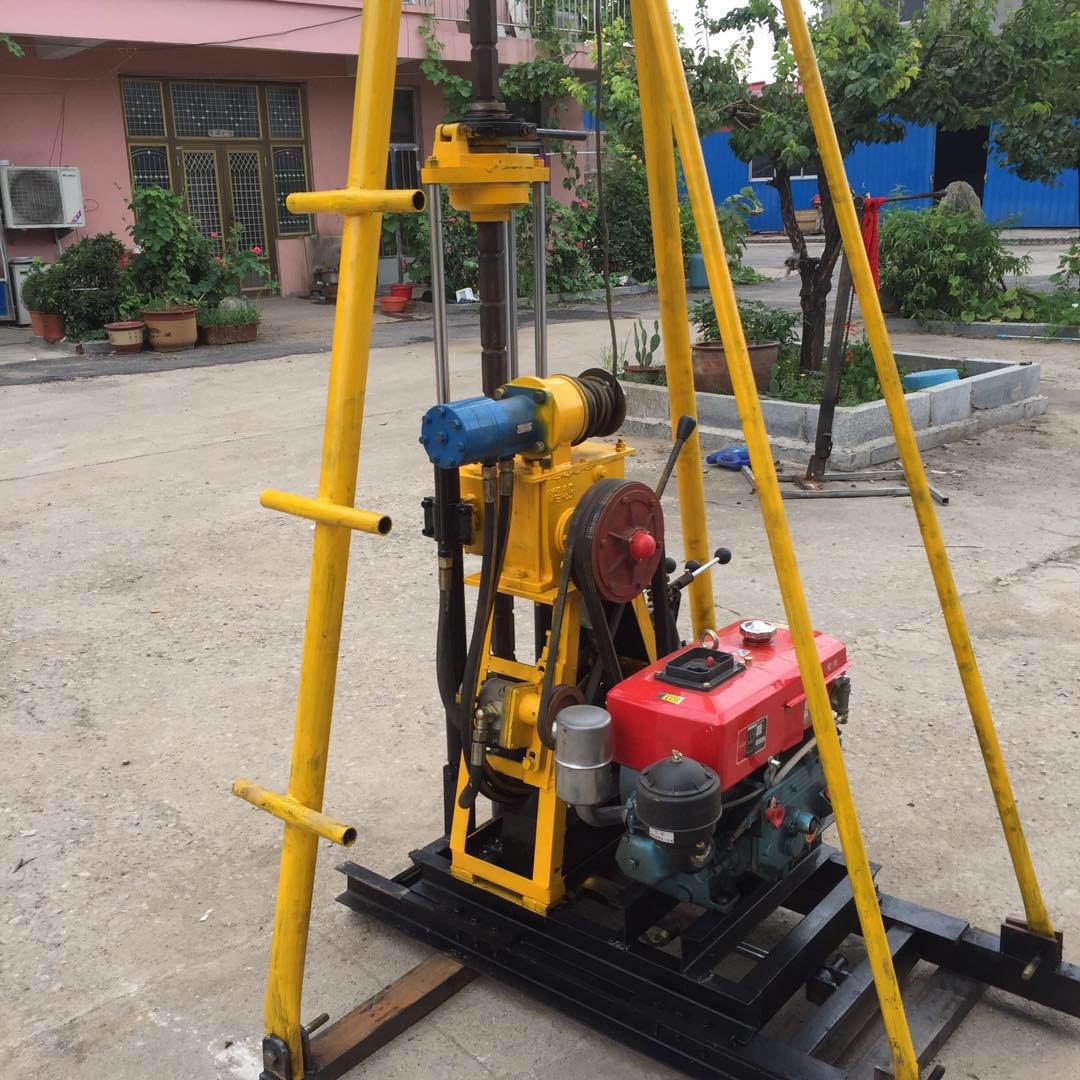

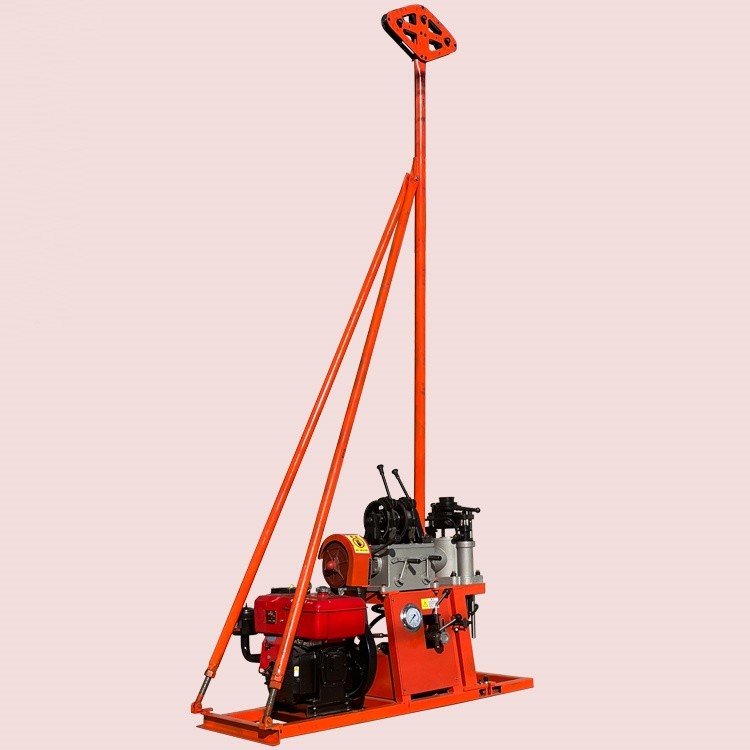

30 type core drilling rig, portable core drilling rig/Mini Soil Sample Core Drilling Machine
1. Compact structure, small dimension, light weight and easy to
disassemble and reassemble;
2. High efficiency drilling with hydraulic feeding structure;
3. High mechanization, low labor intensity;
4. Geotechnical investigation for road, building construction;
blasting hole drilling;
| 1. DRILLING CAPABILITY | |||||
| Drilling Dia(mm) | 75 | 110 | |||
| Drilling Depth(m) | 30 | 15 | |||
| Drilling Rod Dia(mm) | 42 | ||||
| 2. ROTARY TABLE | |||||
| Speed(rpm) | 136 338 578 r/m | ||||
| Max Torque | 350N·m | ||||
| Feeding Travel | 400mm | ||||
| Max Feeding Force | 8KN | ||||
| Max Lifting Force | 10KN | ||||
| 3. Hoist | |||||
| Bobbin Dia | φ90mm | ||||
| Steel Rope Dia | φ8mm | ||||
| Bobbin Rope Capacity | 18m | ||||
| Max Hoisting(Single Rope) | 4KN | ||||
| Max Hoisting Speed Single Rope (2nd Layer) m/s | 0.46 1.15 1.97 | ||||
| 4. Oil Pump | |||||
| Model | CBW-F314-ALP Gear Oil Pump | ||||
| Displacement | 14mL/r | ||||
| Rated Speed | 2500r/min | ||||
| Rated Pressure | 20Mpa | ||||
| Max Pressure | 25Mpa | ||||
| 5. Engine | Model | Power | Speed | Weight | |
| (1) Electric Motor | Y132M-4 | 7.5KW | 1440r/min | 81kg | |
| (2) Diesel Engine | ChangchaiI R180 | 5.7KW | 2600r/min | 72kg | |
| 6. Rig Dimension | 1510×600×1055mm | ||||
| 7. Weight(Engine not included) | 260kg | ||||
