High Precision CNC Sheet Metal Bending Machine Cheap Price Factory Manufacture Hydraulic Press Brake For Sale

Categories Excellent ESC Series CNC Press Brake
Brand Name: GENUO
Model Number: ESC-40T/63T/80T/100T
Certification: M.2019.206.C3862
Place of Origin: China
MOQ: 1
Price: negotiable
Payment Terms: L/C,T/T,D/P,D/A
Supply Ability: 1 Set/Sets Every 15~35 days
Delivery Time: 70days
Packaging Details: carton box
Machine Name: Hydraulic Cnc Bending Machine
Application: Stainless Steel Metal Sheet Plate Bending
CNC Control: ETC-16 CNC Control
Optional Voltage: 220V/380V/415V/440V
Controller system: Genuo independent research and development
Color: Customizable
Machine Motor: STJ main
Electrical components: Schneider
Hydraulic System: Bosch Rexroth Germany
Oil Pump: Sunny Oil Pump
After-sales Service: Online Support Video Technical Support
value-added services: Presented Two years warranty
Type of automation: Fully automatic
Core selling point: Competitive price
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Precision CNC Sheet Metal Bending Machine Cheap Price Factory Manufacture Hydraulic Press Brake For Sale

High Precision CNC Sheet Metal Bending Machine Cheap Price Factory Manufacture Hydraulic Press Brake For Sale

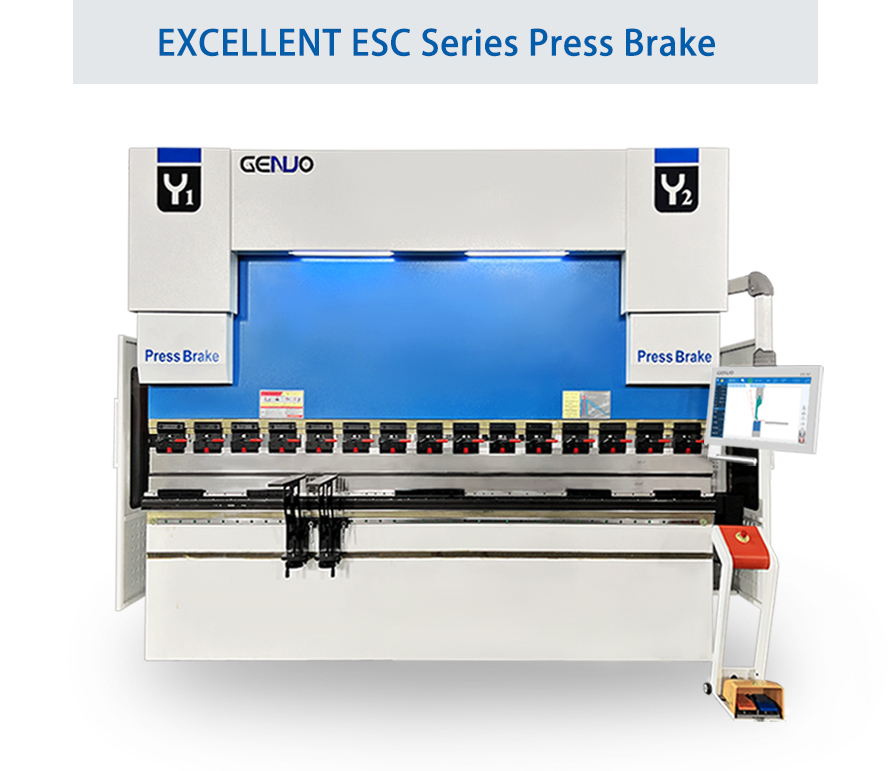

New Machine description


GENUO's Excellent ESC series is the latest generation of high-performance synchronized CNC Press Brake.Combining GENUO's independently developed controller,it maximizes value creation and reduces costs.User-friendly operating system and first-class design. Adhering to the philosophy of GENUO

(Details Create Quality).With super quality and high precision, it also has a huge competitive advantage.

More convenient to use, high cost performance!

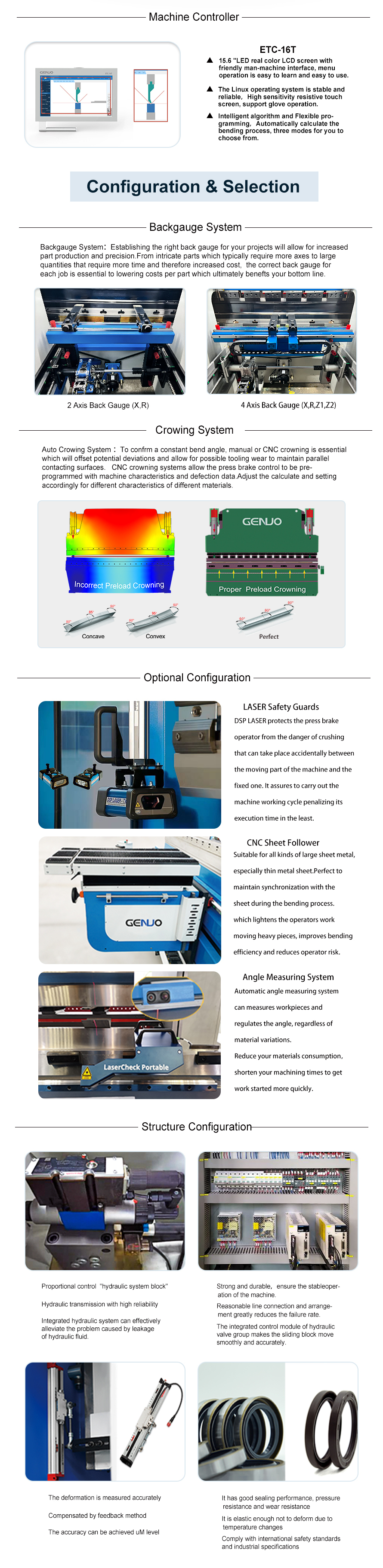

Standard EquipmentOptional Equipment
▲ GENUO ETC-16T 4 Axis CNC Control△ ETC-16T 5 Axis/7 Axis CNC Control
▲ Integral welded rigid high tensile steel frame△ DSP or SDKELI Lasersafe protection guard
▲ High precision Y1,Y2 axis synchronized closed-loop feedback△ Energy saving & low noise main servo SVP control
▲ Accurate X axis back gauge system△ 2 Axis(X,R) or 4-Axis (X,R,Z1,Z2)back gauge
▲ CNC Motorized crowning system△ The CNC Bending Sheet Follower
▲ European-style punch and 4V/2V/1V Dies△ WILA type top and bottom tool clamping system
▲ Fast punch clamps and movable sliding front support△ Bending tools management cabinet or trolley

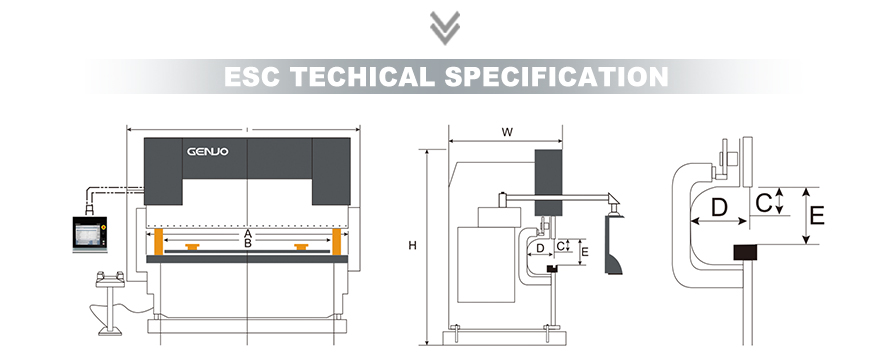

  ABDEC
ModelNominal PressureLength of TableDistance Between ColumnsThroat DeathOpen HeightRam StrokesMotor PowerApprox WeightOverall Dimension
ESC(KN)(mm)(mm)(mm)(mm)(mm)(kw)(kg)(L x W x H)(mm)
40T/160040016001250300420150428001950*1750*2350
63T/2500630250019603204201505.542002850*1750*2350
80T/2500800250019603504802007.545002850*1850*2450
100T25001000250020004004802007.553002850*1850*2500
100T/32001000320026004004802007.565003850*1850*2600
125T/25001250250020004004802007.555003000*1850*2500
125T/32001250320026004004802001170003850*1850*2600
125T/40001250400032004004802001185004610*1850*2600
160T/32001600320026004004802001188003900*1900*2600
160T/400016004000320040048020011100004650*1900*2700
200T/320020003200260040048020015116003900*1900*2700
200T/400020004000320040048020015140004700*1900*2800
200T/500020005000400040048020015160005800*1900*2900
200T/600020006000490040048020015180006800*1900*3000
250T/320025003200260040052025018.5125003900*2100*2800
250T/400025004000320040052025018.5150004700*2100*2900
250T/500025005000400040052025018.5170005800*2100*3000
250T/600025006000490050052025018.5200006500*2100*3100
320T/320032003200260040052025022145004000*2100*3000
320T/400032004000320040052025022175004800*2200*3200
320T/500032005000400050052025022200005800*2200*3400
320T/600032006000490050052025022235006500*2200*3600
400T/400040004000320050060032030220004800*2300*3500
400T/600040006000490050060032030310006500*2300*3800



Cheap High Precision CNC Sheet Metal Bending Machine Cheap Price Factory Manufacture Hydraulic Press Brake For Sale for sale
