| Categories | Can Leak Tester |
|---|---|
| Brand Name: | BC-TESTER |
| Model Number: | BC-L-R10-20（1L-5L) |
| Certification: | ISO,CE... |
| Place of Origin: | CHINA |
| MOQ: | 1 |
| Price: | 48600USD-62500USD |
| Payment Terms: | T/T |
| Delivery Time: | 35DAYS-45DAYS |
| Packaging Details: | WOODEN CASE/DUST-FREE PACKAGE |
| Item: | Round cans leakage tester |
| Speed: | 20CPM |
| Height Application: | 80—380mm |
| Diameter Range: | 45mm-300mm |
| Detection principle: | Positive pressure or negative pressure |
| Channel No.: | 8 head-20heads |
| Technical: | PC Control |
| )testing air pressure: | 0.25 bar;air supply is 0.5~0.6MPa; |
| Man-machine interface: | 7"selection Taiwan WeiLun Brand; |
| PLC: | Japanese Keyence or Customised |
| low voltage apparatus: | Schneider or Customised |
| Company Info. |
| Foshan BetterCan Intelligent Packaging Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Linear Leak Tester 20cpm Round Cans 1L 5L Automatic Pressure Tester Chemical Cans

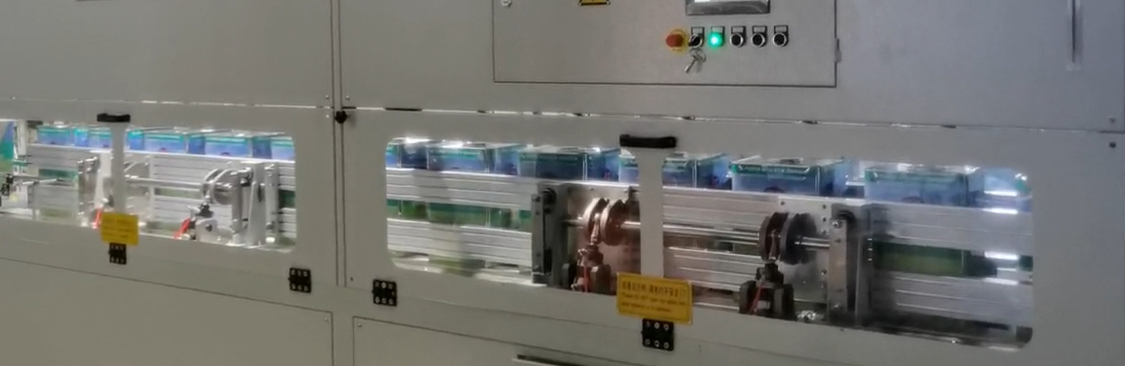

Once empty cans reach the testing position on the turntable, the sealing disk closes the open end and injects compressed air. A precision pressure sensor captures the initial pressure value, followed by a second reading after the holding period. The system analyzes the pressure difference to automatically reject defective cans. Each testing station has an independent air circuit to eliminate cross-interference from adjacent positions, ensuring reliable results.
EXAMPLE(LEAK TESTER(ROTARY TYPE)
| Linear Leak Tester Application:Chemical Cans | |||
| Model | Round Can | BC-L-R10-20(1L-5L) | BC-L-R14-28(1L-5L) |
| Square Can | BC-L-S10-20(1L-5L) | BC-L-S14-28(1L-5L) | |
| Size | Round Can | 3340x780x2000 | 3900x780x2060 |
| Square Can | 3060x780x2000 | 3900x780x2060 | |
| Can type | 1—5L | 1—5L | |
| Height | 80—380mm | 80—380mm | |
| Testing Accuracy | 0.12—0.15mm | 0.12—0.15mm | |
| Testing speed (CPM) | 20 | 28 | |
| Head quantity | 10 | 14 | |
| Total power | 2KW | 2KW | |
Related Other Pressure Leaking Test Machines
Test for | Height Range (mm) | Dia Range (mm) | Precision | Max Speed (CPM) |
Food&Beverage Can &Powder Can& Paint Can | 110-220 | 99-153 | 0.15 mm | 180 |
Food&Beverage Can &Powder Can& Paint Can | 50-180 | 52-199 | 0.1 mm | 200 |
Food&Beverage Can &Powder Can& Paint Can | 50-180 | 52-199 | 0.1 mm | 400 |
Food&Beverage Can &Powder Can& Paint Can | 50-180 | 52-199 | 0.1 mm | 600 |
Powder Can | 110-245 | 99-153 | 0.05 mm | 150 |
Powder Can | 110-245 | 99-153 | 0.05 mm | 200 |
Powder&Food&Beverage Can | 110-245 | 52-99 | 0.05 mm | 300 |
Food& Beverage Can | 70-150 | 52-65 | 0.05 mm | 400 |
Food Can | 60-180 | 52-99 | 0.05 mm | 480 |
Food Can | 60-180 | 52-79 | 0.05 mm | 750 |
Beer Can | 110-300 | 52-86 | 0.05 mm | 160 |
Beer Can | 110-300 | 52-86 | 0.05 mm | 200 |
Aerosol Can | 80-320 | 45-70 | 2 cc/min | 220 |
Aerosol Can | 80-320 | 45-70 | 2 cc/min | 320 |
Aerosol Can | 80-320 | 45-70 | 2 cc/min | 450 |

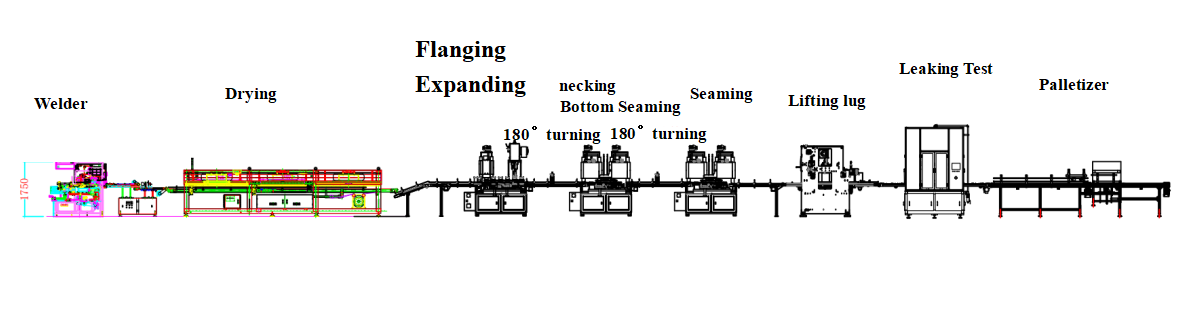

Regarding the Production Process
We offer a range of machines ready to upgrade your production line. These can be customized to seamlessly integrate with your existing equipment.
Automatic Deep Throat Press | Loading And Receiving Circular Knife Machine |
Automatic Cutting Machine | Automatic Conveying (Collecting Can) Line |
Automatic Handing Machine | Magnetic Conveying equipment |
Automatic Welding Machine | Magnetic vertical cans equipment |
Automatic Sealing Bottom Machine | Robotic Feeder |
Automatic Leakage Tester | Palletizer |
Automatic Strip Press | Electromagnetic Dryer |
FAQ:
Q1. Can the system handle different can sizes or pressures?
Yes. Detection heads and pressure parameters are customizable to
accommodate various diameters, materials, and required test
pressures.
Q2. How is defective can rejection triggered?
The system automatically ejects cans when the pressure difference
between the two readings exceeds the predefined tolerance
threshold.
|
