Flame Retardant PC Material Thermal Stability PC Polycarbonate Injection Molding

Categories PC Material
Brand Name: Mitsubishi
Model Number: PC S-2000VR
Certification: MSDS
Place of Origin: Thailand
MOQ: 1000KG
Price: USD2.5-3KG
Payment Terms: T/T
Supply Ability: 500T
Delivery Time: 7-15days
Packaging Details: Plastic bag/Paper bag
Material Shape: Pellets
Features: Good mould release
Additives: Mold Releases
Melt Index 300℃1.2kg: 10g/10min
Tensile Modulus: 2400MPa
Elongation Break: 110%
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Flame Retardant PC Material Thermal Stability PC Polycarbonate Injection Molding

Products Description




PC Polycarbonate Thailand Mitsubishi Engineering S-2000VR Flame Retardant High Temperature UV Resistant, Suitable For Lighting Automotive And Electrical And Electronic Applications

PC is an amorphous engineering material with particularly good impact strength, thermal stability, gloss, antibacterial properties, flame retardant properties and pollution resistance. It is used to manufacture large lampshades, protective glass, left and right eyepiece tubes of optical instruments, etc., and can also be widely used in transparent materials on aircraft.

product feature

PC
S-2000VR
Product information
Other CertificatesMSDS
Part Marking Code>PC<
Material ShapePellets
ProcessInjection molding
ViscosityMedium viscosity
FRV-2
Material AttributeInjection grade
specification·UL ·UL-746CF1
Features·Good mould release
Application·General purpose
AdditivesMold Releases
UL File NO.E41179
CertificateUL MSDS
Physical propertyStandardValueUnit
DensityISO 11831.20g/cm³
Shrinkage xFlowINTERNAL METHOD0.50~0.70%
Shrinkage FlowINTERNAL METHOD0.50~0.70%
Water Absorption 23℃ SaturationISO 620.24%
Melt Index 300℃1.2kgISO 113310g/10min
Melt Index 300℃1.2kgISO 11339.00cm³/10min
Mechanical behaviorStandardValueUnit
Tensile ModulusISO 5272400MPa
Tensile Strength YieldISO 52761.0MPa
Elongation YieldISO 5275.6%
Elongation BreakISO 527110%
Flexural Strength 2.0mm/minISO 17893.0MPa
Flexural Modulus 2.0mm/minISO 1782300MPa
Charpy Notch Impact 23℃ISO 17976kJ/m²
Charpy Un-notch Impact 23℃ISO 179NBkJ/m²
ThermalStandardValueUnit
HDT Unannealed 0.45MPaISO 75143
HDT Unannealed 1.8MPaISO 75129
CLE FlowISO 113596.5E-5cm/cm/℃
CLE xFlowISO 113596.6E-5cm/cm/℃
Electrical propertiesStandardValueUnit
Volume ResistivityIEC 600933E+16Ω.cm
Surface ResistivityIEC 600936E+15Ω
Dielectric Strength 1.0mmIEC 6024331KV/mm
Dielectric Strength 3.0mmIEC 6024318KV/mm
Dielectric Constant 1MHzIEC 602503.10
Dielectric Constant 100MHzIEC 602503.10
Dissipation Factor 1MHzIEC 602500.009
Dissipation Factor 100MHzIEC 602500.0006
CTI RatingUL 746A2PLC
FlammabilityStandardValueUnit
Flame Rating All Color 0.38mmUL94V-2
Flame Rating All Color 1.5mmUL94V-2
Flame Rating All Color 3.0mmUL94V-2
ULStandardValueUnit
Outdoor SuitabilityUL-746Cf1
UL FlameRating ALL0.38mmUL94V-2

Application



Optical lighting


It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

Electronic appliances

It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

Mechanical equipment

It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields

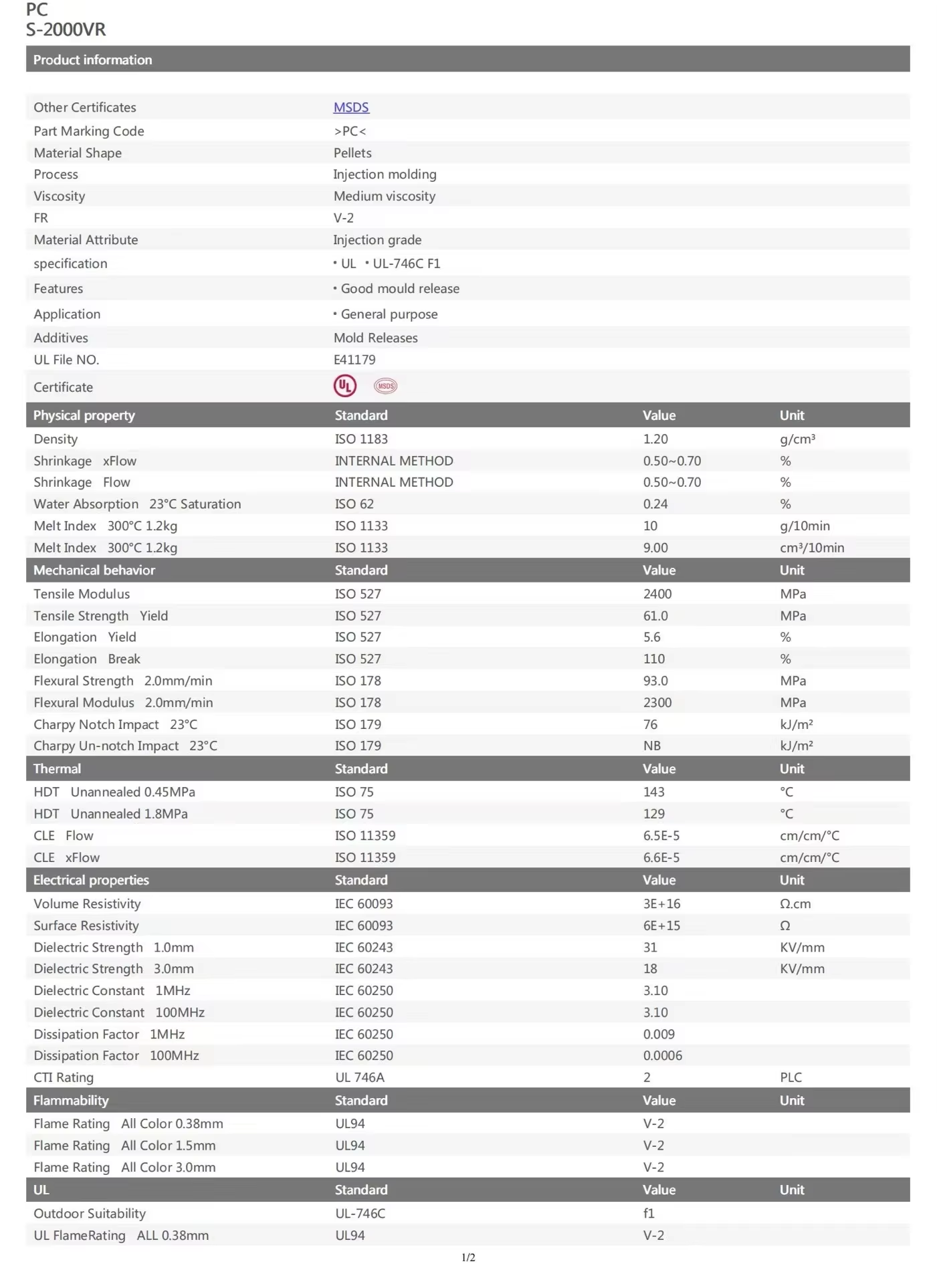

Physical Property Parameter​

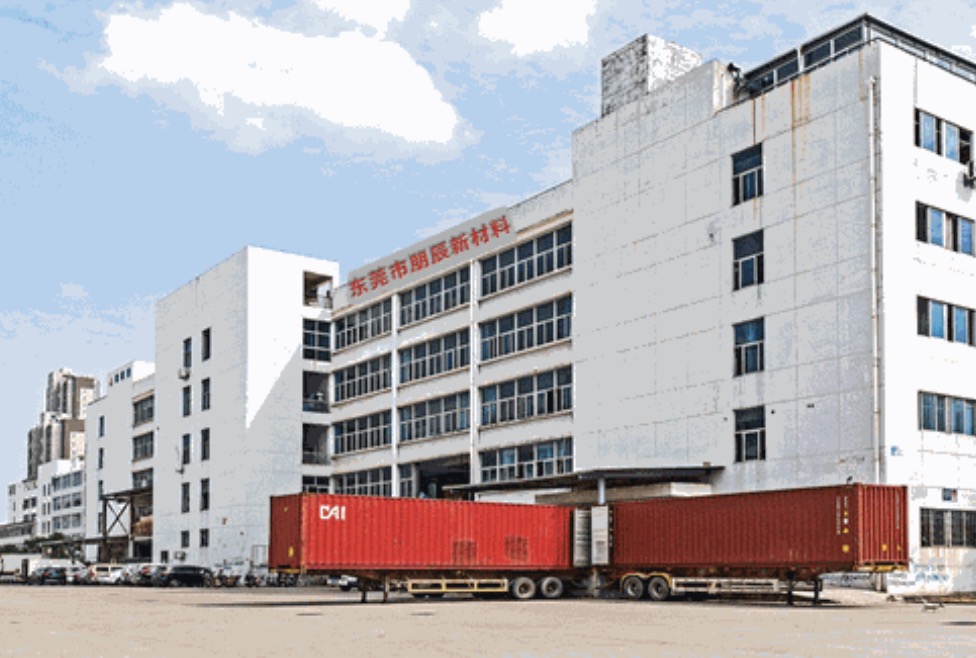

Company Profile:


Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater

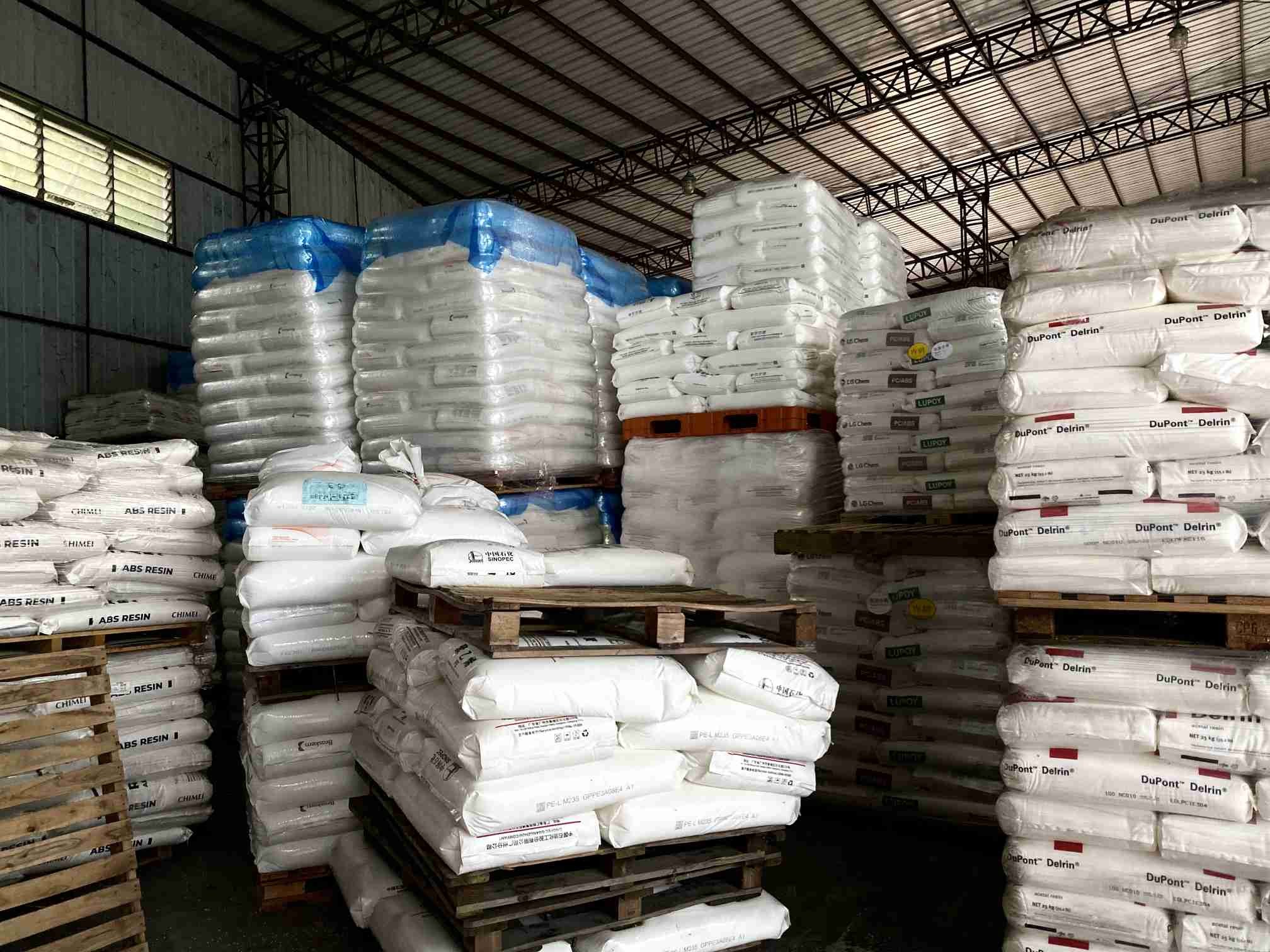

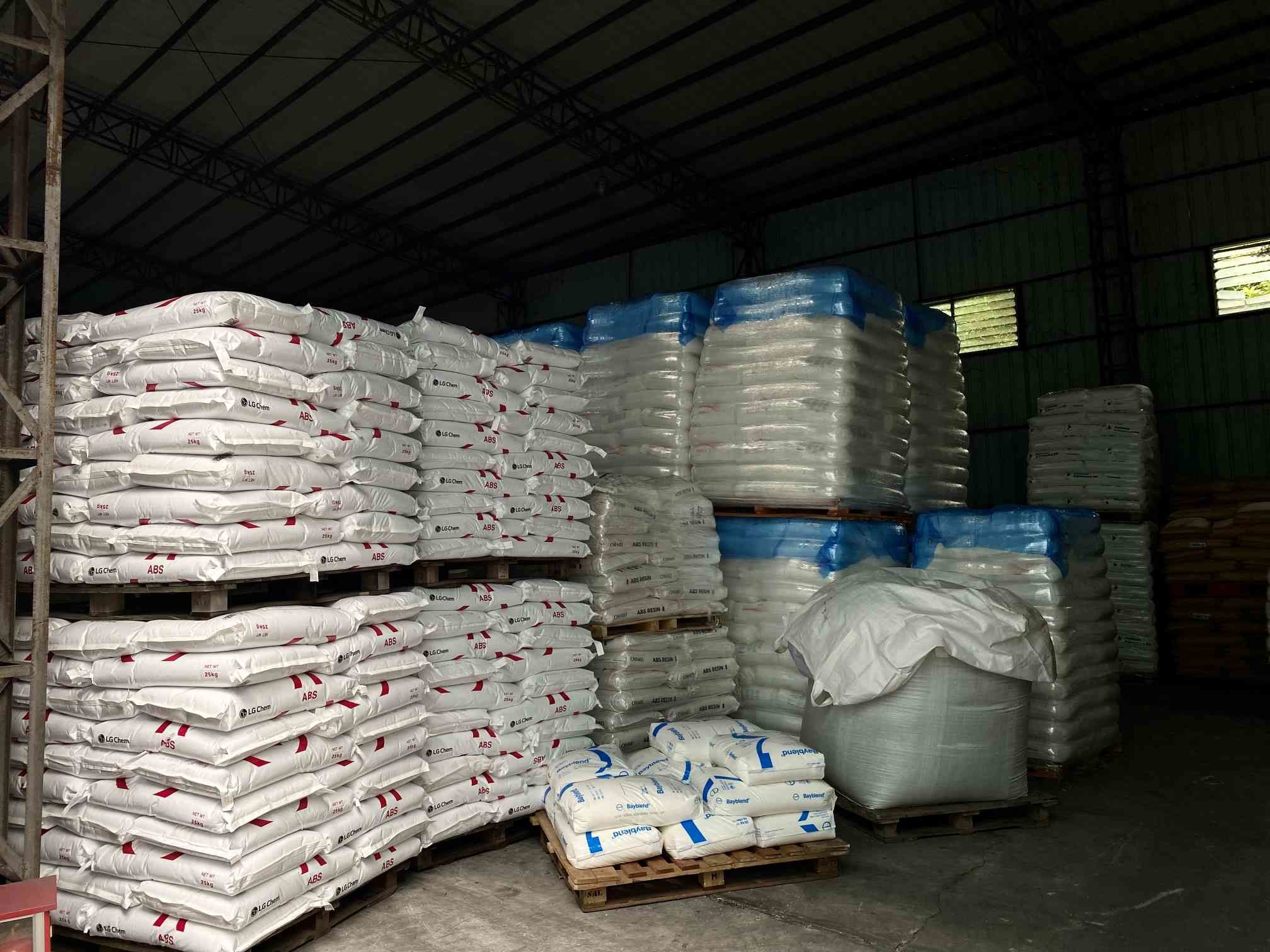

Warehouse:


FAQ

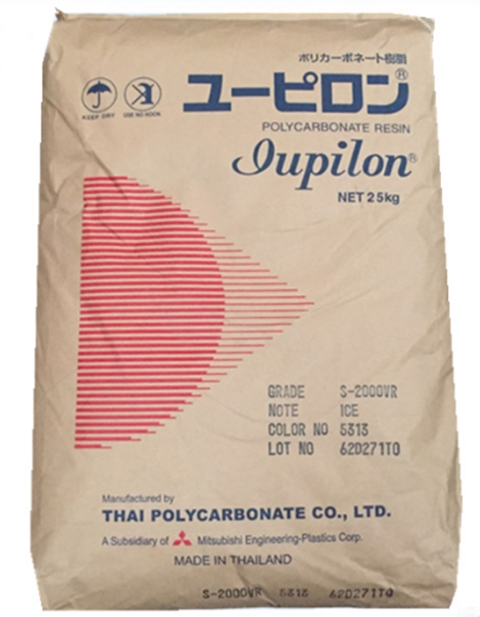

How about our package?
