| Brand Name: | KACISE |
| Model Number: | KLBH90E |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 1PCS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Piece/Pieces per Week negotiable |
| Delivery Time: | 5-8 work days |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Accuracy: | ≦±5% F.S. |
| Response Time: | ≦30s |
| Working environment: | DC3.7V Li-on battery, 1800mAh |
| Sensor: | -20℃～50℃, ＜95%RH (no dew) |
| Backlight: | ≧8h continuously (without alarming) |
| Alarm Type: | 6h~8h |
| Company Info. |
| Xi'an Kacise Optronics Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

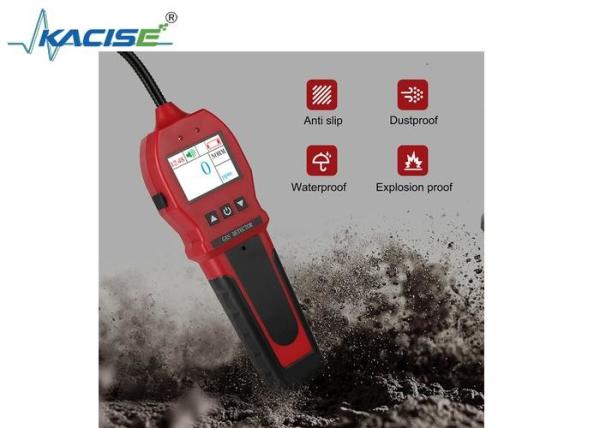

KLBH90E Chemical Engineering Gas Leak Detector
Introduction
The KLBH90E Chemical Engineering Gas Leak Detector is designed to meet the demands of the chemical engineering industry. Equipped with an imported high - quality semiconductor sensor and a 32 - bit MCU, it offers high sensitivity and adaptability. Operating within - 10℃ to 40℃, it can detect combustible gases in a range of 0 - 10,000ppm. The detector’s high - strength engineering plastics and anti - slip rubber construction make it durable. With a rechargeable 1800mAH lithium battery, it can work continuously for at least 8 hours, ensuring long - term monitoring in chemical engineering settings.
Product Features
*Natural diffusion sampling method and high-sensitivity sensor, with high sensitivity and repeatability.
*32-bit built-in MCU, high reliability and self-adaptation ability.
*Full functions, easy operation.
*Large LCD, more intuitionistic, abundant and clear indication.
*Compact design, easy carrying.
*High strength engineering plastics and compound anti-slippery rubber; high strength, water-proof, dust-proof and explosion-proof.
Technical Parameters
| Target gas | Combustible gas |
| Range | 0-10,000ppm (μmol/mol) |
| Sampling method | Natural diffusion |
| Alarm point | Default: Low alarm: 500ppm; High alarm: 2000ppm. |
| Support personalized setting. | |
| Alarm types | Audible buzzer alarm; Visual LED light alarm; Vibration alarm |
| Warm-up time | 60S |
| Response time | ＜30s |
| Sensor type | Imported FIGARO sensor |
| Sensor life | 2 years |
| Power supply | Rechargeable lithium battery, DC3.7V 1800mAH |
| Charging time | 6h-8h |
| Continuous working hours | No less than 8 hours (normal working environment) |
| Working condition | Temperature: -10～40℃ Humidity: ≤95% RH with no condensation. |
| Storage condition | Temperature: -20～50℃ Humidity: ≤85% RH, avoid caustic gases or substances. |
| Weight | Approx. 300g (excluding accessories) |
| Dimension | Approx. 210mm(L)×66mm(W)×30mm(H) |
| Packing list | Detector, Carrying case, Charger, USB cable, Warranty card, Thank-you card. |
|
