| Brand Name: | Luyoung |
| Model Number: | M7150x2000 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | USD32400-USD45000 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100sets |
| Delivery Time: | 45 working days |
| Packaging Details: | non-fumigation wooden box |
| Workbench size (width x length): | 500x2000mm |
| Maximum grinding size (width x length x height): | 500x2000mm |
| Workbench speed (stepless speed regulation): | 3-25m/min |
| Longitudinal movement of worktable (hydraulic): | 200-2100mm |
| Workbench load capacity (including electronic suction cup): | 1600kg |
| Company Info. |
| shandong lu young machinery co.,ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Specifications:
| Main technical parameters | unit | M7150×2000 | |
| Workbench | Workbench size (width x length) | mm | 500×2000 |
| Maximum grinding size (width x length x height) | mm | 500×2000 | |
| Longitudinal movement of worktable (hydraulic) | mm | 200-2100 | |
| Workbench speed (stepless speed regulation) | m/min | 3-25 | |
| Number of T-slots on workbench | 3 | ||
| width | mm | 18 | |
| Workbench load capacity (including electronic suction cup) | kg | 1600 | |
| Electronic suction cup size (width x length) | mm | 500×1000 (2 pieces) | |
| Grinding head | Large lateral movement of grinding head | mm | 500 |
Grinding head transverse feed (stepless speed regulation) continuous Intermittent | mm/min mm/times | 0.8-3 5-25 | |
| Vertical hand wheel small scale | mm | 0.01 | |
| Vertical feed of grinding head per hand wheel rotation | mm | 0.5 | |
| Grinding wheel size (outer diameter x width x inner diameter) | mm | Φ 350 × 40 × Φ 127 | |
Motor power | Total capacity of electrical equipment | KVA | 20 |
Grinding head motor power Speed | KW r/min | 7.5 1440 | |
Work Accuracy | Parallelism of the machined surface to the base surface | mm | 300:0.02 |
| Work piece surface roughness | μm | Ra0.63 | |
Complete Machine parameter | Machine tool dimensions (approx.) (length x width x height) | mm | 5000 ×1875×2400 |
| Net weight (approx.) | Kg | 6300 |

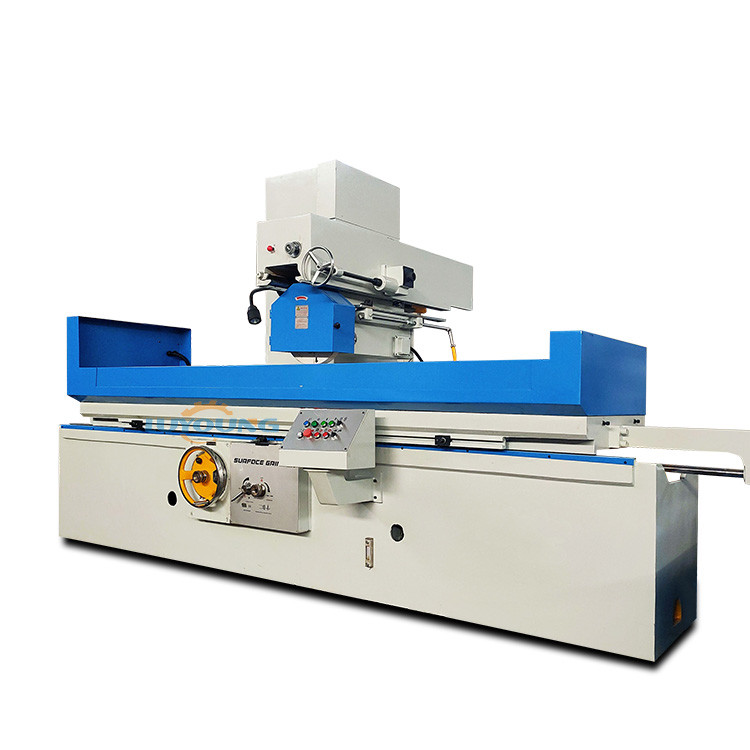

The M7150×2000 grinder is a large horizontal spindle rectangular table surface grinder, primarily used for processing the flat and inclined surfaces of large workpieces. It is suitable for precision grinding in industries such as heavy machinery, molds, and energy equipment. Key features include:
Large-scale processing capability: It can handle large workpieces efficiently.
High rigidity structure: Ensures stability during the grinding process.
Precision grinding performance: Offers high accuracy and smooth finishes.
Automation and operational convenience: Features automated systems for easier operation.
Safety and environmental design: Incorporates safety measures and environmentally friendly features.
This machine is designed to meet the demands of heavy-duty grinding tasks while providing precise results and ease of use.
|
