Walk-in Constant Temperature and Humidity Environmental Test Chamber

Categories Walk In Environmental Test Chamber
Brand Name: Sinuo
Model Number: SN886-12m³
Certification: Calibration Certificate (Cost Additional)
Place of Origin: China
MOQ: 1
Price: Customized
Payment Terms: T/T
Supply Ability: 10 sets/month
Delivery Time: 45 days
Packaging Details: Other
Applied Standard: IEC60068-2-78, etc.
Effective Volume: 12m³
Temperature Range: -40°~ 150℃
Temperature Fluctuation: ±2℃
Humidity Range: 20%RH~95%RH
Humidity fluctuation: ±2.0%RH
Heating Rate: ≦3.0℃/min (non-linear, no load)
Cooling Rate: Average 1.0℃/min (non-linear, no load)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

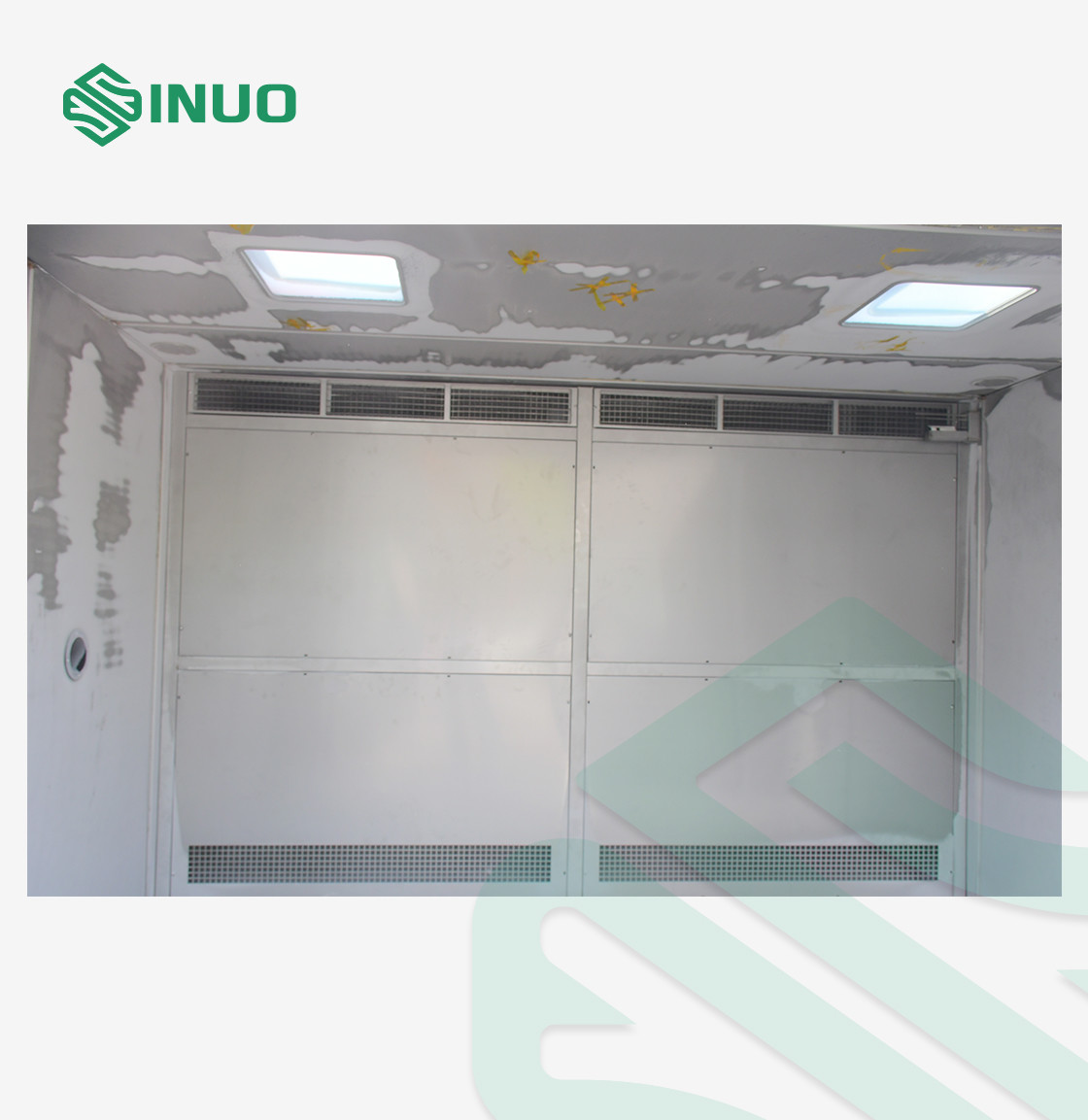

Walk-in Constant Temperature and Humidity Environmental Test Chamber


Walk-in Constant Temperature and Humidity Environmental Test Chamber


Complied Standards & Clauses



IEC 60068-2-1 Test A: Low-temperature test method.

IEC 60068-2-2 Test B: High-temperature test method.

IEC 60068-2-3 Test Ca: Constant damp heat test method.

IEC 60068-2-30 test Db: alternating damp heat test method.


Equipment Overview



This walk-in chamber provides precise, programmable control of both temperature and humidity, making it ideal for environmental simulation testing of large components, EV systems, aerospace parts, electronics, and industrial equipment.Designed for high-precision environmental testing, this spacious 12m³ walk-in chamber simulates extreme temperature and humidity conditions to ensure product durability and reliability. Ideal for EV components, electronics, aerospace, and industrial materials testing.


Technical Parameters



Volume and dimensions
Effective volume12m³
Inner chamber size3000 mm*2000 mm*2000mm(W*H*D)

Outer chamber size

Approximately 3700 mm*2200 mm*2300 mm(W*H*D)

Warm reminder: Please refer to the three views of the final design for external dimensions.

Container size

The inner dimensions of the 40HQ container are 12.032m (L)*2.352m (W)*2.69m(H)

The door is 2.55M high (it will be extra wide after being packed with wooden boxes)

Performance
Cooling methodWater cooling
Temperature range-40°~ 150℃
Humidity range20%RH~95%RH
Temperature/humidity fluctuation±2℃/±2.0%RH
Temperature analysis accuracy0.01℃
Humidity analysis accuracy0.01RH
Temperature uniformity≤2℃
Humidity uniformity< 75%RH:±3%RH >75%RH±5%RH
Heating rate≦3.0℃/min (non-linear, no load)
Cooling rateAverage 1.0℃/min (non-linear, no load)
Load conditionNo load
