| Categories | GATE VALVE |
|---|---|
| Brand Name: | PVPT |
| Model Number: | Z45X |
| Place of Origin: | China |
| MOQ: | 1 PC |
| Price: | EXW FOB CFR CIF |
| Payment Terms: | L/C, T/T, Western Union |
| Delivery Time: | 30 days after receiving down payment |
| Packaging Details: | wooden cases, pallets or as per customer request |

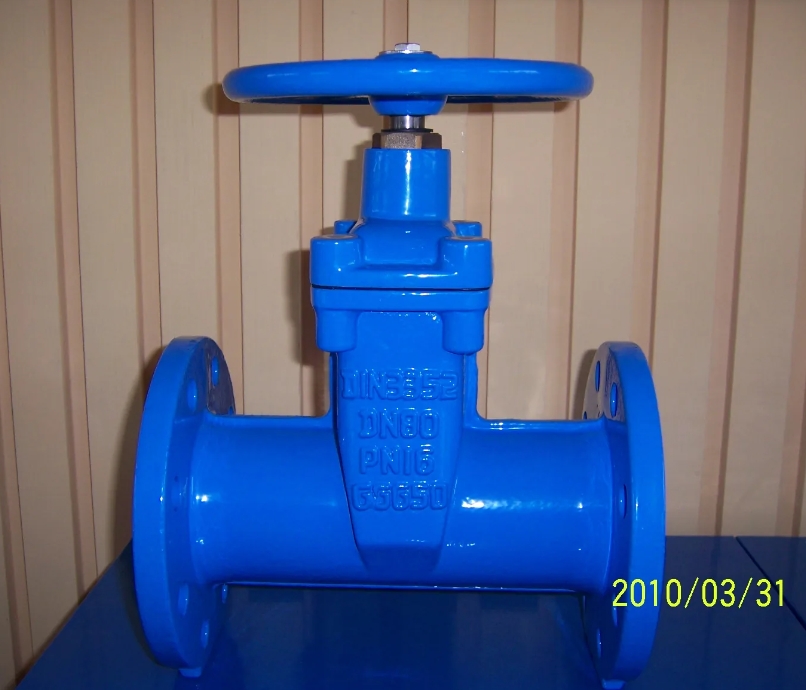

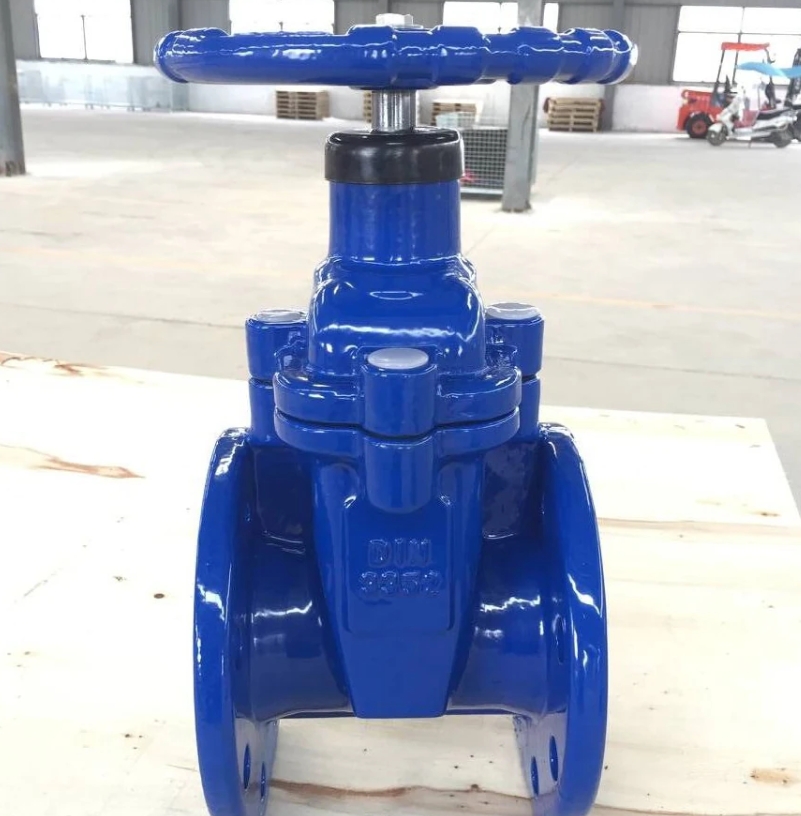

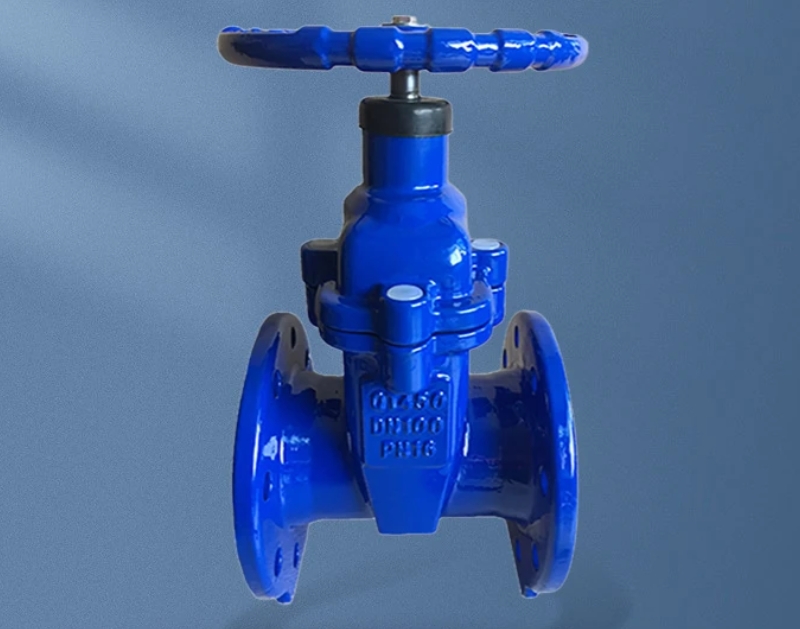

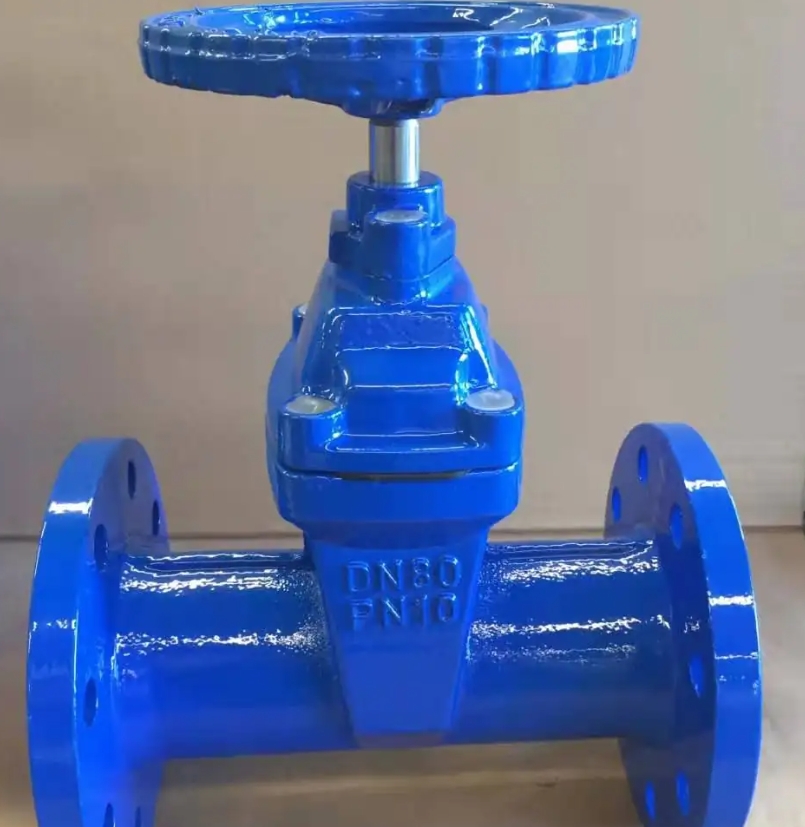

DIN F5 Z45X NON-RISING stem flanged resilient seal gate valve
These gate valves are designed and manufactured according to DIN3352 standard.
F5 is the length of face to face.
flanged resilient seal gate valve range:
1.Production Size:DN50-DN600mm
2.Pressure range:PN10,PN16,PN25
flanged resilient seal gate valve Standard:
1.Design Standard:DIN3352
2.Face to Face:DIN3202 F5
3.Flange Standard:EN 1092
4.Testing Standard:EN12226
flanged resilient seal gate valve Main Material of parts:
1.Body:GGG45/GGG50
2.Bonnet:GGG45/GGG50
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Stem Nut:brass
5.Disc:GGG45/GGG50
6.Seat:EPDM/NBR/PTFE
7.Hand wheel:GGG45/GGG50
