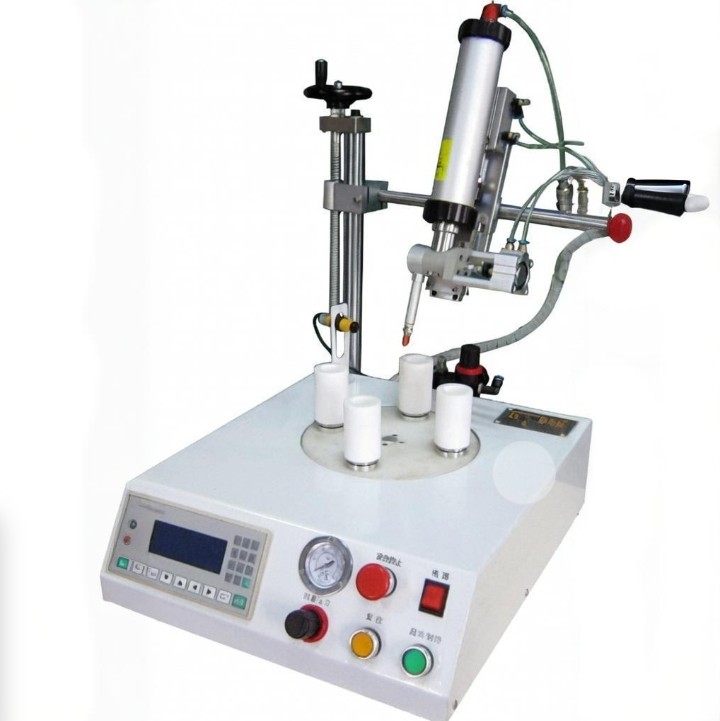

200W Glue Dispensing Machine Round Adhesive Dispensing Equipment Four Station

T120 bulb diffuser silicone bonding done by four station round glue dispensing machine

Machine description

LED T-bulb is a high power illumination product. The bulb housing and diffuser bonding is generally done by silicone glue application. GDS four station round glue dispensing machine is designed for this assembly step automation. Compared with manual glue application, GDS automatic glue dispensing machine can be faster in efficiency and better in quality. No matter for industry leading manufacturers or small workshops, this is a practical tool which can obviously and quickly improve T-bulb production quality and capacity.

Beyond efficiency, the technology enhances product durability. Proper adhesive distribution prevents common issues like air gaps or overheating, extending bulb lifespan to over 50,000 hours. For businesses, this translates to lower maintenance costs and higher customer satisfaction.

As industries worldwide transition to eco-friendly solutions, our state-of-the-art glue dispensing system empowers LED manufacturers to lead the charge.

Upgrade your production line today and become a pioneer in next-generation lighting solutions.

Contact us to discover how our four-station technology can elevate your LED T-bulb quality and output.

Machine features

Four work stations in cycle, the designed capacity is 1000~1500pcs/h;
Equipped work piece detector to decide gluing or skip;
Gluing track can be set as full circle, single point or segmented arc etc.
Working mode can be four-station or two-station;
It is easy to learn and operate with touch screen and buttons, for different glue with different settings ensure the best performance;

Technical parameters

Model	JD-40
MCU	Industrial PLC
Programming	Text Demonstration Programmer
Drive mode	Precise Stepping Motor
Max Dispensing Diameter	160mm(two station),110mm(four station)
Motor Speed	0 ~ 300 RPM
Positioning Accuracy	±0.1mm
Z-axis Adjust Range	250mm
Z-axis Working Travel	50mm
Dimension (LWH)	420mm532mm532mm
Weight	35Kg
Working Power	AC220V/50～60Hz/200W
Working Air Pressure	0.4~ 0.6Mpa(no condensation)
Working Temperature and Humidity	Temperature: 0~40℃,Humidity: 20~90%
