420 Rectangular Stainless Steel Pipe Long Lasting Low-Maintenance

Categories Stainless Steel Pipe
Brand Name: HYX
Model Number: 420
Certification: CE ISO CNAS CQC
Place of Origin: China
MOQ: 1Ton
Price: $1500-$2400
Payment Terms: T/T,L/C
Supply Ability: 30000Tons/Month
Delivery Time: 7-15days
Packaging Details: Standard package
Application: Industry, Construction, Decoration
Length: 10-12000mm or as Customized
Material: Steel
Standard: ASTM, AISI, DIN, EN, GB, JIS
Shape: Round
Technique: Cold Rolled
Outer Diameter Range: 1-2000mm
Thickness Range: 0.5-200mm
Tolerance: 0.1mm
Surface Finish: Polished
Edge: Mill Edge Slit Edge
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

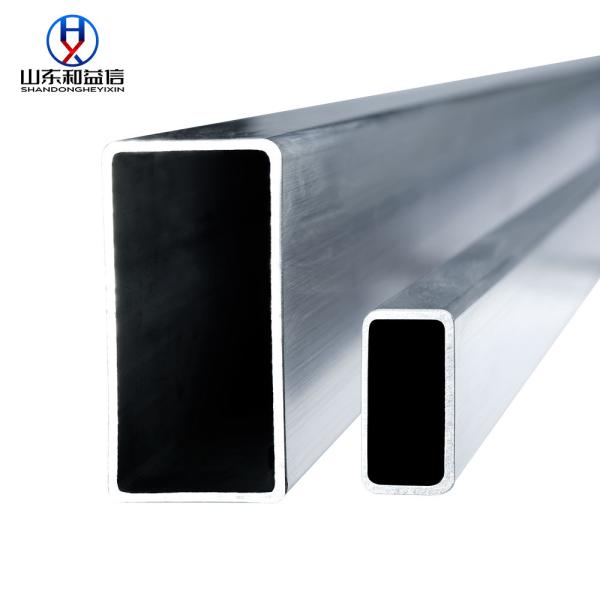

420 Rectangular Stainless Steel Pipe Long Lasting Low-Maintenance

420 stainless steel pipe is a medium carbon (0.15% to 0.40%) chromium stainless steel. 420 stainless steel has limited heat resistance and is more suitable for low-temperature working environments. Its maximum operating temperature is usually 650°C. Heat treatment processes, such as solution treatment and quenching and annealing, can be performed to improve the heat resistance of 420 stainless steel. These treatments can improve the material's grain boundary structure and grain size, thereby improving its heat resistance. 420 stainless steel pipe has lower heat resistance than other heat-resistant stainless steels and works more efficiently in low temperature environments. In high temperature applications, it is recommended to choose stainless steel materials with better heat resistance.


Product Parameters

Product Name420 Stainless Steel Pipe
TypeSteel Pipe
Outer diameterRound Tube4mm-200mm
Square Tube10*10mm-100*100mm
Rectangular Tube10*20mm-50*100mm
Wall Thickness0.6mm-6.0mm
Length1-6 meters, Length can be customized
StandardASTM, AISI, JIS, GB, DIN, EN, etc.
SurfaceBlack, Bright Polished, Rough Turning, Matt Surface Treatment, No. 4. BA, etc.
Scope of Application

Common applications for stainless steel pipes include food processing,

Textile operations, Breweries, Water treatment plants, Oil and gas processing,

Fertilizers and pesticides, Chemical applications, Construction, Pharmaceuticals, Auto parts, etc.

CertificateISO, SGS, BV, etc.
Production TechnologyHot Rolling, Cold Rolling
Edge ProcessingEdging, Trimming

Chemical Composition

CSiMnCrSP
≤ 0.15≤1.0≤1.012.0~14.0≤ 0.03≤ 0.04

Mechanical Properties

Tensile Strength Kb (MPa)Yield Strength σ0.2 (MPa)Elongation D5 (%)Hardness
≥634≥440≥20Annealing≤ 223HB; quenching and tempering ≥ 192HB

Physical Performance

Density(g/cm³)Modulus of Elasticity(Gpa)Coefficient of Thermal Expansion(10-6/°C)Coefficient of Thermal Conductivity(W/m*K)Resistivity(ΜΩ. cm)
7.7420010.224.955
