100-120Kg/H PP Strap Band Production Line With Double Embossing To Make 5-19mm Width

Categories PP Strap Making Machine
Brand Name: JIATUO CHINA
Model Number: JTPP-90
Certification: IS CEO
Place of Origin: CHINA
MOQ: 1 SET
Price: Negotiable
Payment Terms: L/C, T/T
Delivery Time: 30-40days
Packaging Details: plastic film
Strap Color: Single/Multi-Color
Strap Speed: >250m/min
Strap Core Diameter: 406*150mm / 200*180mm
Strap Thickness: 0.4-1.2mm
Strap Tension: Adjustable
Strap Width: 5-19mm
Power Supply: 380V/220V
Exchange Filter: Fully Automatic
Screw Size: Single and Double screw
Production Capacity: 2.8T-12T/24hours
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

100-120Kg/H PP Strap Band Production Line With Double Embossing To Make 5-19mm Width

100-120Kg/H PP Strap Band Production Line With Double Embossing To Make 5-19mm Width

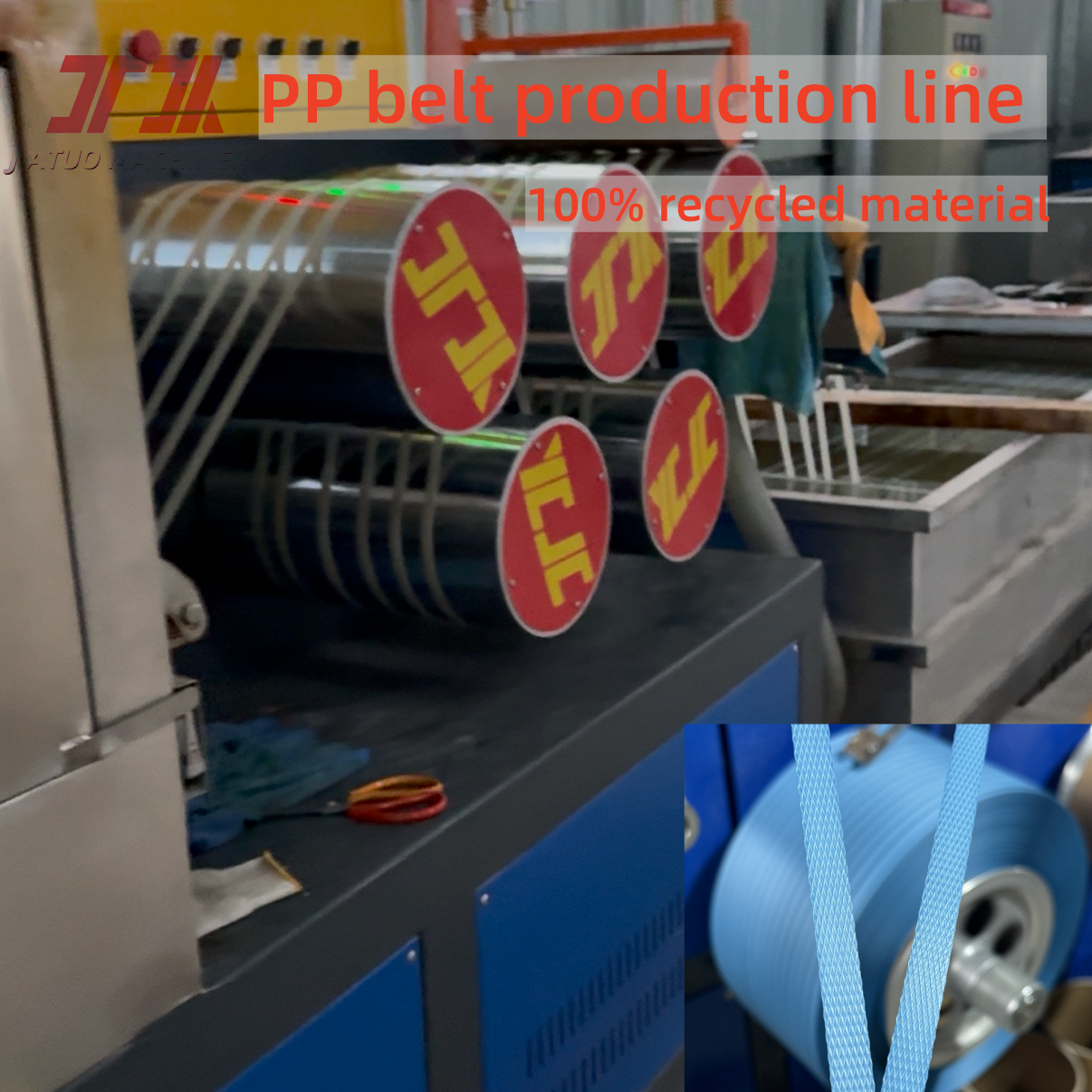

PP strap band extrusion line is mainly for producing PP strap.
The raw material can be 100% recycled material,which can reduce the produce cost and get a good profit. And the Pp bale is the substitution of the steel strap and has a lot of advantages such good extension,high temperature resistant,easy use.


Process flow of PP packing belt production line


① Feeding →② mixture material→③ pre-drying →④ melting and measuring extrusion →⑤ belt embryo cooling and forming →⑥ oven pre-heating →⑦ primary stretching →⑧ secondary stretching →⑨ embossing → oven tempering and setting → cooling → finished product winding


Tips: if you have a choose of printing that you can printing first and then embossing in the project of eight.


Specification of PP straps double output making machine


ItemProduct nameDetailed parameters
1MaterialsPP polypropylene new material/recycled material
2ProductPP strap
3Capacity100-150kg/h
4Total install power60kw, (Operating power 50-55%)
5Strap width5mm-19 mm
6Thickness0.4 mm-1.2 mm
7Manpower1-2person/shift
8Workshop requiredL (30m) ×W (2m) ×H (4m)
9Power source380V, 50Hz, 3Phase
10Electric componentsSchneider
11InverterINVT
12Switches+ThermostatTaiwan Fotek
13Motor powerGugao
14Solid state relayTaiwan Fotek
15BearingFSB

Advantage of PP belt making machine


1-Use 100% recycled material to reduce the cost
2-Good drying system to ensure the material equal dry to produce high quality strapping
3-Special design hot forming tensile tank to make good forming, equal width, straight strap.

FAQ


Q: What will you do for the order?
A: Our service likes below:
---------
Before order: We will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.
------During order: company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers' requirements and provides detail order list and matching manufacturer for reference for customer.
After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer's locale in time when we provide service for client again.
------ After order: we will offer 12months after sales service freely, but our service will be life-long. if some parts are broken, we will send them by express, air or ship as soon as we can
