| Categories | Aerosol Can Making Machine |
|---|---|
| Brand Name: | JG |
| Model Number: | JG-GSHJ-300 |
| Certification: | CE |
| Place of Origin: | CHINA |
| Welding Speed: | 15-40 M/Min |
| Output Capacity: | 300cpm |
| Lap: | 0.4mm |
| Can Height: | H70-320mm |
| Total Power: | 35KW |
| Copper Wire Diameter: | Φ1.38-1.5mm |
| Can Diameter: | Φ52-Φ153mm |
| Dimension(L*W*H): | 4650x 2300x 2500mm |
| Sheet Thickness: | 0.16-0.30mm |
| Machine Weight: | 5000KG |
| Company Info. |
| Foshan Jiegu Machinery Manufacturing co,.Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

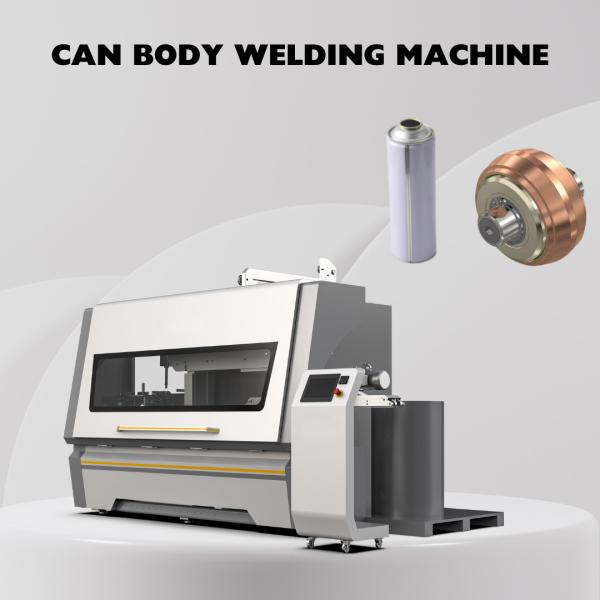

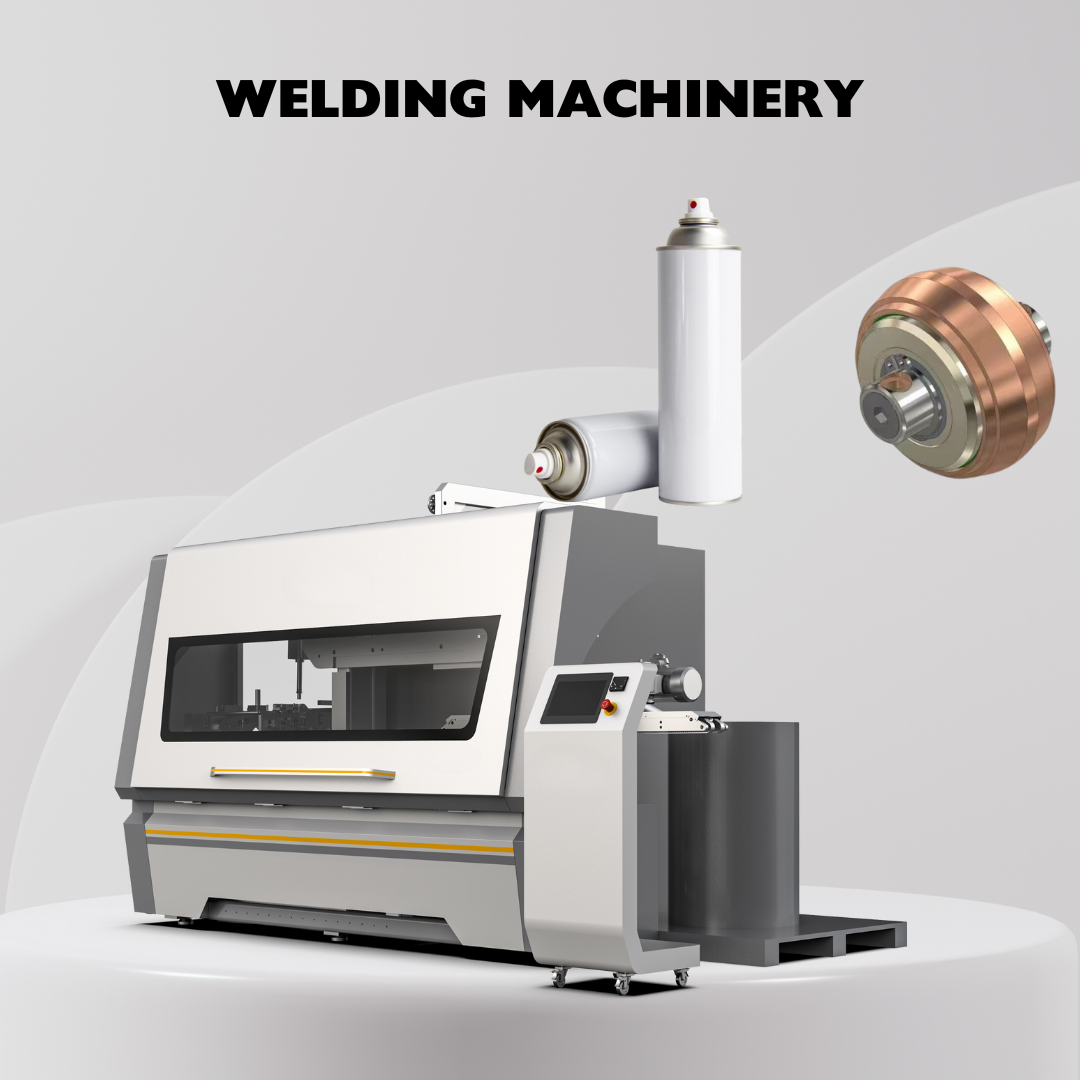

Automatic Can Body Welder Tinplate Aerosol 150-650 CPM
Description
Category | Details |
Functions | Auto sucking, blank-feeding, tinplate-rolling & rounding, pushing, welding |
Control System | Touch screen, human-computer interface, fault self-diagnosis |
Automation | Fully automatic, VVVF-driven main transmission |
Benefits | Precise control, reliable operation, easy adjustment |
Industry Use | Metal can production |
Details
Model | JG-HJ-150 | JG-HJ-300 | JG-HJ-500 | JG-HJ-650 |
Output Capacity(cans/min) | 150cpm | 300cpm | 500cpm | 650cpm |
Welding Speed | 6-18 M/Min | 15-40 M/Min | 25-70 M/Min | 85 M/Min |
Lap | 0.4mm | 0.3-0.4mm | 0.3-0.4mm | 0.3-0.4mm |
Copper Wire Diameter | Φ1.38-1.5mm | Φ1.38-1.5mm | Φ1.38-1.5mm | Φ1.38mm |
Can Diameter | Φ52-Φ180mm | Φ52-Φ153mm | Φ52-Φ180mm | Φ52-Φ73mm |
Can Height | H70-240mm | H70-320mm | H70-320mm | H70-150mm |
Sheet Thickness | 0.16-0.30mm | 0.16-0.30mm | 0.16-0.30mm | 0.16-0.22mm |
Total Power | 30KW | 35KW | 50KW | 50KW |
Machine Weight | 1800KG | 5000KG | 5000KG | 5000KG |
Dimension(L*W*H) | 2000x1900x1400mm | 4650x 2300x 2500mm | 4650x2300x2500mm | 4650x2300x2500mm |
Advantage
Production Line
|
