36 to 46 GHz 5dBm Low Phase Noise Amplifier With 20 DB Small Signal Gain

Categories RF Low Noise Amplifier
Brand Name: ZR Hi-tech
Model Number: LT-LA-360460-G20P5
Place of Origin: CHINA
MOQ: 1
Payment Terms: D/A,D/P,T/T
Delivery Time: 4 weeks
Packaging Details: carton packing
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

36 to 46 GHz 5dBm Low Phase Noise Amplifier With 20 DB Small Signal Gain

36 to 46 GHz LT-PA Series Power Amplifier

Quick Detail:

· Aluminum Housing

· Customizable Frequency

· -40℃~+70℃ Operating Temperature

· Small Signal Gain 20dB

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-LA-360460-G20P5 from ZR is a RF Amplifier with Frequency 36 to 46 GHz, Small Signal Gain 20 dB, Gain Flatness ± 1.5 dB, Output Power 5dBm, Input Power 10 dBm. Tags: Power Amplifier. More details for LT-LA-360460-G20P5 can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Items

Specification

Conditions

Part Number

LT-LA-360460-G20P5

Configuration

Module with Connector

Frequency Range

36 to 46 GHz

Small Signal Gain

20 dB

Gain Flatness

±1.5 dB

Output Power

5 dBm

Input Power

10 dBm

VSWR

2.5:1

Power Supply

+12V / TBD mA

Operating Temperature

-40 to +70 ℃

Dimension

35x35x16 mm

Note: for custom specs, please contact us directly.

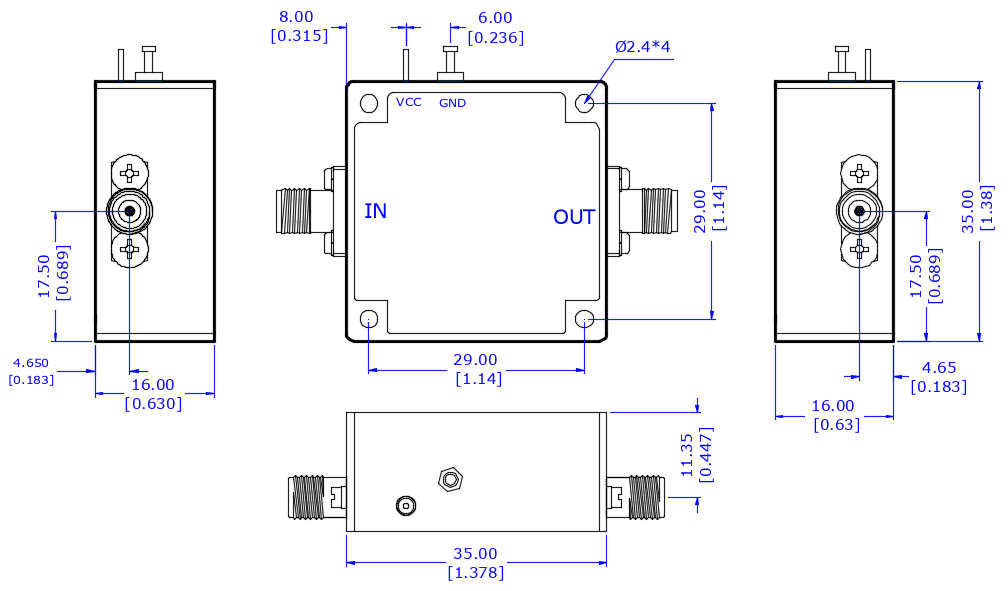

Outline Drawing (Unit: mm):
