1. Main Motor : SIEMENS BEIDE
2. Gearbox & Distributor case : GUOMAO
3. Screw & Barrel : ZHOUSHAN
4. Temperature meter : OMRON
5. Inverter: ABB
| Sign In | Join Free | My ecer.jp |
|
| Sign In | Join Free | My ecer.jp |
|
| Categories | PVC Pipe Machine |
|---|---|
| Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided |
| Core Components: | Engine, Bearing, Gear, Pump |
| Type: | Pipe Production Line |
| Pipe Material: | PVC |
| Application: | Drain Pipe |
| Place of Origin: | Shandong, China |
| Brand Name: | Deerma |
| Voltage: | 220/380/415/420/440V or customized |
| Power(w): | 80kw / 60kw |
| Dimension(L*W*H): | 26m*2m*2m |
| Weight: | 8 kg |
| Warranty: | 1 Year |
| Key Selling Points: | High Productivity |
| Machine name: | pvc pipe extrusion machine / pvc pipe making machine |
| Extruder: | SJZ65/132 |
| PVC Pipe Diameter: | 20-110mm |
| Tractor speed: | 0.8-10m/min |
| Capacity: | 180kg/h - 250kg/h |
| Main Motor: | SIEMENS BEIDE 37 kw |
| Contactor: | SIEMENS |
| Inverter: | ABB/DELTA/SIEMENS |
| Temperature Controller: | Omron FROM JAPAN |
| Guarantee period: | 12 months |
| Price: | CN¥252,525.00/sets 1-1 sets |
| Company Info. |
| QINGDAO DEERMA PLASTIC MACHINERY CO.LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
1. (PVC Powder +CACO + additive ) → Mixing (300/600 Mixer Machine)
2. SJZ65/132 PVC Pipe Production Line (Extruder - Vacuum
Calibration - Haul off - Printer -Cutter- Stacket - Belling)
3.Auxiliary Machines (Mixer , Crusher , Printer , Belling ....)
SPECIFICATIONS FOR PVC TWIN PIPE MACHINE (16-63MM) | ||||||
PVC Pipe Diameter | 16-40mm dual | 20-63mm dual | ||||
Extruder mode | SJZ51/105 | SJZ65/132 | ||||
Extruder power | 18.5kw AC | 37kw AC | ||||
Line Speed | 0.5-10 m/min | 0.5-15 m/min | ||||
Max Capaity | 120kg/h | 250kg/h | ||||
SPECIFICATIONS FOR PVC PIPE MACHINE (16-630MM) | ||||||||
PVC Pipe Diameter | 20-63mm | 75-200mm | 160-315mm | 315-630mm | ||||
Extruder mode | SJZ51/105 | SJZ65/132 | SJZ80/156 | SJZ92/188 | ||||
Extruder power | 18.5kw AC | 37kw AC | 55kw AC | 110kw AC | ||||
Line Speed | 0.5-10 m/min | 0.5-8 m/min | 0.5-6 m/min | 0.5-4 m/min | ||||
Max capacity | 120kg/h | 250kg/h | 350kg/h | 600kg/h | ||||
1. Main Motor : SIEMENS BEIDE
2. Gearbox & Distributor case : GUOMAO
3. Screw & Barrel : ZHOUSHAN
4. Temperature meter : OMRON
5. Inverter: ABB
1. Adjust the positioning in X, Y and Z axis
2. Equipped with Vacuum bump & water pump
3. Material : Stainless Steel
4. Calibration (Diameter and thickness of Pvc pipe)
5. Famous Electric

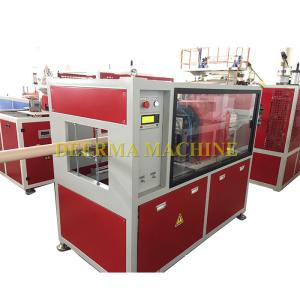

1.Tractor motor speed control:frequency control
2.Traction speed: 0.5-8m /min
3.Cutting way:Saw cutting
4.Clamping move:Manual operated
1. Material : Stainless Steel
2. Air operator turn over
3.Automatically pushes the material, decides long cuts
Certification | Certified By | Certificate No. | ||
ISO 9001:2008 | Beijing Hangxie Certification Center Co., Ltd.,CNAS | 03413Q21640R1M | ||
CE | European Inspection and Certification Company S.A. | CN.CE.0680-10/10 | ||
TUV | TÜV Rheinland | 7467484_P+T | ||
SGS | SGS-CSTC Standards Technical Services Co.,Ltd | QIP-ASR155278 | ||
Main Product Lines Verification | TÜV Rheinland | 7467487_P+T | ||
1.Inquiry and consulting support.
2.Sample testing support.
3.View our Factory
1.Training how to instal the machine, training how to use the
machine.
2.Engineers available to service machinery overseas.
