| Categories | Online Gas Monitoring System |
|---|---|
| Brand Name: | JUGE |
| Model Number: | AG-TPF07 |
| Certification: | IOS9001, CE |
| Place of Origin: | Nanjing, China |
| MOQ: | 1 Unit |
| Price: | USD500-2000 |
| Packaging Details: | Neutral carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | Online order,T/T |
| Supply Ability: | 100 Unit/Week |
| Product name: | Integrated Temperature Pressure Flow Rate Monitoring System |
| Flow Velocity Range: | 0-30m/S |
| Temperature Range: | 0-300 Celsius |
| Pressure Sensor: | Silicon Piezoresistive Pressure Sensor |
| Temperature Sensor: | PT100 |
| Sampling Method: | Insertion-Type |
| Installation Method: | DN65 Flange Connection |
| Pitot Tube Length: | 500, 800, 1100, 1500 mm (Adjustable Pitot Tube) |
| Company Info. |
| Nanjing Juge Environmental Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

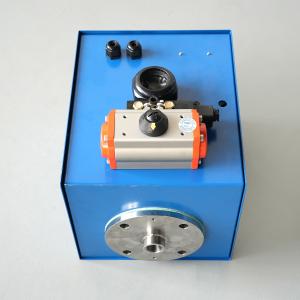

Cems Flue Gas Analyzer Integrated Temperature Pressure Flow Rate Monitoring System
>>Overview
| Range | Flow Velocity: 0-30 m/s (Startup threshold: 2 m/s) Pressure: ±2.5 kPa (gauge) Temperature: 0-300°C |
| Accuracy | Flow Velocity: ±1% F.S Pressure: ±0.1% F.S Temperature: ±3°C |
| Resolution | Flow Velocity: 0.01 m/s Pressure: 0.01 kPa Temperature: 0.1°C |
| Pressure sensor | AG-TFP07-F: Silicon piezoresistive pressure sensor |
| Temperature sensor | PT100 |
| Sampling method | Insertion-type |
| Installation method | DN65 flange connection |
| Pitot tube length | 500, 800, 1100, 1500 mm (adjustable Pitot tube) |
| Working environment | Ambient Temperature: -25 to 65°C Vibration: <1g acceleration |
| Display | OLED screen (4-digit numeric display) |
| Power supply | 220 VAC ±10%, 50 Hz, 1A |
| Output |
|
|
