| Categories | Online Gas Monitoring System |
|---|---|
| Brand Name: | JUGE |
| Model Number: | AG-NMHC07 |
| Place of Origin: | Nanjing, China |
| Certification: | IOS9001, CE |
| MOQ: | 1 Unit |
| Price: | USD1000-10000 |
| Packaging Details: | Neutral carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | Online order, T/T |
| Supply Ability: | 100 Unit/Week |
| Parameter: | NMHC, THC, CH4 |
| Range: | NMHC:(0-200)mgC/m3 |
| Detect limit: | 0. 1mg/Nm3 |
| Analyzer Heating: | 120ºC |
| Sample gas: | 80kPa- 110kPa |
| Catalytic Temperature: | 200ºC |
| Repeatability: | ≤ 1% |
| Linear Error: | ≤±1%F.S. |
| Company Info. |
| Nanjing Juge Environmental Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

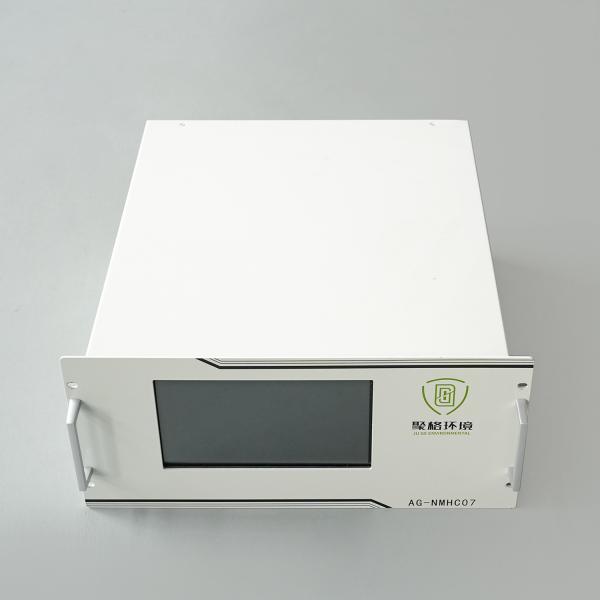

Online Vocs Waste Gas Non-Methane Total Hydrocarbon Gas Analyzer
>>Overview
The AG-NMHC07 Analyzer is a non-methane hydrocarbon (NMHC) emission monitoring system based on catalytic oxidation and flame ionization detection (FID) principles. It provides real-time measurement of total hydrocarbons (THC) and non-methane hydrocarbons (NMHC) concentrations in industrial flue gases. This analyzer is designed for monitoring organic compound emissions from stationary pollution sources across industries such as petrochemicals, chemical manufacturing, industrial coating, packaging/printing, rubber products, electronics, organic solvent production, automotive manufacturing, pharmaceuticals, and others.
| Manufacturer | JUGE | Model | AG-NMHC07 |
| Parameter | NMHC, THC, CH4 | Size | 500mm×482(435)mm×213mm (L×W×H) |
| Range | NMHC:(0-200)mgC/m3 | Weight | 25.2kg |
| Detect limit | 0. 1mg/Nm3 | Working environment | (5~40)ºC (0~95)%RH |
| Analyzer Heating | 120ºC | Sample gas | 80kPa- 110kPa |
| Catalytic Temperature | 200ºC | Hydrogen Supply | Purity: ≥99.99% Source: Hydrogen cylinder or hydrogen generator Pressure: 0.2 MPa |
| Repeatability | ≤ 1% | Air Supply | Clean air, hydrocarbon concentration ≤0.3 mg/m³ Pressure: 0.4 MPa |
| Analysis Cycle | ≤ 10s(, 300s) | Drive gas | Dehumidified, dust-free, oil-free compressed air Pressure: 0.4 MPa |
| Zero Point Drift, Span Drift | ≤±2%F.S./24h | Calibration Gas | Methane/propane single-component or mixed standard gas Pressure: 0.2 MPa |
| Linear Error | ≤±1%F.S. | Power supply | 220 VAC ,50Hz |
| Catalytic Efficiency | ≥98% | Power Consumption | 500w , 150W |
| CH4 Retention Rate | ≥98% | Communication Protocol | Modbus |
|
