| Categories | Seam Welder Machine |
|---|---|
| Certification: | CE ISO |
| Packaging Details: | Wooden Box |
| Supply Ability: | 55 Set/Sets per Month |
| Price: | 100 |
| Brand Name: | XioFiTec/Hanyan |
| Model Number: | XioFiTec/Hanyan |
| condition: | New |
| machine type: | Welding Manipulator |
| place of origin: | Sichuan, China |
| brand name: | HANYAN |
| warranty: | 1 Year |
| weight (kg): | 280 |
| voltage: | AC220V 10% 50/60Hz |
| current: | 500A( max welding current) |
| rated capacity: | Depends |
| rated duty cycle: | Depends |
| dimensions: | 906*1000*2029mm |
| usage: | Welding Machine |
| Application: | Automatic welding |
| Materail: | SS |
| Color: | Optional |
| Weight: | 280 kgs |
| Applicable Industries: | hotels, Manufacturing Plant |
| Showroom Location: | None |
| Video outgoing-inspection: | Not Available |
| Machinery Test Report: | Not Available |
| Marketing Type: | New Product 2020 |
| Warranty of core components: | 1 Year |
| Core Components: | Pressure vessel |
| Key Selling Points: | Accurate temperature control |
| Port: | ShangHai/NingBo |
| Company Info. |
| Chengdu Xiofitec Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

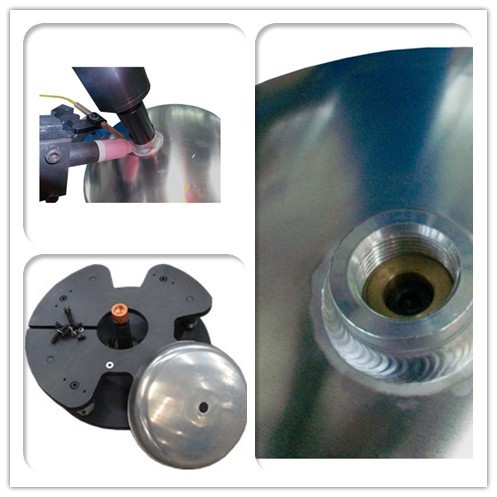

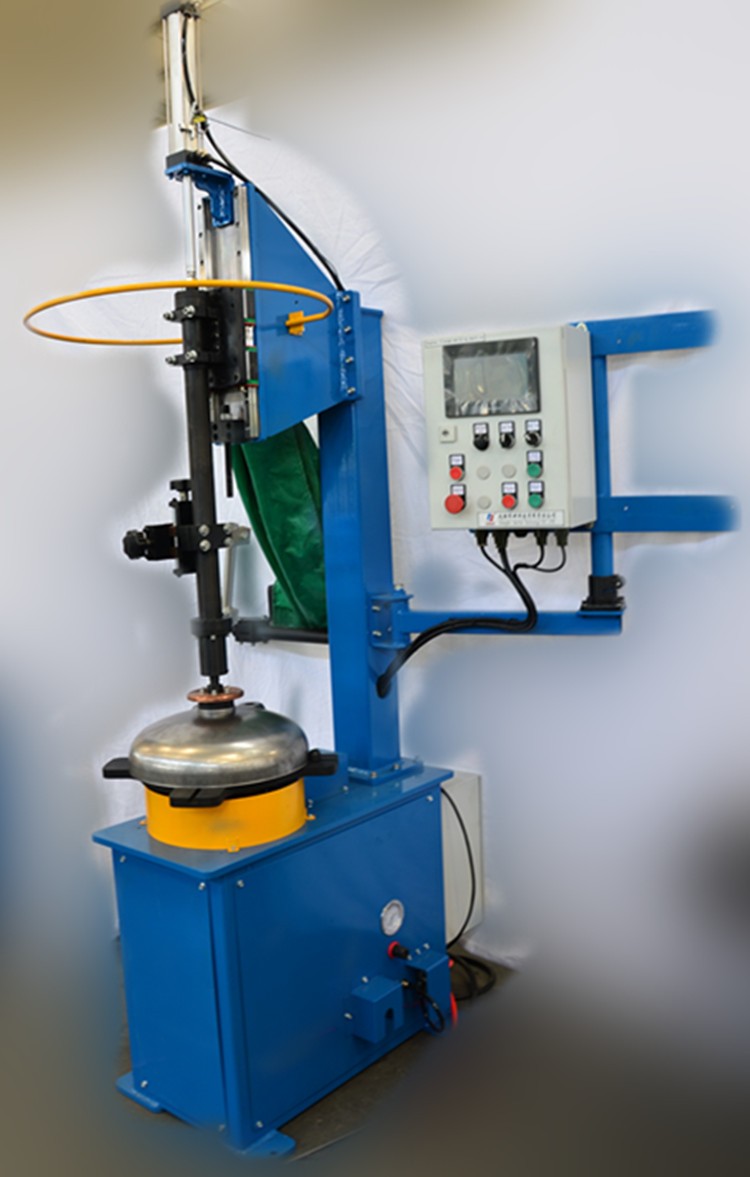

1.Faceplate: arranged on headstock,to meet more different workpiece.
2.Rotary headstock: driven by AC gear motor,speed controlled by frequency converter.
3.Torch: manual 3D adjustment mechanism, moving with pressing device.
4.Advance PLC system: humanized HMI, high automation and stability
5.Welding current detection switch.
Model | HGT-3C | HF-300W | HF-300WS | HF-300L | HF-300LY | ||||
Workpiece Diameter(mm) | 10-120 | 10-200 | 10-600 | ||||||
Welding Length(mm) | ≤500 | ≤1200 | |||||||
Welding thickness(mm) | Depends on shape of opening | ||||||||
Rotation speed of headstock(rpm) | 1-10rpm | ||||||||
Rotation diameter of workpiece (mm) | ≤350 | ≤550 | ≤600 | ||||||
Spindle diameter (mm) | ≤30 | ≤50 | ≤100 | ≤50 | |||||
Workpiece's weight(kg) | ≤30 | ≤50 | ≤250 | ||||||
Welding Speed(mm/min) | 120-1200 | ||||||||
Stroke of torch(mm) | 100 | 150 | |||||||
Angle of headstock | 0°,30°,45°,60°,90° | ||||||||
3D adjusting range of torch | X:±30mm; Y: ±30mm ; Z : ±50mm | ||||||||
Control power | Single phase 50HZ 220V | ||||||||
Welding power | Three phase 50HZ 380V | ||||||||
From now on, we obtained 5 Patents of invention and 13 Patents of
Utility Model; our products are approved by CCC and CE,
additionally, our company have had ISO 9001:2008, ERR and CRM
management system.
We exported to over 29 countries and regions including General
Longitudinal/Circumferential Seam Welder, Welding Auxiliaries,
Water Heater Welding Line, Fuel Tank Welding Line, Welding Robots,
Strip Welding Equipment, Resistance Welding Equipment, Welding
Power Sources and other Customized Welding Equipment.
|
