Single 3.3V±5% Power Source 25G SFP28 10km Fiber Optical Transceiver Speed Communications Equipment with 1 and Single Mode

Single 3.3V±5% Power Source 25G SFP28 10km Fiber Optical Transceiver Speed Communications Equipment with 1 and Single Mode

Single 3.3V±5% Power Source 25G SFP28 10km Fiber Optical Transceiver Speed Communications Equipment with 1 and Single Mode
Single 3.3V±5% Power Source 25G SFP28 10km Fiber Optical Transceiver Speed Communications Equipment with 1 and Single Mode
Categories Starsurge
Model Number: CC-PMM56(65)1L-XD
Place of Origin: China
Brand Name: Starsurge
Price: Negotiable
Certification: RoHS CE FCC UL
MOQ: 1 pc
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/month
Delivery Time: 2-7days
Packaging Details: carton
Type: Optical Transceiver
Use: Data Center Backbone, Ethernet Switches, High-Spee
Warranty Time: 1 year
Network: Fiber Optic Network
Port: SFP28 Port
Power Source: Single +3.3V±5%
Connector Type: LC Single Connector, Hot Pluggable 20pin Connector
Power - Minimum Receivable: <1.4W
Transmission Distance: Up to 15km
Data Rate: 24.33Gbps to 25.78Gbps
Operating Temperature Range: Commercial: 0°C to +70°C, Industrial: -40°C to +85°C
Laser Safety Class: Class I Laser Safety Compliant
Compliance Standards: SFP28 MSA, SFF-8431, SFF-8432, RoHS Compliant, SFF-8472
Contact Now
Company Info.
Hong Kong Starsurge Group Co., Limited
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Single 3.3V±5% Power Source 25G SFP28 10km Fiber Optical Transceiver Speed Communications Equipment with 1 and Single Mode

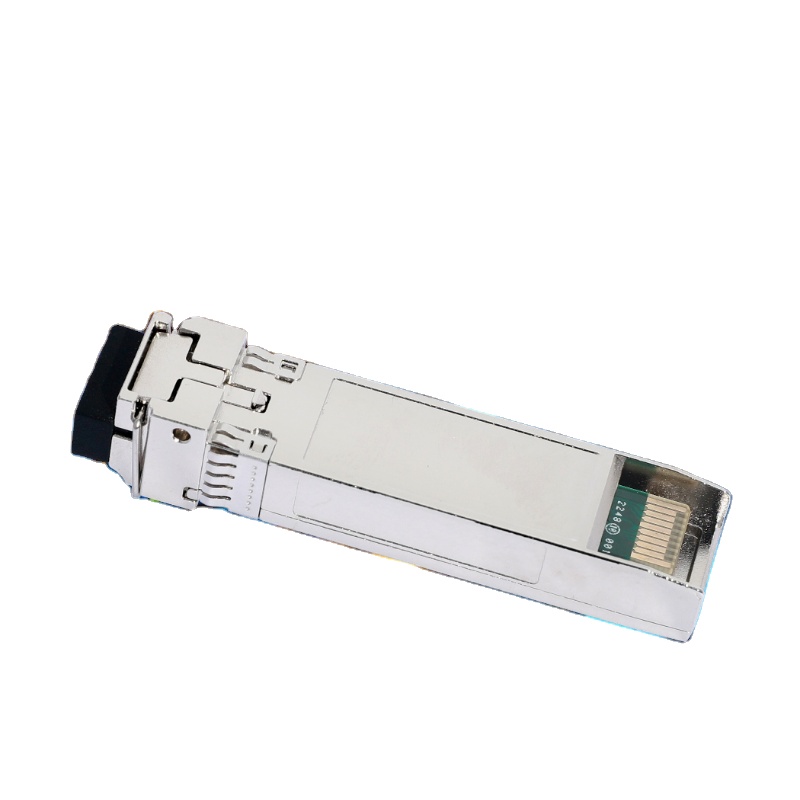

25G SFP28 15km BIDI Transceivers CC-PMM56(65)1L-XD

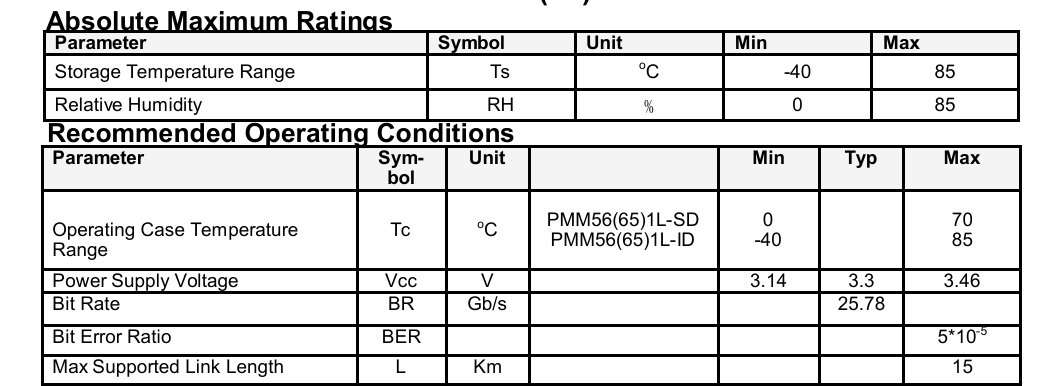

The CCM-PMM56(65)1L-XD Transceiver is intended for 15km reach service from 24.33Gb/s to 25.78Gb/s BI- direction single mode high-speed communications equipment where low-cost, extraordinary performance and relia- bility are essential. It consumes low power, operates base on 3.3V DC power supply and is offered in the industrial temperature range. They are compliant with SFP28 MSA, SFF-8431 and SFF-8432.

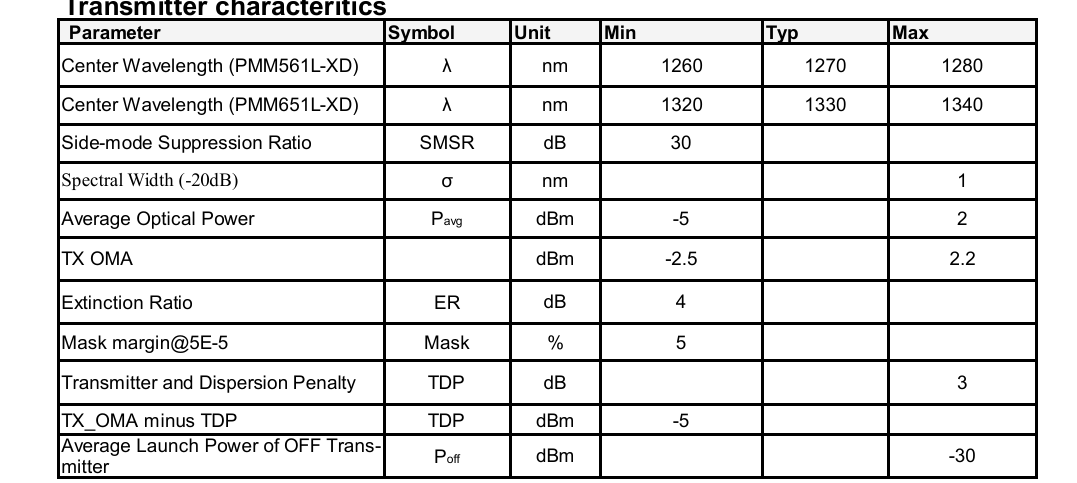

The low jitter and low bit error rate optical assembly features a DML laser transmitter and PIN/TIA receiver. It utiliz- es internal clock and data recovery (CDR) units on transmitter and the receiver chains for low jitter compliance. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device is Class I laser safety compliant.

Applications

Data Center Backbone
Ethernet Switches
High-speed Servers
High-performance Computing

Features
 Operating data rate up to 25.78Gbps
 Up to 15km transmission distance
 High sensitivity Pin photodiode and TIA
 Rate Adaptation
 LC single connector

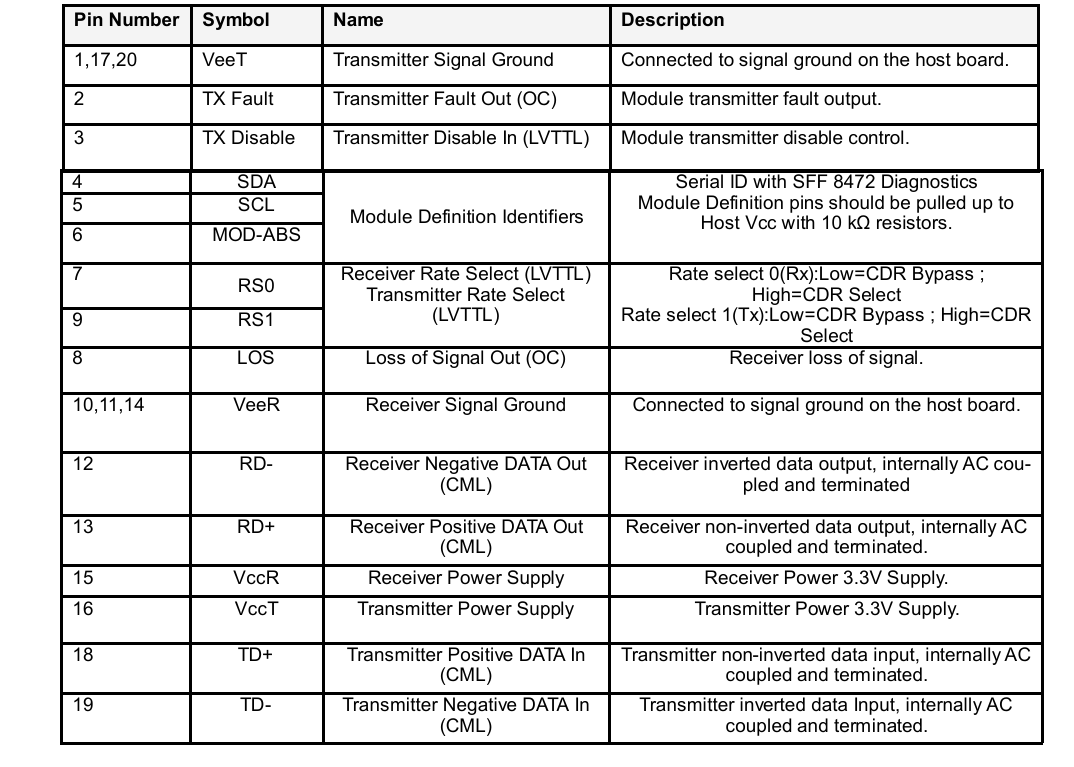

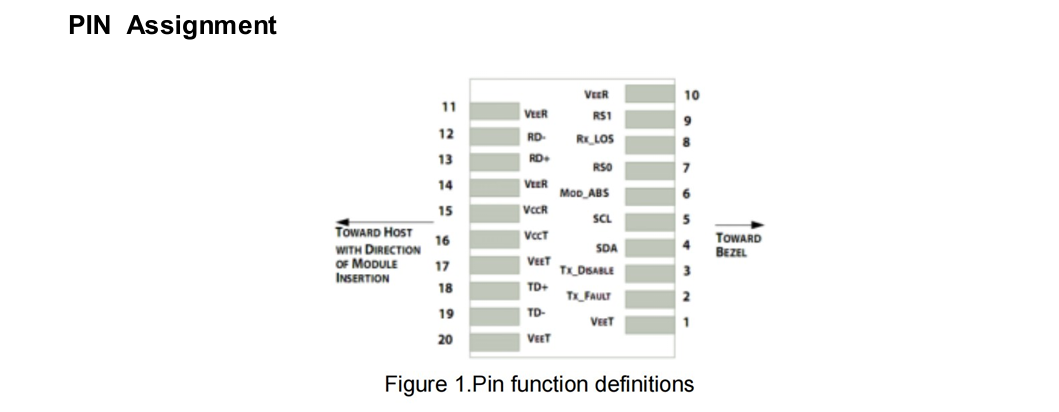

 Hot pluggable 20pin connector
 Low power consumption

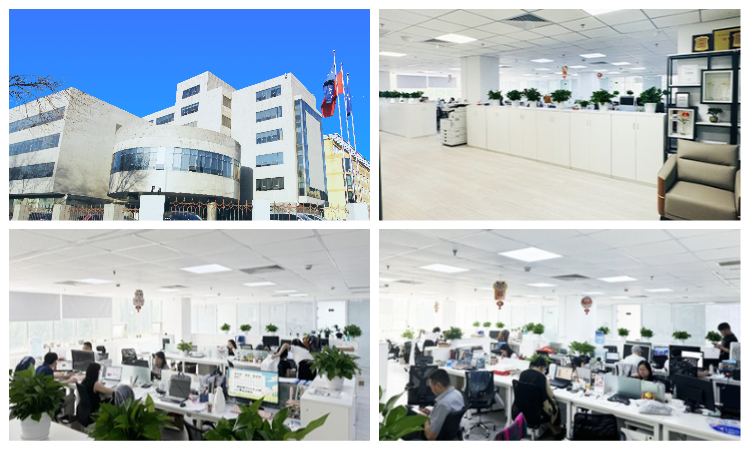

Our company is a professional network solution supplier. Based on the information industry, it integrates the research and development of computer network technology and system integration, and provides users with a full range of technical services such as network platforms, system platforms, and application platforms. Show users the solutions of various new network systems and application systems. Our clients cover industries such as government, finance, telecommunications, colleges, transportation,enterprises, hospitals, securities, and public services. The main products include Mellanox, Ruckus,Aruba,Extreme, etc. with favorable prices, rich product catalogs, and perfect after-sales services, the business continues to expand, and customers are all over the United States, South Africa, Europe, East Asia, Russia, and Australia And South America and other countries in the world, has accumulated rich experience in export and customer service. Always to the concept of"quality-oriented, service-oriented", and provide you with cost-effective products and solutions with high-quality professional standards, dedicated attitude and efficient service system. We are committed to building an ecological platform to contribute to the development of information technology!
Q1.What can you buy from us?
Mellanox, Aruba, Starsurge, Rukus, Extreme brand products, including switches, network cards, cables, modules,AccessPoint, etc.
Q2.How about the delivery date?
It usually takes 3-5 working days. For specific models, please contact us to check thestock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.
Q3.What's your warranty terms?
We supply 12 months warranty time.
Q4.How about the Shipping Method?
We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.
Q5.Can I get some samples?
Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.
Q6.What are your core strengths?
First-hand supply, Original and new products with the favorable price and perfect after-sales service
Q7.Price questions
The inventory turnover is fast, and the cost of each batch of goods fluctuates according to the market price. The final price is subject to the sales quotation. Please understand.
