| Categories | Schneider |
|---|---|
| Brand Name: | Schneider |
| Model Number: | LMC101CAA10000 |
| Certification: | ICE |
| Place of Origin: | Germany |
| MOQ: | 1 |
| Price: | USD 1000-2000 piece |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10PCS/ 4 weeks |
| Delivery Time: | 3-7 working days |
| Packaging Details: | Carton packaging |
| Product Name: | Motion controller |
| Application: | Control Motor |
| Voltage Range: | 400V |
| Color: | White |
| Protection Class: | IP20/IP65 |
| Certifications: | CE/UL/cUL |
| Shipping term: | DHL, FedEx, UPS, EMS |
| Number of axes: | Up to 64 |
| Memory capacity: | Up to 128 MB |
| Industry: | Automation |
| Material: | Metal and Plastic |
| Communication protocols: | CANopen, Ethernet, Profibus |
| Operating Temperature: | 0-55°C |
| Applications: | Packaging, food and beverage, pharmaceutical |
| Payment: | TT |
| Category | Specification Details |
|---|---|

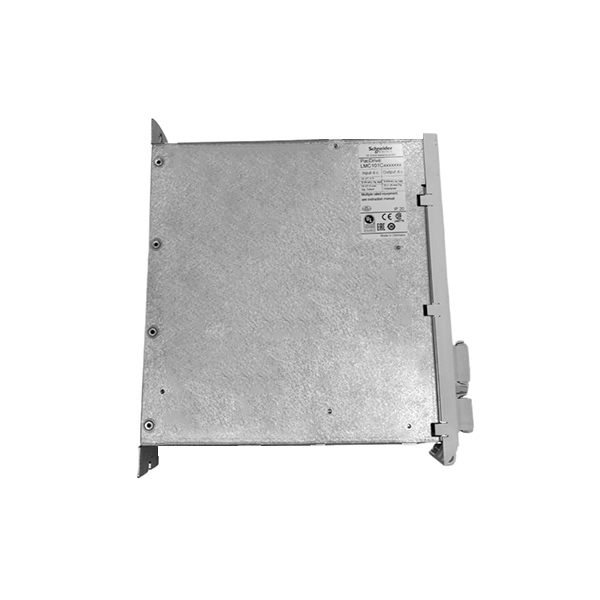

| Product Overview | The LMC101CAA10000 is a compact PacDrive 3 motion controller designed for industrial automation, supporting 4 axes with precision motion control, multi-protocol connectivity, and flexible programming. Ideal for small to medium machinery, robotics, and conveyor systems. |
| Product Range | PacDrive 3 |
| Product Type | Motion Controller |
| Compatibility | LMC101 Series |
| Key Features | - 4-axis control for synchronized motion - Multi-protocol communication (Sercos, CANopen, Ethernet/IP) - Real-time Ethernet (Sercos III) for high-speed data exchange - Integrated safety functions (IEC 61131-2 compliant) - 512 MB DDR2 RAM + 128 kB NVRAM for program storage |
| Motion Control | Number of Axes: 4 Interpolation Modes: Linear, circular Motion Profiles: PVT (Position-Velocity-Time), electronic gearing Encoder Interface: RJ45 master encoder port |
| Discrete Inputs | Digital Inputs: 8 (IEC 61131-2 Type 1, 15–30 V DC) Touch Probe Inputs: 4 (IEC 61131-2 Type 1, 3–5 V DC) Input Current: 4 mA per channel Anti-Bounce Filtering: Configurable (100 µs–4.29 s) Max Cable Distance: 50 m |
| Discrete Outputs | Digital Outputs: 8 (500 mA each, 24 V DC) Leakage Current: <0.5 mA |
| Expansion Capability | Max I/O Modules: 1 |
| Power Supply | Rated Voltage: 24 V DC (±15%) Power Consumption: 30 W |
| Memory | RAM: 512 MB DDR2 NVRAM: 128 kB |
| Programming | Languages: IL, CFC, SFC, LD, ST, FBD (IEC 61131-3 compliant) Software: EcoStruxure Machine Expert |
| Communication Ports | Ethernet: - 2x Sercos III (RJ45) - 1x 10/100BASE-T (FTP/HTTP) - 1x Master Encoder (RJ45) Fieldbus: - 1x CANopen (SUB-D 9) Serial: - 1x RS232/RS485 (RJ45) USB: 1x Type A |
| Physical Dimensions | Width: 44 mm Height: 270 mm Depth: 222 mm Weight: 2.2 kg |
| Environmental Ratings | Operating Temp.: 5–55°C Humidity: 5–95% (non-condensing) IP Rating: IP20 Vibration Resistance: 3.5 mm (5–8.4 Hz), 10 m/s² (8.4–150 Hz) Shock Resistance: 150 m/s² (6 ms) Operating Altitude: 0–2000 m |
| Certifications | CE, CSA, UL 508, EAC, cULus, EN/IEC 61131-2 |
| Sustainability | Green Premium Product: - REACh, RoHS, and China RoHS compliant - Mercury-free and PVC-free - Circularity Profile & End-of-Life Information |
| Ordering Information | Packaging: - Unit: 44 x 33 x 10.6 cm (LxWxH), 2.21 kg - Bulk (10 units): 80 x 60 x 75 cm, 32.1 kg Warranty: 18 months |
| Applications | - Packaging machines - Small robotics - Conveyor systems - Pick-and-place units |
Compact & Efficient: Manages 4 axes in a space-saving design (44 mm width).
Real-Time Communication: Dual Sercos III ports ensure µs-level synchronization.
High-Current Outputs: 8 digital outputs (500 mA each) for robust actuator control.
Sustainable Design: Compliant with REACh, RoHS, and mercury-free standards.
Flexible Programming: Supports all IEC 61131-3 languages (ST, FBD, CFC, etc.).
|
