| Categories | Fiber Optic Gyroscope |
|---|---|
| Brand Name: | Star & Inertia Technology |
| Model Number: | FOG（Merak-70S） |
| Place of Origin: | China |
| MOQ: | 1 set |
| Supply Ability: | 5000 set per year |
| Delivery Time: | 30 work days |
| Price: | $1000-$100000 |
| Performance\Dynamic Range: | ≥±400°/s |
| Performance\Bias in-run: | ＜1°/h |
| Performance\Accuracy（10sec）: | 0.05°/h~0.03°/h |
| Performance\ARW（Angular random walk）: | ＜0.005°/√hr,1σ |
| Performance\Vibration screening: | 20~2000Hz，6.06g |
| Performance\Bandwidth: | ＞200Hz |
| Electrical Interface\Turn on time: | 10s |
| Electrical Interface\Output signal format: | RS-422 |
| Electrical Interface\Built in self-test: | -- |
| Electrical Interface\Output signal update rate: | 500Hz~4000Hz |
| Electrical Interface\Output signal baud rate: | 115200bps~921600bps |
| Electrical Interface\Operating temperature: | - 40℃ ~ + 70℃ |
| Electrical Interface\Storage temperature: | - 55℃ ~ + 85℃ |
| Physical Specifications\Power supply: | 5V |
| Physical Specifications\Connector (9 pins): | J30J-15TJL |
| Physical Specifications\Power consumption: | ≤3w |
| Physical Specifications\MTBF (per MIL-HDBK-217-F): | ＞150000hr |
| Physical Specifications\Weight: | ≤300g |
| Physical Specifications\Dimensions: | 70mm×70mm×30mm |
| Company Info. |
| CSSC Star&Inertia Technology co.,ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

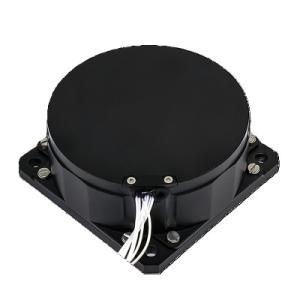

FOG(Merak-70S)
Our digital FOG product line utilizes advanced Sagnac effect detection to provide high-bandwidth (>4kHz) rotational measurements. Featuring shared-optics multi-axis designs and industrial-standard interfaces, it's ideal for: • Platform stabilization • Motion control • Robotics • Autonomous systems.
Key benefits: 1) Customizable form factors; 2) Solid-state reliability; 3) Plug-and-play operation; 4) Optimized noise/power performance; 5) Reduced lifecycle costs.
| Series | FOG Series | |
| Type | Merak-70S | |
| Performance | Dynamic Range | ≥±400°/s |
| Bias in-run | ＜1°/h | |
| Accuracy(10sec) | 0.05°/h~0.03°/h | |
| ARW(Angular random walk) | ＜0.005°/√hr,1σ | |
| Vibration screening | 20~2000Hz,6.06g | |
| Bandwidth | ＞200Hz | |
| Electrical Interface | Turn on time | 10s |
| Output signal format | RS-422 | |
| Built in self-test | -- | |
| Output signal update rate | 500Hz~4000Hz | |
| Output signal baud rate | 115200bps~921600bps | |
| Operating temperature | - 40℃ ~ + 70℃ | |
| Storage temperature | - 55℃ ~ + 85℃ | |
| Physical Specifications | Power supply | 5V |
| Connector (9 pins) | J30J-15TJL | |
| Power consumption | ≤3W | |
| MTBF (per MIL-HDBK-217-F) | ＞150000hr | |
| Weight | ≤300g | |
| Dimensions | 70mm×70mm×30mm | |
|
