Multi Cylinder Industrial Crusher Machine Hard Rock Crushing Hydraulic Cone Crusher

Multi Cylinder Hydraulic Cone Crusher Up to 40% Higher Capacity Than Single Cylinder Models

Product introduction

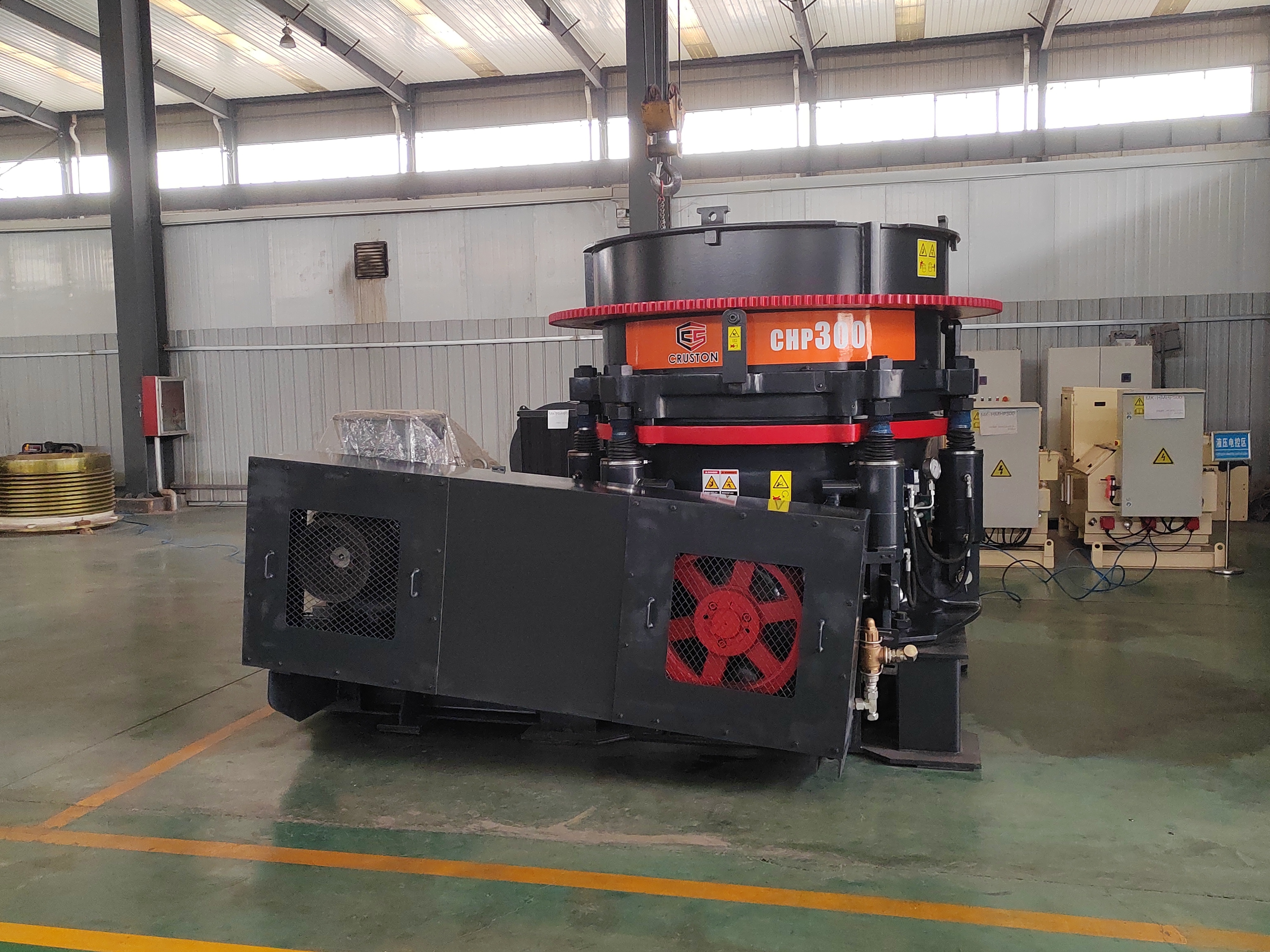

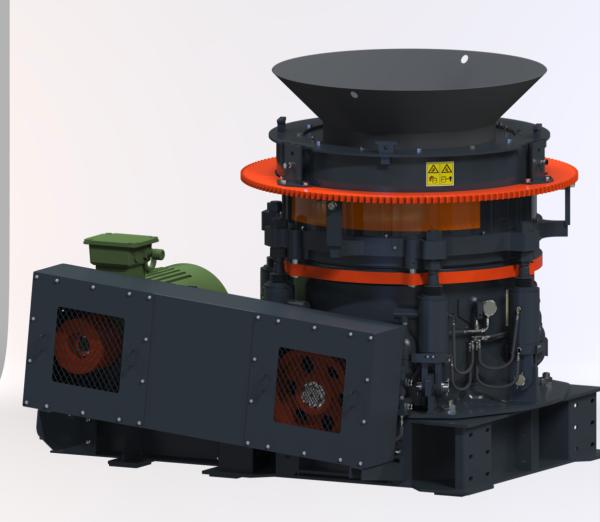

CHP series multi cylinder hydraulic cone crusher is a high-performance hard rock crushing product designed and developed by our company .Compared with similar products, the equipment has the characteristics of large production capacity, large crushing ratio, good particle shape, low energy consumption, high automation, high reliability, simple operation and maintenance, and low use cost. CHP series multi cylinder hydraulic cone crusher can be widely used in medium and fine crushing operations in metallurgy, mining, aggregate, cement and other industries .It can be used to crush river pebbles, granite, basalt, limestone, dolomite and other mines as well as non-ferrous metal mines and ferrous metal mines.

Key Features

1. Layer Compression Crushing Technology

   • Scientific crushing cavity design, large eccentricity, optimal swing frequency, and hydraulic cylinder preloading ensure constant discharge port size, stability, high throughput, and reduced energy consumption.

2. Dual Model Options

   • Standard Model and Short Head Model, each offering multiple cavity types. Cavity replacement is simplified by swapping liners, pulleys, and auxiliary rings.

3. Automation & Monitoring

   • Automatic control system provides overload protection, iron-passing protection, discharge port adjustment, and cavity cleaning. Real-time monitoring of oil temperature, pressure, flow, load, and discharge size ensures reliable operation.

4. Cost Efficiency

   • Low Operating Cost: Durable liners, dynamic pressure-lubricated copper sleeves, and a dual-proof lubrication system minimize maintenance.

   • Low Installation Cost: Integral steel underframe simplifies installation and reduces foundation investment.

5. High Bearing Capacity

   • Reinforced frame, "simply supported beam" spindle structure, and overload protection ensure stable operation in hard rock crushing.

6. Low Noise & Vibration

   • High-precision spiral arc gears and flexible support reduce noise and vibration transmission to the foundation.

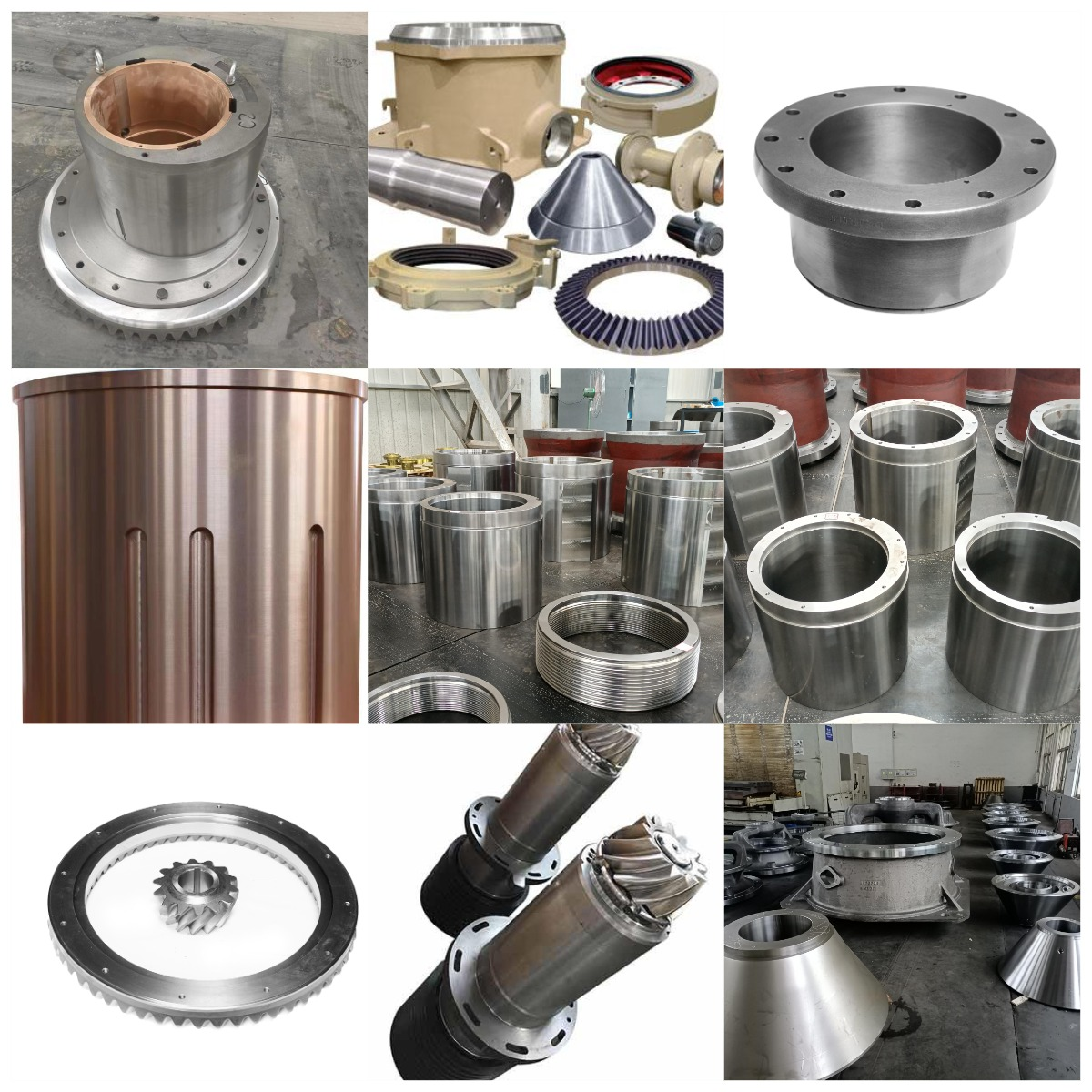

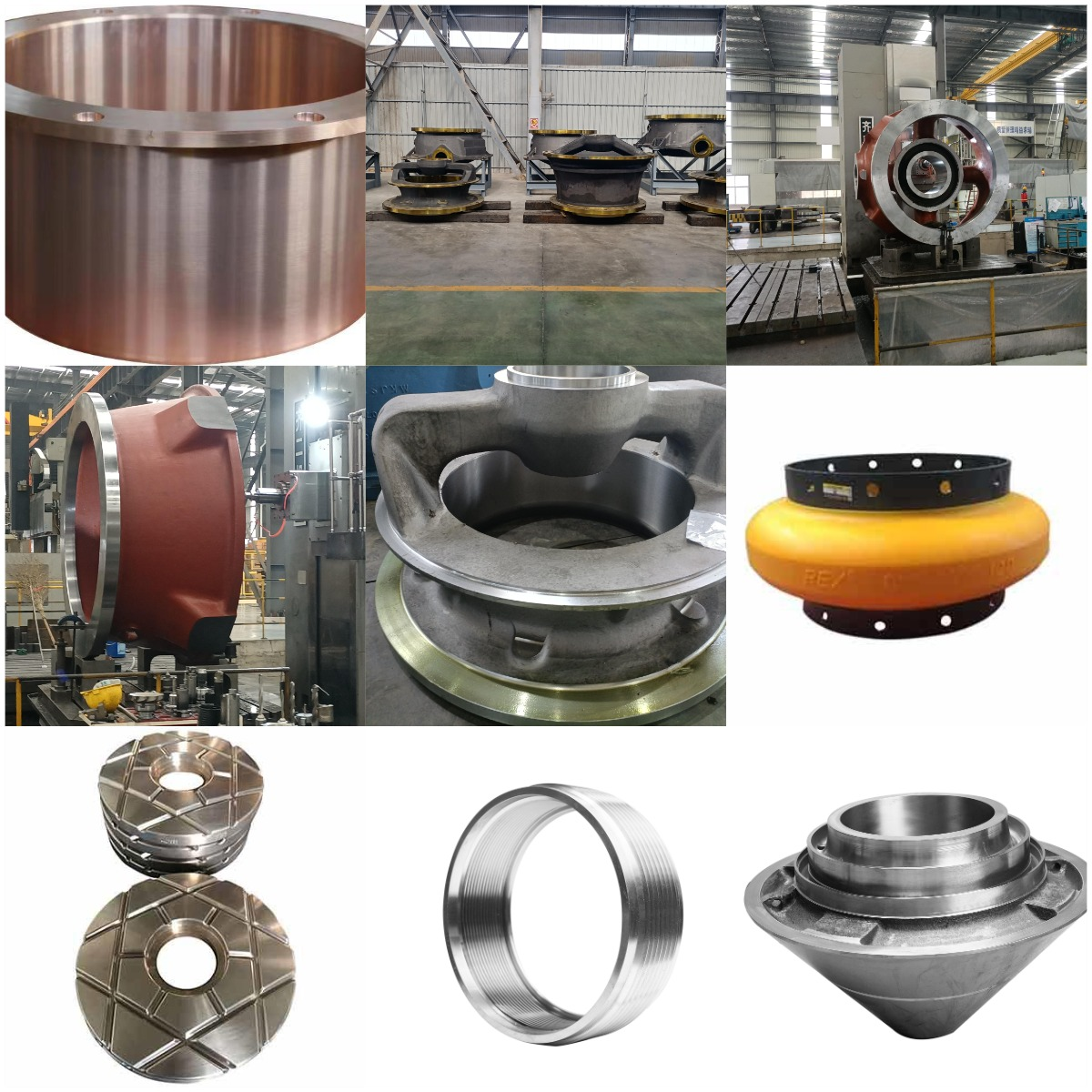

Accessories

Sichuan Xinghe Yongchen Machinery Equipment Co., Ltd. is located in Zigong, a regional central city in southern Sichuan and a key southern hub within the Chengdu-Chongqing Economic Circle. The company traces its origins to 1992 with the establishment of the Rong County Hongguang Conveying Machinery Factory in Sichuan Province. Through persistent dedication, the company underwent a pivotal transformation in 2006, rebranding as Sichuan Zigong Hongguang Conveying Machinery Manufacturing Co., Ltd., and expanded into an integrated structure comprising one main factory, two branches, and five overseas offices. Renowned for superior product quality and performance, its equipment gained widespread acclaim across domestic markets and in Asian and African countries. In 2021, following a merger and reorganization, the company was officially renamed Sichuan Xinghe Yongchen Machinery Equipment Co., Ltd., marking a new chapter in its development.

The company has a registered capital of 25.1 million yuan, occupies an area of 73,000 m², and employs 216 staff members, including 35 engineers and technicians. Its facilities include metalworking, plate welding, assembly, and painting workshops, supported by functional departments such as administration, finance, sales, supply, production, technology, quality inspection, and after-sales services. As a specialized manufacturer of mining system equipment, the company integrates research and development, design, production, and sales into its operations.

The company primarily produces conveying equipment, including general belt conveyors, mining belt conveyors, tubular belt conveyors, curved belt conveyors, bucket elevators, screw conveyors, plate feeders, chain conveyors, and buried scraper conveyors. Additionally, it provides complete crushing and screening systems tailored for mining operations. These products serve industries such as power generation, steel, coal, transportation, water conservancy, chemicals, metallurgy, petroleum, and building materials, with an annual production capacity valued at 300 million yuan.

The company has obtained certifications under the GB/T19001:2016 and ISO 9001:2015 quality management systems and is a member of the China Heavy Machinery Industry Association. It holds multiple utility model patents and has been recognized with honors including the “2022 Zigong Advanced Collective in Industrial Reconstruction”, “Sichuan Sci-tech SMEs”, “Sichuan Innovative SMEs”, and “Sichuan Specialized,Refined, Characteristic, and Innovative Enterprises”.

Since its establishment, the company has adhered to the quality policy of “Quality First, Technology Leadership, Premium Service, Striving for Excellence,” fostering long-term trusted partnerships with clients. Moving forward, Xinghe Yongchen Machinery will continue to pursue innovation-driven growth, resource synergy, and sustainable development. By leveraging national initiatives to upgrade traditional industries and nurture emerging sectors, the company aims to strengthen core competencies, harness new growth drivers, and evolve into a modern mining system equipment manufacturer that embodies contemporary advancements.
