| Categories | Gas Filter Element |
|---|---|
| Brand Name: | OASIS |
| Certification: | ISO9001:2015 ISO14001:2015 |
| Place of Origin: | CHINA |
| MOQ: | 10 Meter/Meters |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 6000 Meter/Meters per Month |
| Delivery Time: | Within 35 days |
| Packaging Details: | Wooden cases or pallet or bundle or container or according to clients' requirements |
| Design Specifications: | SME VIII div.1,GB150,EN13445 |
| Micron Rating: | 0.2-300um |
| Temperature: | High |
| Steel Grade: | ss304, 304L, 316,3 16L |
| Compatibility: | Universal |
| Gasket: | Wool Felt |
| Application: | Gas Filtration |
| Working Life: | More than 3 years |
| Part Number: | 1202846 |
| Quality: | Excellent |
| Filtration Grade: | 50 micron |
| Slot Size: | Min.0.01mm |
| Company Info. |
| Oasis Oil Tools Co., Ltd, |
| View Contact Details |
| Product List |

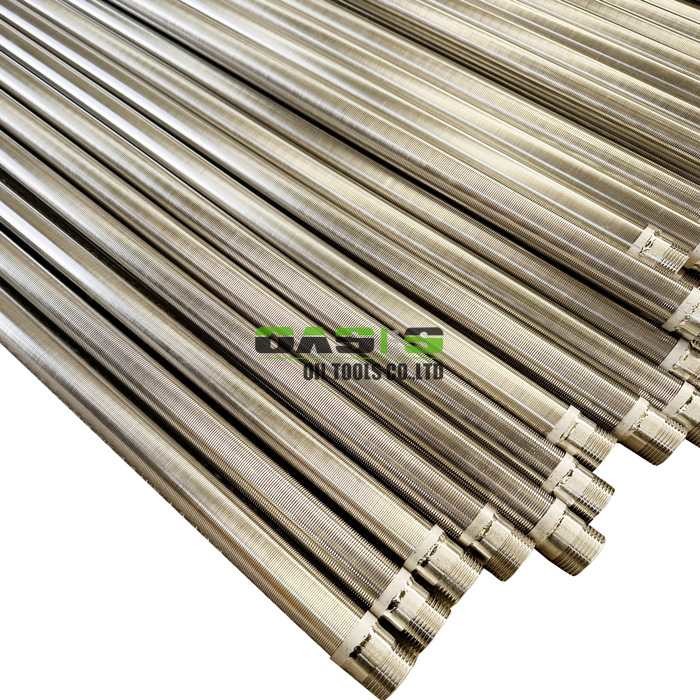

Wire-Wound Filter Element
Premium Construction: Crafted from durable stainless steel 304/316L, our wire-wound filter element consists of "V"-shaped (wedge-wire) stainless steel wires and reinforced support strips, ensuring exceptional strength and longevity.
Outstanding Performance
✔ High open area ratio – Enhances flow efficiency & reduces pressure drop.
✔ Rapid backwashing – Delivers fast cleaning with superior effectiveness.
✔ Robust durability – Resists corrosion, high temperatures, and extreme pressure while maintaining high rigidity & load-bearing capacity.
Precision Filtration
- Filtration accuracy: 25μm–80μm

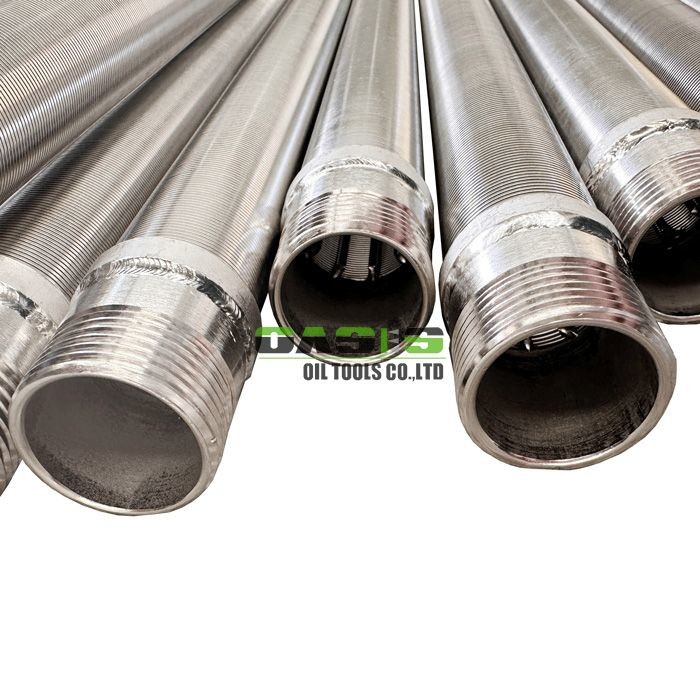

- Connection options: Quick-connect couplings or threaded fittings for flexible installation.
Wide Applications: Ideal for industries such as
- Petrochemical
- Hydraulic & machinery systems
- Water & wastewater treatment
- Food & beverage processing
Engineered for reliability – A cost-effective, long-lasting filtration solution for demanding environments.
Note: Wires, rods and slot sizes can be customized according to customers' requirements.
SIZE (inch) | O.D (mm) | SLOT (inch) | LENGTH (m) | Collapse Strength (psi) | Tensile Weight (ton) | Wire size (mm) | RODS (mm) |
4 | 117 | 0.040 | 3 | 395 | 6 | 2.2*3.0 | 3.8mm/22 |
4 | 114.3 | 0.040 | 3 | 395 | 6 | 2.3*3.0 | 3.8mm/22 |
6 | 168.3 | 0.040 | 3 | 252 | 8 | 2.3*3.5 | 3.8mm/32 |
8 | 219.1 | 0.010 | 3 | 399 | 10.5 | 3.0*5.0 | 3.8mm/48 |
8 | 219.1 | 0.020 | 3 | 370 | 10.5 | 3.0*5.0 | 3.8mm/48 |
8 | 219.1 | 0.040 | 3 | 323 | 10.5 | 3.0*5.0 | 3.8mm/48 |
10 | 273.1 | 0.010 | 3 | 206 | 11 | 3.0*5.0 | 3.8mm/50 |
10 | 273.1 | 0.020 | 3 | 191 | 11 | 3.0*5.0 | 3.8mm/50 |
10 | 273.1 | 0.040 | 3 | 167 | 11 | 3.0*5.0 | 3.8mm/50 |
1. Non-Clogging Design
- The unique V-shaped profile creates continuous slots, ensuring uninterrupted water flow and minimizing blockages.
2. High Flow Efficiency
- Wider open area reduces inlet velocity, preventing sand intrusion under high pressure.
- Enhances water yield and extends well service life.
3. Superior Durability
- Fully welded construction (wires + support rods) ensures maximum strength and long-term reliability.
4. Exceptional Structural Strength
- Longitudinal support rods and continuous slots provide high pressure resistance for demanding applications.
5. Customizable Solutions
- Available in various specifications and end connections (tailored to your requirements).
✔ Optimized for sand control – Ideal for water wells, filtration, and industrial separation.
✔ Heavy-duty performance – Built to withstand harsh environments.
✔ Flexible configurations – Adapts to your specific project needs.
