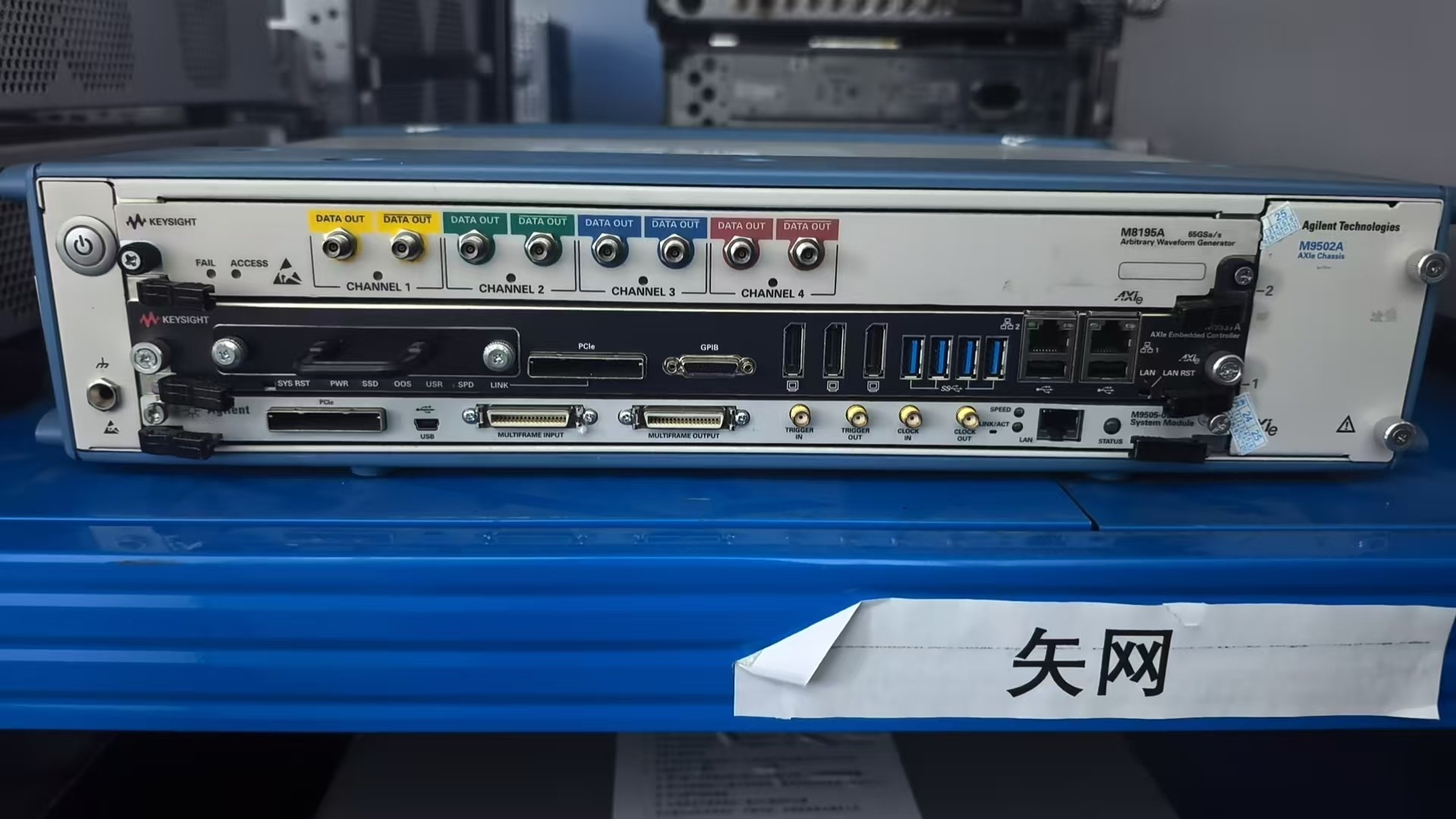

Keysight (Agilent) M8195A 65 GSa/S Arbitrary Waveform Generator Up To 4 Channels In A 1-Slot AXIe Module

Keysight (Agilent) M8195A 65 GSa/S Arbitrary Waveform Generator Up To 4 Channels In A 1-Slot AXIe Module

Keysight (Agilent) M8195A 65 GSa/S Arbitrary Waveform Generator Up To 4 Channels In A 1-Slot AXIe Module
Keysight (Agilent) M8195A 65 GSa/S Arbitrary Waveform Generator Up To 4 Channels In A 1-Slot AXIe Module
Categories RF Signal Generator
Brand Name: Agilent
Model Number: M8195A
Certification: CE
Place of Origin: Malaysia
MOQ: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Packaging Details: Carton
Product name: RF Signal Generator
Frequency: 9 kHz to 3 GHz
Form Factor: Benchtop
Average Noise Level: -148 dBm - -130 dBm
Condition: Pre-Owned
Functions: Tested, in Full Working Conditions
Contact Now
Company Info.
Shenzhen Meigaolan Electronic Instrument Co. Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Keysight (Agilent) M8195A 65 GSa/S Arbitrary Waveform Generator Up To 4 Channels In A 1-Slot AXIe Module

Keysight (Agilent) M8195A 65 GSa/s Arbitrary Waveform Generator

Description of Keysight Agilent M8195A

The Keysight M8195A arbitrary waveform generator (AWG) provides up to 65 GSa/s, 25 GHz bandwidth, 8 bits vertical resolution, and up to 4 channels in a 1-slot AXIe module - simultaneously. As devices and interfaces become faster and more complex, the M8195A AWG gives you the versatility to create the signals you need for digital applications, advanced research, wideband radar, satcom, and optical communications. Advanced 3-level sequencing allows even longer signal scenarios. An external dynamic control is available for the case of a M8197A module synchronizing several M8195A modules. The M8195A AWG features a trigger input with a delay accuracy of ±20 ps in conjunction with a M8197A multi-channel synchronization module. In conjunction with the N5990A software option 151 & 153 the M8195A provides a sink test solution for HDMI and MHL. The M8195A AWG can also be controlled by the M8070A Bit Error Ratio Test system software with the M8085A software plug-in to create MIPI C-PHY™ and D-PHY™ standard conformant test signals. The M8195A AWG combined with the 81195A optical modulation generator software introduces an innovative real-time approach which speeds up your test by a factor of up to 100. It allows signal and impairment generation in real time. FIR filters and other DSP functions are used for pulse-shaping and changing optical stress conditions such as polarization mode dispersion (PMD) or phase noise. Go where you have never been able to test before: with real-time mode, sequencing and deep memory - explore your possibilities. Additional Information: The M8195A is also available in a system bundle M8195S, which is dynamically configured depending on the required number of channels. In addition to the module itself, an AXIe chassis, embedded controller or external PC connectivity will automatically be added and the system is shipped pre-configured.
List of Options for M8195A
001Arbitrary Waveform Generator, 1 Channel, 65 GSa/s
002Arbitrary Waveform Generator, 2 Channels, 65 GSa/s
004Arbitrary Waveform Generator, 4 Channels, 65 GSa/s
16GUpgrade to 16 GSa Memory
1A7Calibration + Uncertainties + Guardbanding (Not Accredited)
1NPDUT Control Interface, Network/Floating, Perpetual License
1TPDUT Control Interface, Transportable, Perpetual License
810Matched Cable Pair for M8195A AWG, 2.92 mm
BU1Bundle consisting of one M9505A 5-slot AXIe Chassis with USB Option and one M9537A AXIe Embedded PC Controller
BU2Bundle consisting of one M9502A 2-slot AXIe Chassis with USB Option
BU3Bundle consisting of one M9502A 2-slot AXIe Chassis with USB Option and one M9537A AXIe Embedded PC Controller
FSWFast Switching
M9048APCIe Desktop Adapter: Gen 2, x8, clock isolation
N6171AMATLAB Software
N6171A-M01MATLAB-Basic Package, individual license - node-locked
N6171A-M02MATLAB-Standard Package, individual license - node-locked
N6171A-M03MATLAB-Advanced Package, individual license - node-locked
ONPSystem Software for M8000 Series of BER Test Solutions, Network/Floating, Perpetual License
OSPOptical Signal Properties, transportable, perpetual License
OTPSystem Software for M8000 Series of BER Test Solutions, Transportable, Perpetual License
RSPReal-time Signal Processing, transportable, perpetual License
SCDStandard Calibration Document
SEQSequencer
U12Arbitrary Waveform Generator Upgrade of M8195A-R12 or -E52 to Revision 2
U14Arbitrary Waveform Generator Upgrade of M8195A-R14 or -E54 to Revision 2
Y1202APCIe cable: x8, 2.0m
Z54Calibration Certificate for Z540

Key Applications

As devices and interfaces become faster and more complex, the M8195A AWG gives you the versatility to create the signals you need for digital applications, optical and electrical communication, advanced research, wideband radar and satcom.

  • Coherent optical – a single M8195A module c an generate 2 independent I/Q baseband signals (dual polarization = 4 channels) at up to 32 GBaud and beyond
  • Multi-level / Multi-channel digital signals - generate NRZ, PAM4, PAM8, etc. signals at up to 32 GBaud. In addition, protocols such as HDMITM, C-PHYTM and D-PHYTM are supported. Embed/De-embed channels, add Jitter, ISI, noise and other distortions
  • Physics, chemistry and electronics research – generate any mathematically defined arbitrary waveforms, ultra-short yet precise pulses and extremely wideband chirps
  • Wideband RF/µW - generate extremely wideband RF signals with an instantaneous bandwidth of DC to 25 GHz for aerospace/defense/communication applications
  • Random interference (RI) source to application, requires M8070A

FAQ:

1.Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question ?

You can contact us online or leave us messages below .
