3.5 inch 320x480 Portrait MIPI TFT LCD Module with PCAP Touch

Categories TFT LCD Display
Brand Name: AISON
Model Number: Z035HV19-CT
Certification: ISO9001 / ISO14000/ROHS
Place of Origin: Guangdong,China
MOQ: 1
Price: Negotiable
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 200k/month
Delivery Time: 7 working days
Packaging Details: Carton/Blister
Name: 3.5 inch Portrait MIPI TFT LCD Module
Resolution: 320x480
Outline dimension: 54.86*83.43*4.1mm
Active area: 48.96 x 73.44mm
Interface: MIPI
Brightness: 200 cd/m2
Display mode: TFT,Normally White
Driver IC: ST7365P
Operating temperatures: -20 to 70 degree
Storage temperatures: -30 to 80 degree
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

3.5 inch 320x480 Portrait MIPI TFT LCD Module with PCAP Touch

3.5 inch Portrait 320x480 IPS TFT LCD Module MCU/RGB Interface


Display General Description

Z035HV19-CT is a 3.5-inch TFT LCD module with an TN panel with Capacitive touch screen. This module is integrated with the ST7365P driver IC, supporting MIPI interfaces,with a typical brightness of 200 nits and a contrast ratio of 500:1.


This 3.5 inch 320x480 display MIPI TFT LCD, providing a clear and crisp visual experience for various applications.


The 3.5'' IPS panel is with a typical range of Left: 65°, Right: 55°, Up: 65°, and Down: 65°,IPS viewing is optional. The Z035HV19-CT can operate in temperatures ranging from -20℃ to +70℃, and its storage temperature range is from -30℃ to +80℃.

General Data

Product Name3.5 inch Portrait LCD Module
Number of Pixel320x480
InterfaceMIPI
Luminance(cd/m2)200 cd/m2
Active area48.96 x 73.44mm
LCM (W x H x D)54.86*83.43*4.1mm
Viewing Direction(eye)12 o'clock
Operating temperatures-20 to 70 degree
Storage temperatures-30 to 80 degree

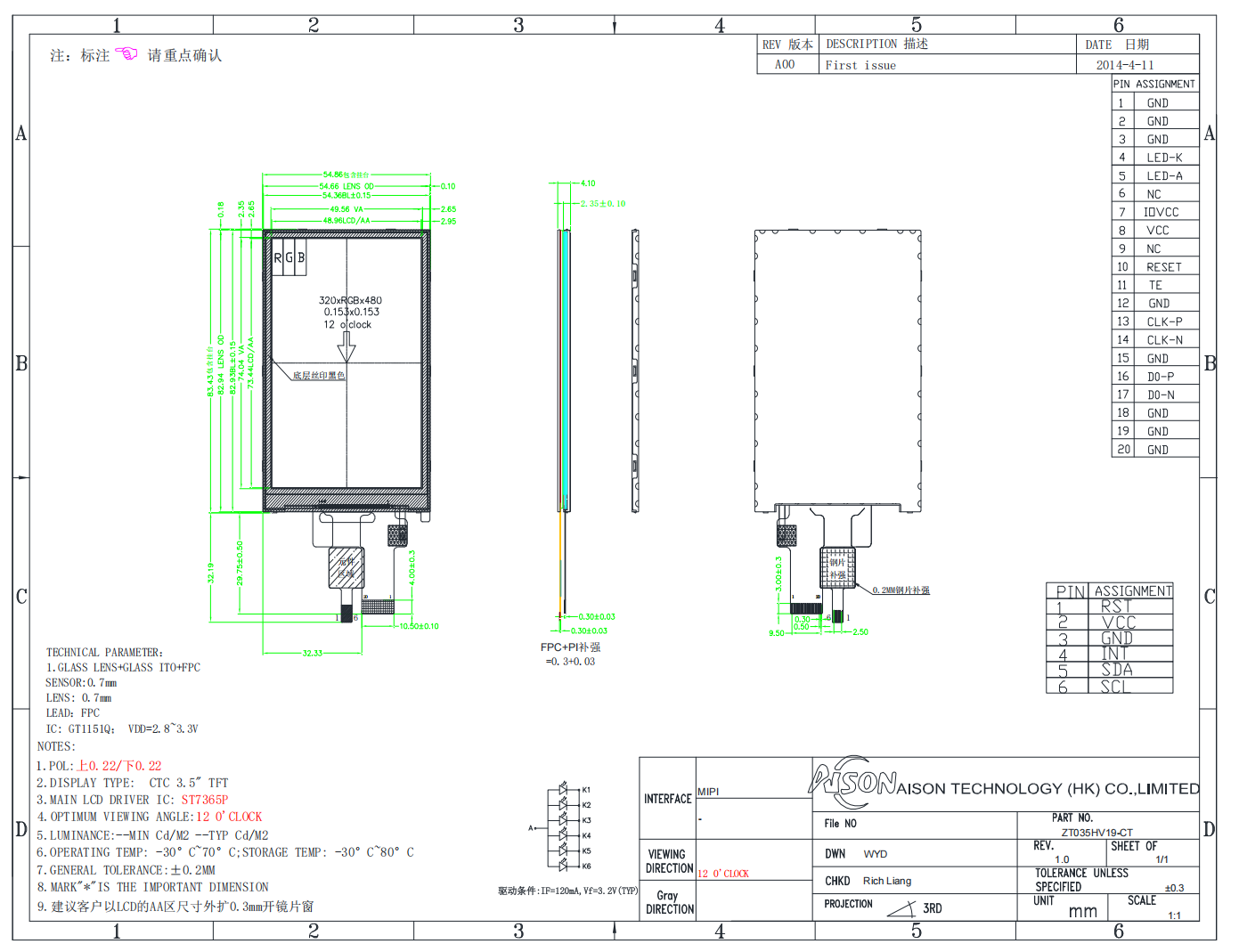

Drawing


TFT Applications

Overall, Z035HV19-CT is a versatile and high-performance display screen that is suitable for a wide range of applications, including industrial control systems, home automation, and portable electronics.
