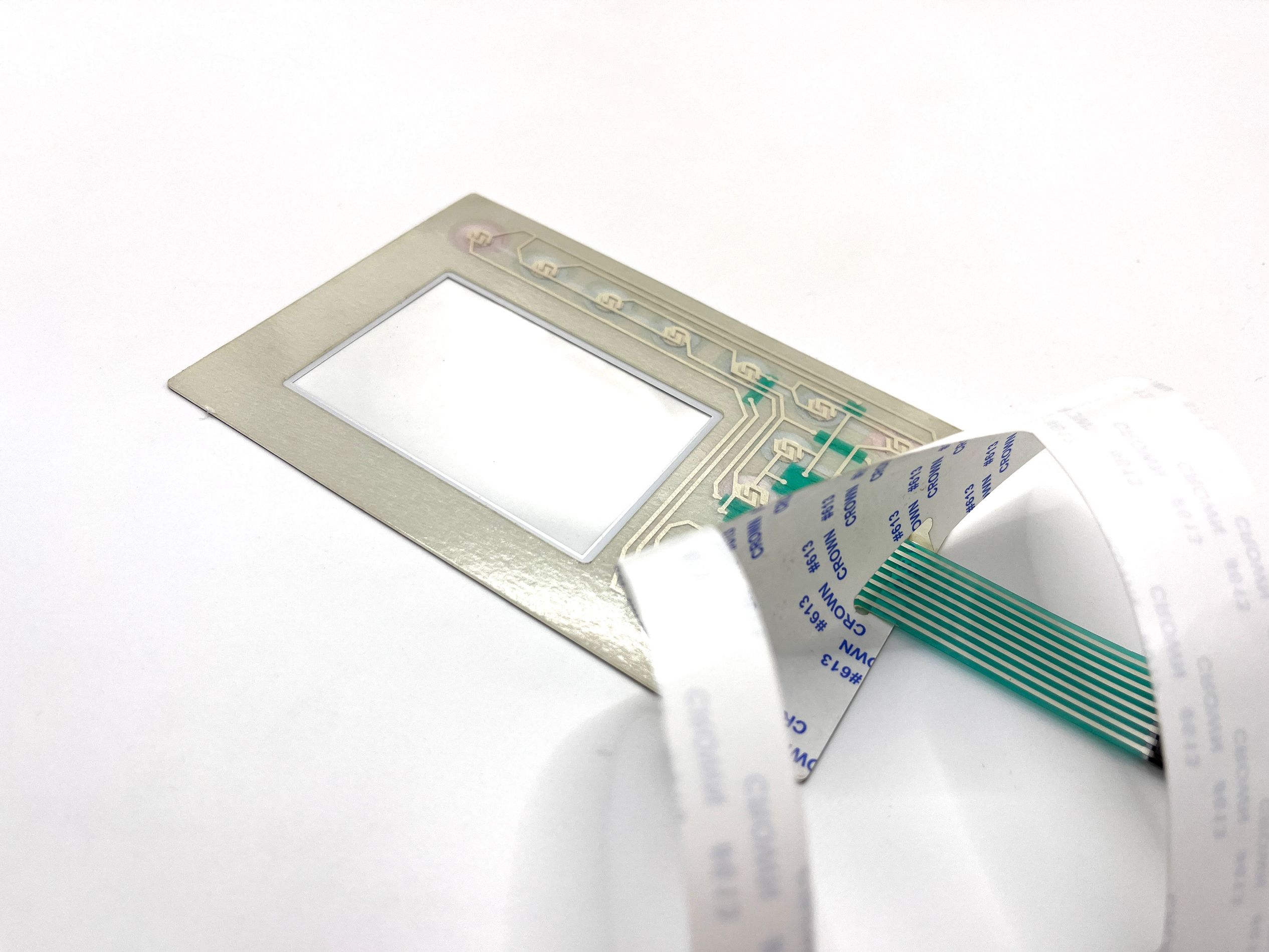

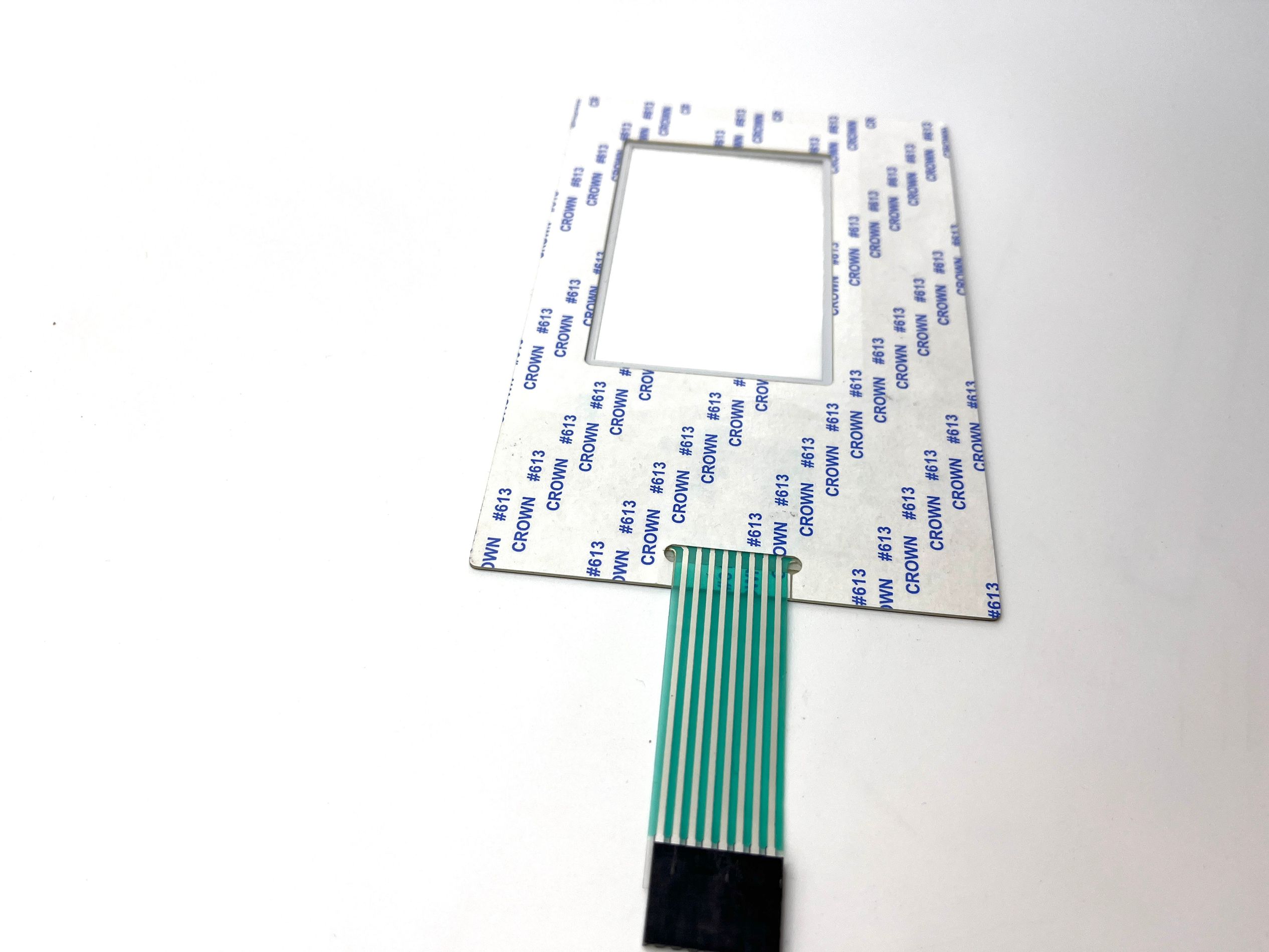

OEM Customized Design Push Button Membrane Switch With Glossy Surface

OEM Customized Design Push Button Membrane Switch With Glossy Surface

Key Features

1. Momentary Action: Push button membrane switches are typically designed to be momentary action switches, meaning they are open until pressed, at which point they close the circuit to activate a function.
2. Customizable Design: These switches can be customized in terms of size, shape, and graphic overlays, allowing for a tailored user interface that meets specific design requirements.
3. Durability: Membrane switches are known for their robustness and can withstand harsh environmental conditions. They are often resistant to moisture, chemicals, and temperature variations, making them suitable for demanding applications.
4. Backlighting Options: Many push button membrane switches can be equipped with backlighting features, such as LEDs or electroluminescent (EL) technology, enhancing visibility in low-light conditions.

Manufacturing Considerations

• Materials: The construction of push button membrane switches typically involves layers of polyester or polycarbonate for the overlay, along with printed circuit layers made from conductive inks or copper.
• Production Techniques: Manufacturers like CSI Keyboards and Hoffmann + Krippner offer advanced manufacturing capabilities, including screen printing and embossing, to create high-quality membrane switches tailored to customer specifications .

Applications

Push button membrane switches are widely used in:

• Consumer Electronics: Such as remote controls and appliances.
• Medical Devices: For user interfaces in diagnostic and monitoring equipment.
• Industrial Equipment: In control panels and machinery where space is limited and durability is essential.

Membrane Switch Specification:

1)Material---for front or face overlay

Polyester

1.Highly versatile for embossing 2.Highly resistant to chemicals

3.Better durability 4.For internal and external use

Polycarbonate

1.Wide range of surface finishes and thicknesses

2.More cost-effective 3.For internal and external use

2) Embossing--rim embossing pillow embossing dim embpssing

Graphic overlays can be embossed in order to insert domes (tactile), leave space for mechanical keys and provide tactile indications Pedestal embossing

3)Windows ----for display function

1. print colors windows

2.transparent finishes windows

4)Keys/buttons

Tactile keys---with metal dome or poly dome

Non-tactile--silver printing spot

5) Embeded LEDs-

miniature LED, LED colors:white, yellow, orange, green, red, etc.

6)Cable

is an extension of the printed circuit and is used to communicate with your device

7)Types of connector

1.Zero insertion force (ZIF) connector; 2.Female connector; 3.male connector

8) EMI / RFI / ESD Shielding

use an aluminum foil shielding / a clear ITO electrical conductive polyester

9) Adhesive ----mostly used are 3M-double-side glue

10)Backplate---in aluminum, polycarbonate or acrylic

Membrane switch Performance Index:

About Taida.pdf

Our Services :

1 Reply your inquiry within 24 working hours

2 Customize design is available ,OEM and ODM are welcome

3 Experienced Staffs answer your all question in professional and fluent English

4 Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staffs

5 Good service ,High quality ,test all goods and short lead time supply

More Photos show :

Taida is a factory and was founded in the 2010 year in China, which focus on the professional design and manufacture of Membrane Switch and Graphic overlays (including different many kinds membrane switch and graphic overlay ,such like LED ,FPC circuit ,waterproof and tactile ,PMMA ,protective film and so on )manufacturers,

Experience:

Taida and engineers have Highly over 15 years experienced on Membrane switch and graphic overlay designs, 500+ customers from worldwide such like USA,UK ,Germany and others , 1000+ new designs per year

Factory Strength and Production Capacity:

Over 2000 square meters of modern plant, spacious and bright clean workshop; more than 25 full Automatic and Semi-Automatic printing machine and other professional Automation equipment,such like testing machine ,UV machine and so on , Taida’ capability has reached 300, 000PCS/month in a very short period since company established.

Quality Control and Ensure :

Taida has got certification of ISO9001: 2000, and also the accreditation for RoHS ,REACH ,UL SGS to meet customer′s requirements.All workers are fully trained before going to production line.and Ensure 100% testing and inspecting before shipping .

Speed & Efficiency:

Concept to Design: < 3 business days

Goods lead time : 12-15 days

Rapid Prototyping: 4-7 days

Overseas Manufacturing

Utilized for larger production volumes and to ensure we can offer the most competitive pricing and Fast lead time to our customers
