| Categories | High Frequency Transformer |
|---|---|
| Type: | power transformer, EF Series |
| Material: | Copper |
| Frequency: | 60Hz, 1-100KHz |
| Shape: | ROUND |
| Toplogy: | Flyback |
| Winding Material: | Copper |
| Place of Origin: | Guangdong, China |

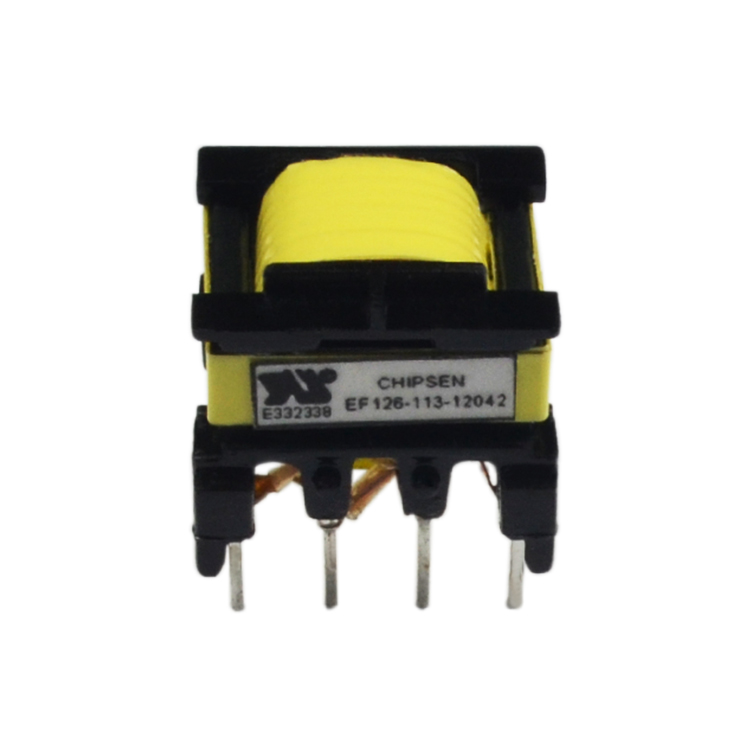

| Brand Name: | CHIPSEN |
| Model Number: | EF126 |
| application: | Electronic |
| Phase: | Single Phase |
| Coil Structure: | TOROIDAL |
| Coil Number: | AUTOTRANSFORMER |
| Input Voltage: | 220V, 110V, 240V, 230V, 120V |
| Output Voltage: | 110V, 220V, 48V, 12V , 24V, 380V, 36V, 9V, 440V, 480V |
| Product name: | Power Transformer |
| Certification: | UL/IS09001/IS014001/RoHS/Reach |
| Application: | Industrial Power Supplies |
| Standard: | IEC60076 |
| MOQ: | 1000 Pcs |
| Advantage: | High-quality |
| Package: | Boxes/Cartons |
| Input/Output voltage: | Customized |
| MOQ: | 1000 pieces |
| Price: | CN¥12.20/pieces 1000-2999 pieces |
 | Model No. | EF126 |
| Working Frequency Range | 1KHz-1MHz | |
| Output Power | 1W-3000W | |
| Output Voltage | 0.5V-15000V | |
| Output Current | 0.01A-100A | |
| Storage Temperature | +5℃ to +95℃ | |
| Working Temperature | -40℃ to +125℃ | |
| Storage Humidity | 30% to 70% | |
| Certifications | ISO9001:2015, ISO14001:2015, IATF16949, UL/cUL, ROHS, REACH, CQC | |
| Designing Information | operating frequency | |
| circuit topology | ||
| input voltage range | ||
| output power (V/A) | ||
| mounting dimensions | ||
| safety requirements | ||
| product application |
|
